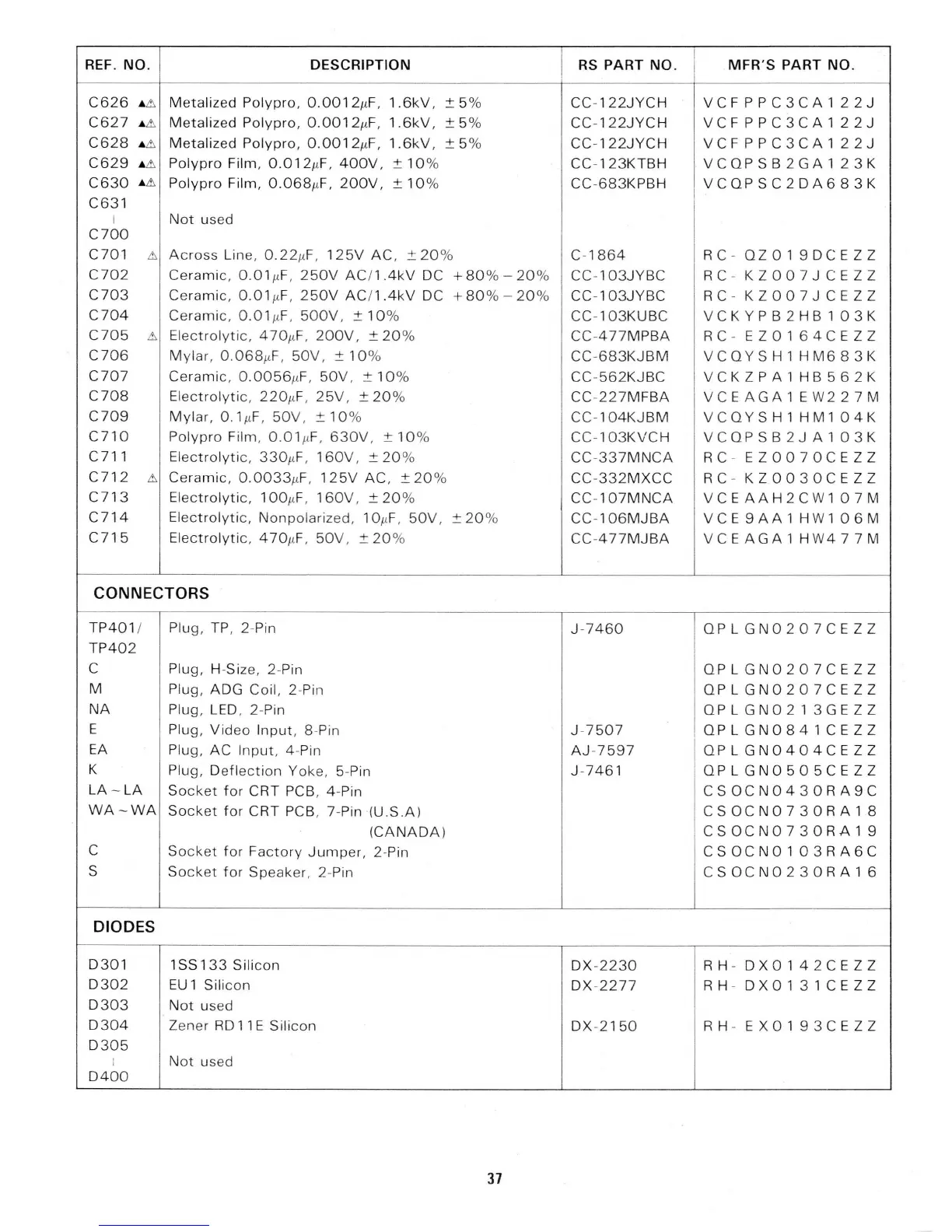

REF. NO . DESCRIPTION RS PART NO. MFR 'S PART NO .
C626 .& & M eta lized Polypro, 0.0012µF, 1. 6kV,
±5%
CC - 122JYCH
VCFPPC3CA122J
C627 .& & Metalized Polypro , 0.0012µF ,
1.
6kV ,
±5 %
CC - 122JYCH VCFPPC3CA122J
C628 .& & M eta lized Polypro, 0.0012µF ,
1.
6kV ,
±5 %
CC - 122JYCH VCFPPC3CA122J
C629 .& & Pol ypro Film, 0.012µF, 400V,
± 10 % CC - 123KTBH VCOPSB2GA123K
C630
.& &
Pol ypro Fi lm , 0 . 068µF, 200V,
± 10 % CC- 683KPBH VCOPSC2DA683K
C631
I
Not used
C700
C701
& Across Line, 0.22 µF, 125V AC , ± 20 % C- 1864 RC - OZ 0 1 9 DC E Z Z
C702
Ceramic , 0 .01µF, 250V AC/1.4kV DC
+
80 %- 20 % CC- 103JYBC RC - KZ007JCEZZ
C703
Ceramic , 0 .01 µF, 2 50V AC / 1.4kV DC
+80 %- 20 % CC- 103JYBC RC - KZ007JCEZZ
C704
Ceramic , 0.01 µF, 500V , ± 10 %
CC -
103KUBC V C KYPB 2 HB103K
C705
& Electrolyt ic, 4 70 µF, 200V, ± 20 %
CC -
477MPBA RC - EZ01 6 4CEZZ
C706 Mylar, 0 . 068 µF, 50V , ± 10 %
CC -
683KJBM
V C O Y SH1HM683K
C707
Ceramic , 0.0056 µF, 50V , ± 10 %
CC -
562KJBC VCKZPA1HB562K
C708
El ectrol y tic , 220 µF, 25V , ± 20 %
CC -
227MFBA V C EAGA1E W 227M
C709
Mylar , 0.1 µ. F, 50 V , ± 10 %
CC -
104KJBM V C OYSH1HM104K
C710
Po l ypro Film, 0.01 µF, 630V , ± 10 %
CC -
103KVCH VCOPSB2JA103K
c 711
Electrolyti c, 330 ~ t F , 160V , ± 20 %
CC-33
7MNCA RC - EZ0070CEZZ
C712
& Ceramic , 0 . 0033 µF, 125V AC , ± 20 %
CC -
332MXCC RC - KZ0030CEZZ
C713
Electrolytic , 1 OO µF, 1 60V , ± 20 %
CC -
107MNCA VCEAAH2C W 107M
C714 Electrolyti c, Nonp olarized, 1 OµF, 50V ,
±
20 % CC - 106MJBA VCE9AA1HW106M
C715
Electrolyti c, 470 µF, 50 V, ± 20 %
CC -
477MJBA VCEAGA1HW477M
CONNECTORS
TP401 / Plug, TP , 2-Pin
J-
7460
OPLGN0207CEZZ
TP402
c
Plug, H-Size, 2-Pin
QPLGN0207CEZZ
M
Plug, ADG Coil, 2-Pin
QPLGN0207CEZZ
NA
Plug, LED , 2-Pin
OPLGN0213GEZZ
E
Plug, Video Input , 8-Pin
J-
7507 QPLGN0841CEZZ
EA
Plug, AC Input , 4-Pin
AJ - 7597
[ oPLGN0404CEZZ
K
Plug, Deflection Yoke , 5-Pin J- 7461 QPLGN0505CEZZ
LA - LA
Socket for CR T PCB , 4-Pin CSOCN0430RA9C
WA - WA
Socket for CRT PCB , 7-Pin (U .S. A) CSOCN0730RA18
(CANADA)
CSOCN0730RA19
c
Socket for Factory Jumper , 2-Pin CSOCN0103RA6C
s
Socket for Speaker, 2-Pin CSOCN0230RA16
DIODES
D301
1SS133 Silicon
OX - 2230
RH -
OX0142CEZZ
0302
EU 1 Silicon
OX -
2277 RH -
OX0131CEZZ
D303
Not used
D304
Zener RD 11 E Silicon
DX - 2150
RH -
EX0193CEZZ
0305
I
Not used
