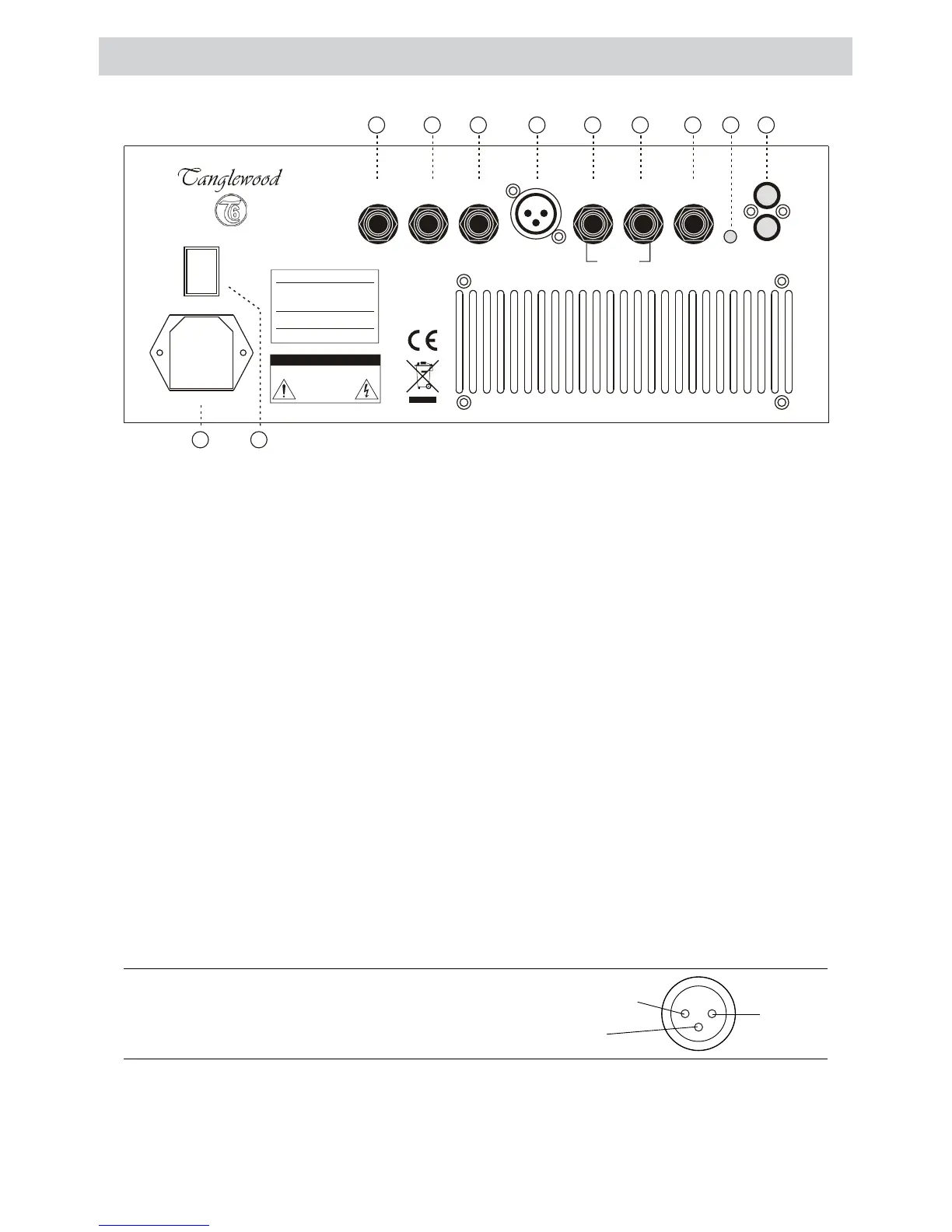

BACK PANEL DESCRIPTION
21. AUX IN: Auxiliary input jack “Stereo/RCA”.
Connect external sources like CD.
22. MP3: MP3 input jack “3.5mm”.
23. TUNER: Connect tuner “6.35mm”.
24. SEND: Sender of external effect loop “6.35mm”.
25. RETURN: Return of external effect loop “6.35mm”.
26. DI-OUT: Balanced output of pre-amp. Connect mixer “XLR”.
27. LINE OUT: Signal output “6.35mm”.
28. PHONES: Headphone output jack “6.35mm”.
Warning: Before using headphones, make sure the volume is low.
Inserting or removing the headphones in high volume will make noise that
may cause harm to ears.
29. FOOTSWITCH: Footswitch control jack, for connecting FS-1, and
controlling effect channel.
30. POWER: Power switch. Power should be off when you are not using the
amplifier. Please turn off the power before removing the plug. Make sure
the master volume is on minimum before turning on/off power.
28. AC INPUT: AC input jack.
Use the plug conforming to local voltage.
Please refer to rear panel label or users manual for suitable AC input.
AMPLIFIER UNDERSIDE
The T6 is fitted with a universal 35mm Recessed Speaker Pole Socket to fit any
industry standard tripod speaker stand. Please ensure any speaker stand chosen
to use with the T6 is rated to safely accommodate over 13kg in weight value.
FOOTSWITCH PHONES LINE OUT
DI OUT
RETURN
SEND
TUNER
AUX INBALANCED
EFF.LOOP
C A U T I O N
RISK OF ELECTRIC SHOCK DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK ,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PART S INSIDE.
REFER SERVIC ING TO QUALIFIE D
SERVIC E PERSONNEL .
POWER
AC INPUT
