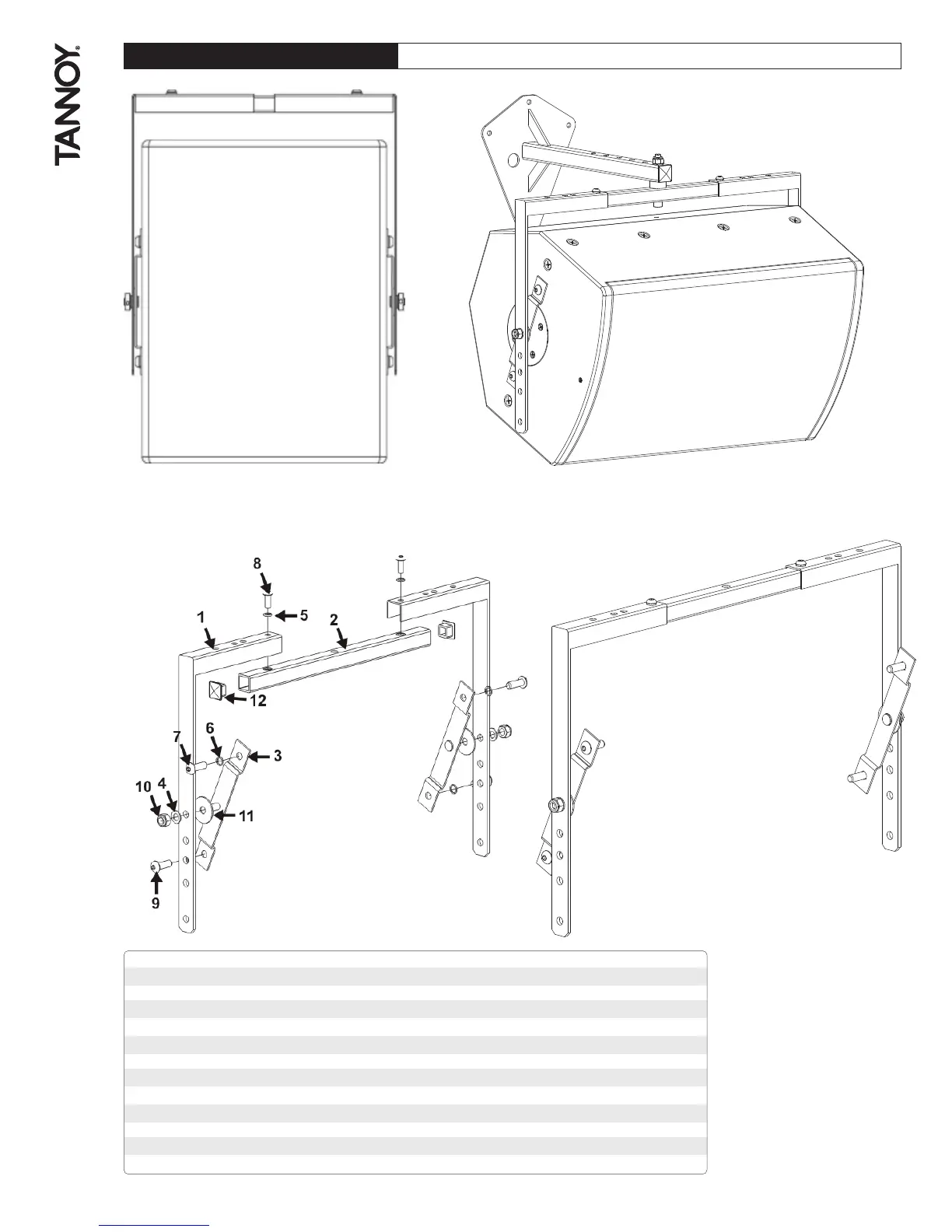

Use the table of parts along with the assembly drawing (Figure 3.) to assemble the VMY.
Figure 4 shows the VMY assembled.
Fig.1 Fig.2
Number on Assembly View (Fig 3.) Description Quantity
1 Hanging Bracket 2
2 Cross Member 1
3 Pivot Stud 2
4 M10 Plain Washer 2
5 M8 Spring Washer 2
6 M10 Spring Washer 4
7 M10 x 30mm Screw 2
8 M8 x 20mm Screw 2
9 M10 x 30mm Screw 2
10 M10 Nyloc Nut 2
11 Friction Washer 2
12 30mm Square Blank Plug 2
Fig.3 Fig.4
