12.4 SECUR ET – VEB Eyebolt
The Tannoy V12HP loudspeaker can be flown
with high quality VEB M10 eyebolts with collar to
BS4278:1984. The loudspeakers are equipped
with internal steel braces, which also double as
the flying points, and accept VEB M10 eyebolts.
To install the VEB M10 eyebolts remove the
original M10 counter sunk screws from the
locations you wish to install the VEB M10 eyebolts.
Then replace these counter sunk M10 screws with
the VEB M10 eyebolts. The M10 insert on the rear
of the cabinet also accepts a VEB M10 eyebolt
and should only be used for tilting the
loudspeaker to the desired angle.
Important:
It is imperative for safety reasons that
two eyebolts linked to two independently fixed
straps are used per cabinet. VEB eyebolts should
be installed into the relative sides of the cabinet,
and should NEVER be installed on the top of the
cabinet. Never suspend one enclosure from
another to form a line array or cluster using these
fittings.
The correct method is shown in figure 2.
Never attempt to use formed eyebolts i.e. formed
from a steel rod and bent into an eye.
Only use the outer fixing points on the top and
sides of the V12HP cabinet for fixing eyebolts. The
inner two fixing points on each side of the cabinet
are for dedicated bracketry (VMY) only.

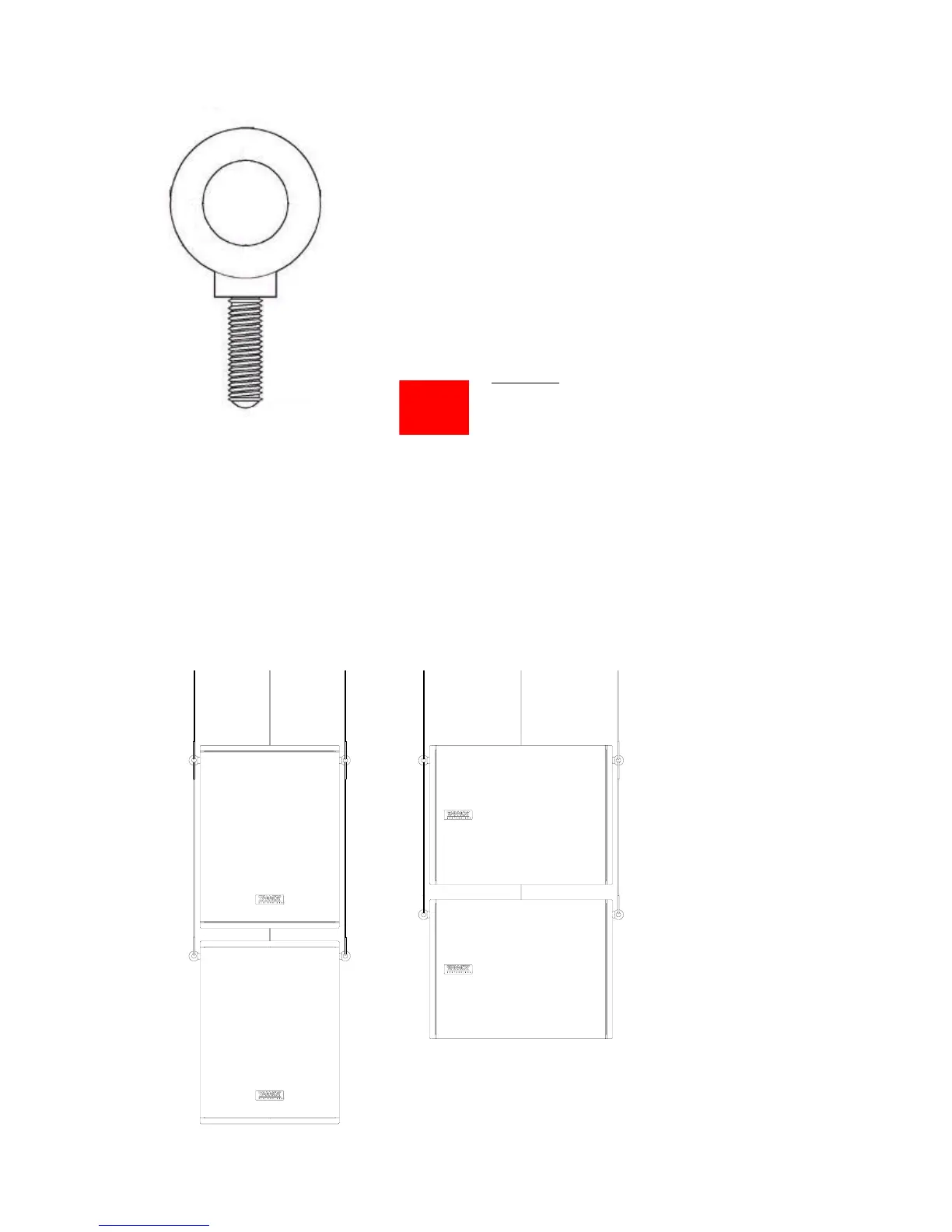

Fig. 1
Fig. 2
