Small alterations to loudspeaker positions can have the effect of minimising problematic combing frequencies.
Arrays should be constructed so that the individual coverage patters of each loudspeaker combine with
minimal overlap. The design of the VXP cabinet greatly simplies the creation of effective arrays, allowing
seamless wide horizontal coverage using two loudspeakers without the need for tedious experimentation.
By placing the VXP cabinets with the 30 degree angled rear panels together, minimal dispersion pattern
overlap is achieved, guaranteeing an extraordinarily smooth transition. In many applications the 90 or 75
degree dispersion pattern may be sufcient in the horizontal plane. It is also possible to stack the cabinets
vertically using the above method (in a central cluster for example), where greater vertical dispersion is required.

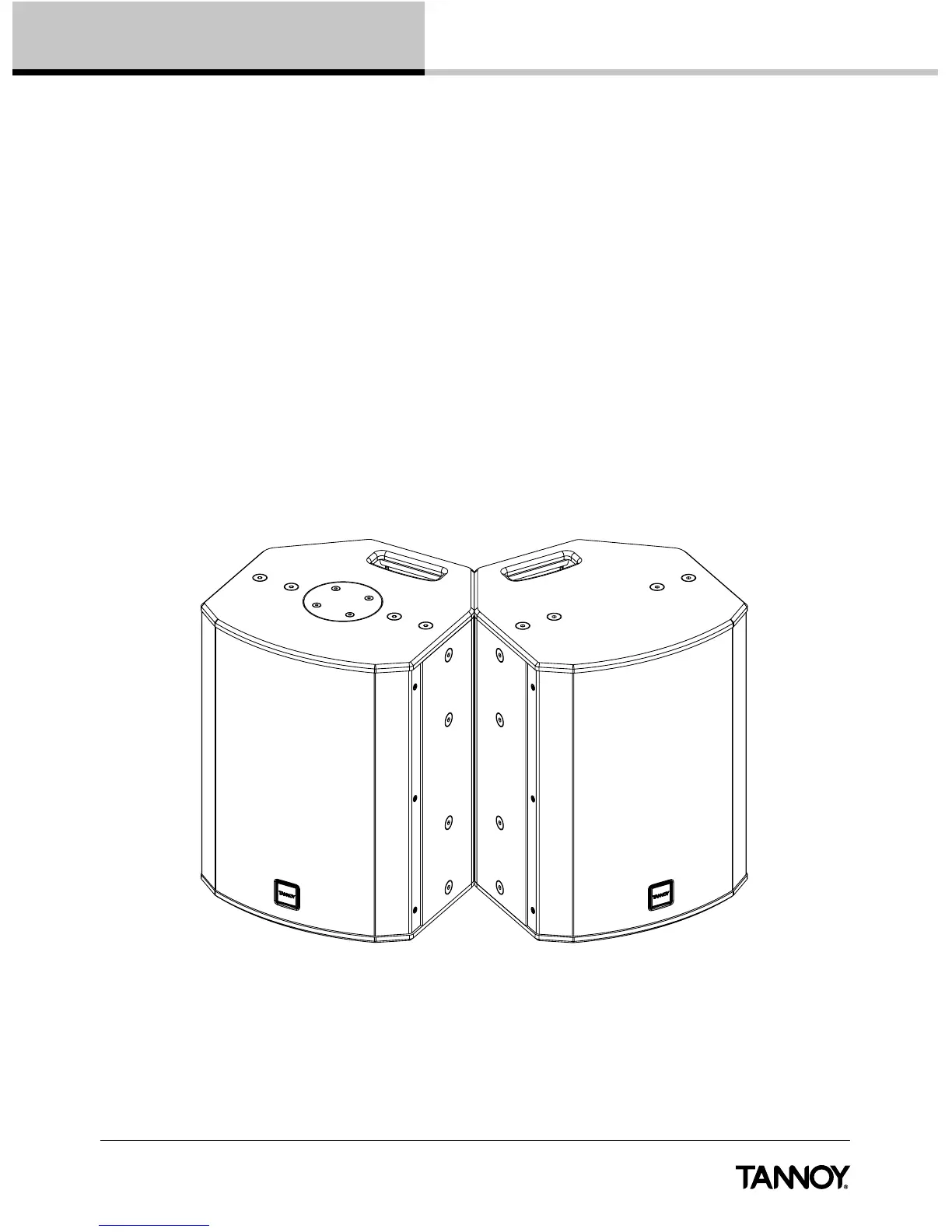

As shown in the above diagram, one of the VXP cabinets is inverted to allow the optimum splay angle to be
achieved. The grille can be simply removed from this cabinet and be replaced for matching orientation. The
grille is held in position by the two xing screws on the top and bottom lips of the cabinet.
