Tannoy VXP SERIES - Page 14

14
VXP Series Operation Manual rev 1.0.2

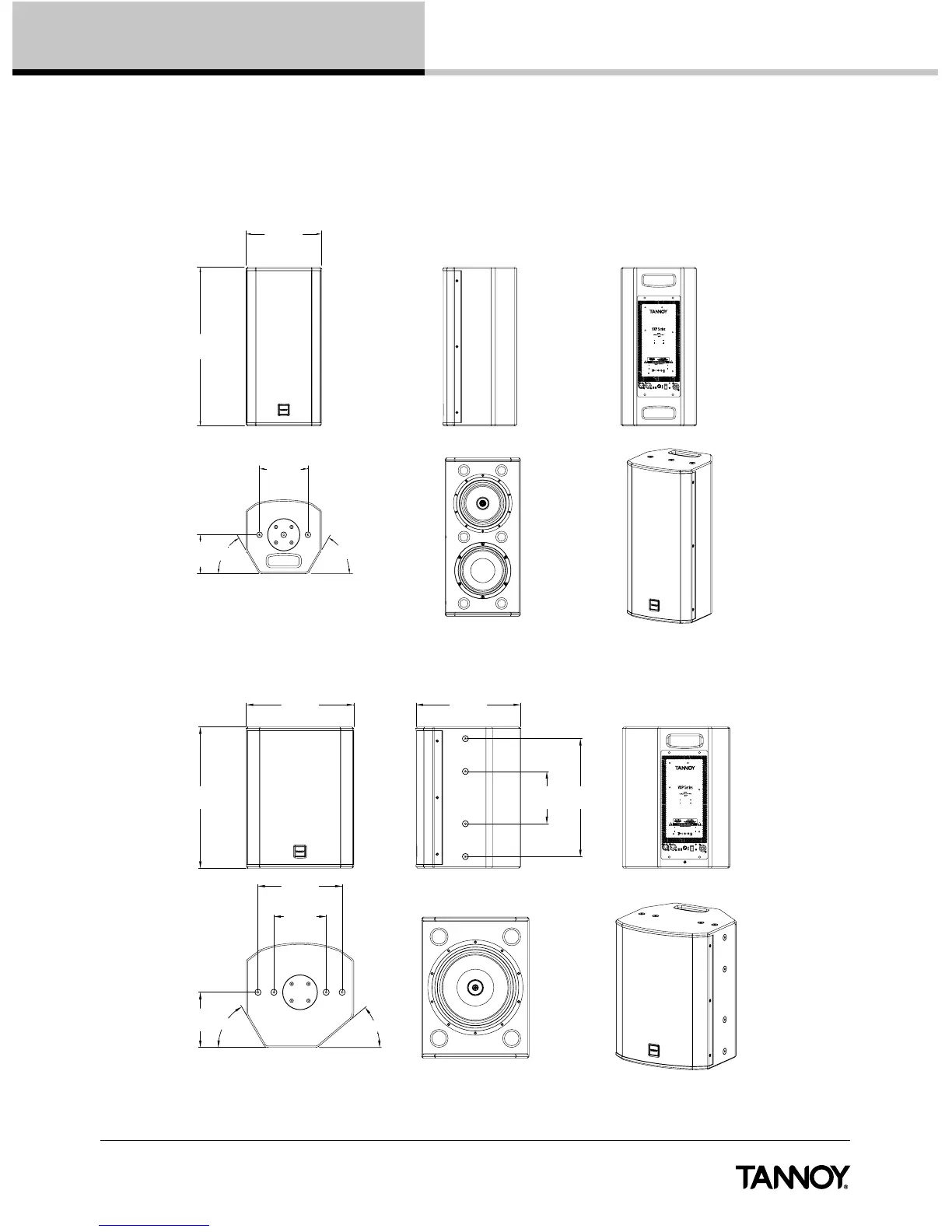

8. Dimensions
280.0
[11.02"]
590.0
[23.23"]
145.0
[5.71"]
60°
60°
180.0
[7.09"]
370.0
[14.57"]
360.0
[14.17"]
180.0
[7.09"]
290.0
[11.42"]
190.0
[7.48"]
60°
40°
486.0
[19.13"]
180.0
[7.09"]
406.0
[15.98"]
VXP 8.2
VXP 12
