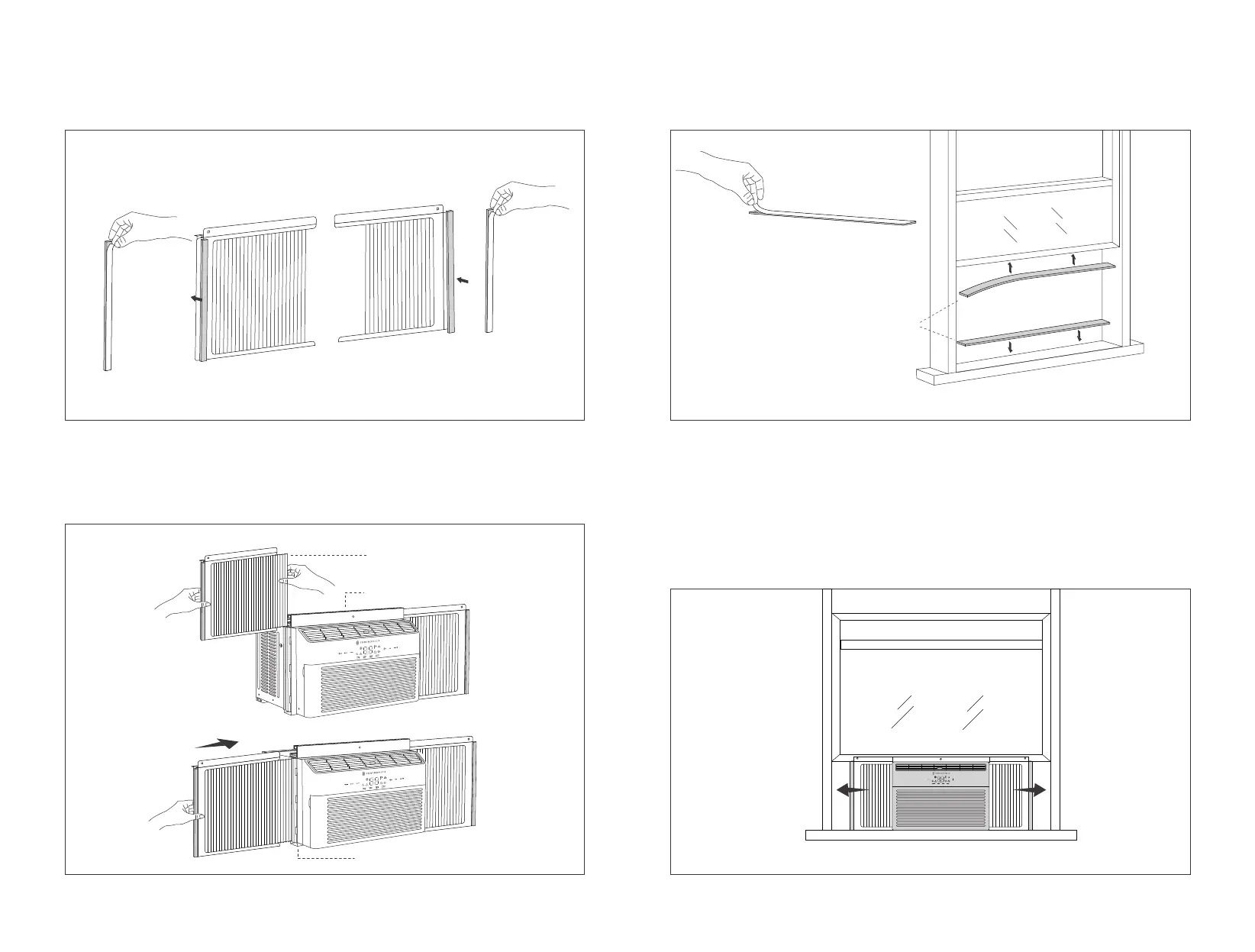

Step 2: Install Accordion Panel
1. Stick one accordion panel seal respectively on the left side and right side of accordion panel
installation frame.
2. Undraw the accordion panel, install the accordion panel marked with “LEFT” and “RIGHT” at
both sides of the air conditioner respectively.
Step 3: Stick Window Sill and Sash Seal
Cut the Window sill and sash seal into proper length. Tear off the paster and then stick the seal
at the lower part of the window frame.
Step 4: Place Air Conditioner
1. Ask 2 persons to put the air conditioner at the windowsill, and the lower guide rail should be
stick at the windowsill. Top mounting rail stays at the middle lower side of window and then
window can stick to the top mounting rail when closing it. Please note that the air conditioner
should be placed at horizontal place or inclined outwards slightly.
Front
accordion panel
top mounting rail
Lower Guide Rail
Window sill and sash seal
LEFTLEFTLEFT
LEFT
ES
LOW
Timer Mode Fan On/Off
MED HIGH AUTO
RIGHT
LEFT
01 03 05 07 09 11 13 15
17 19 21 23 25 27
02 04 06 08 10 12
14 16
18 20 22 24 26 28
To Next Page
