TaoTronics TT-AC003 User Manual

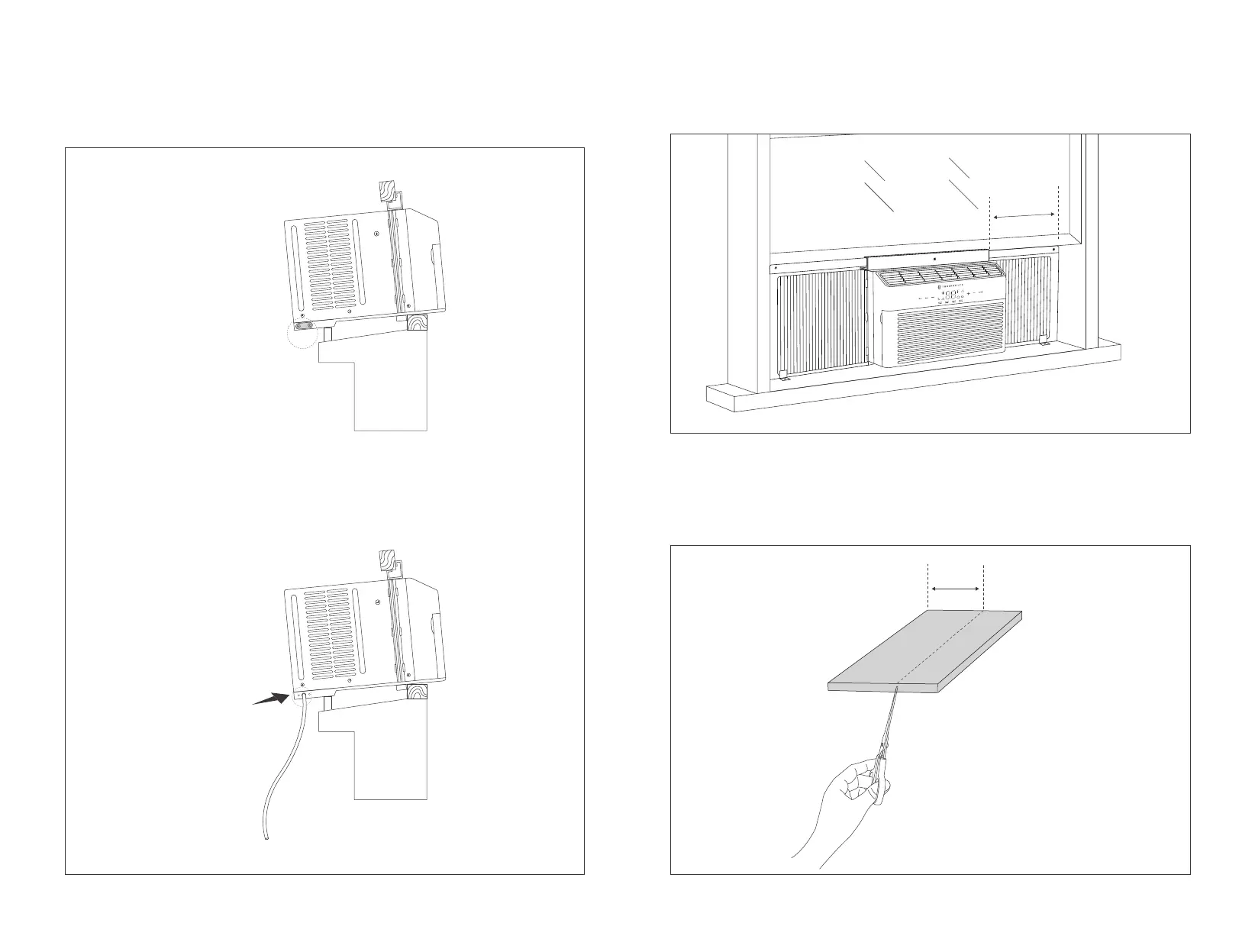

1.Install accordion panel sub-assy. After finishing installation, measure the width L between outer
case of air conditioner and window frame.
L
2. Take out foam insulation from the package. Cut off the foam insulation in rectangular shape
with scissors.
L
Step 8: Sponge Sticking Method and Procedures
Step 7: Drain water
This model features a drain hole to expel condensed water, when the water reaches a given level
it drains away automatically. Connect a proper-sized drain hose (not included) to the drip hole to
divert the water wherever you wish if the drip sound annoys you.
Inner Wall Side
Side
Unscrew the hole
cap off the body
Inner Wall Side
Drain hole
ES
LEFT
RIGHT
01 03 05 07 09 11 13 15
17 19 21 23 25 27
02 04 06 08 10 12 14 16
18 20 22 24 26 28

TaoTronics TT-AC003 Specifications

General

Brand	TaoTronics
Model	TT-AC003
Category	Air Conditioner
Language	English
