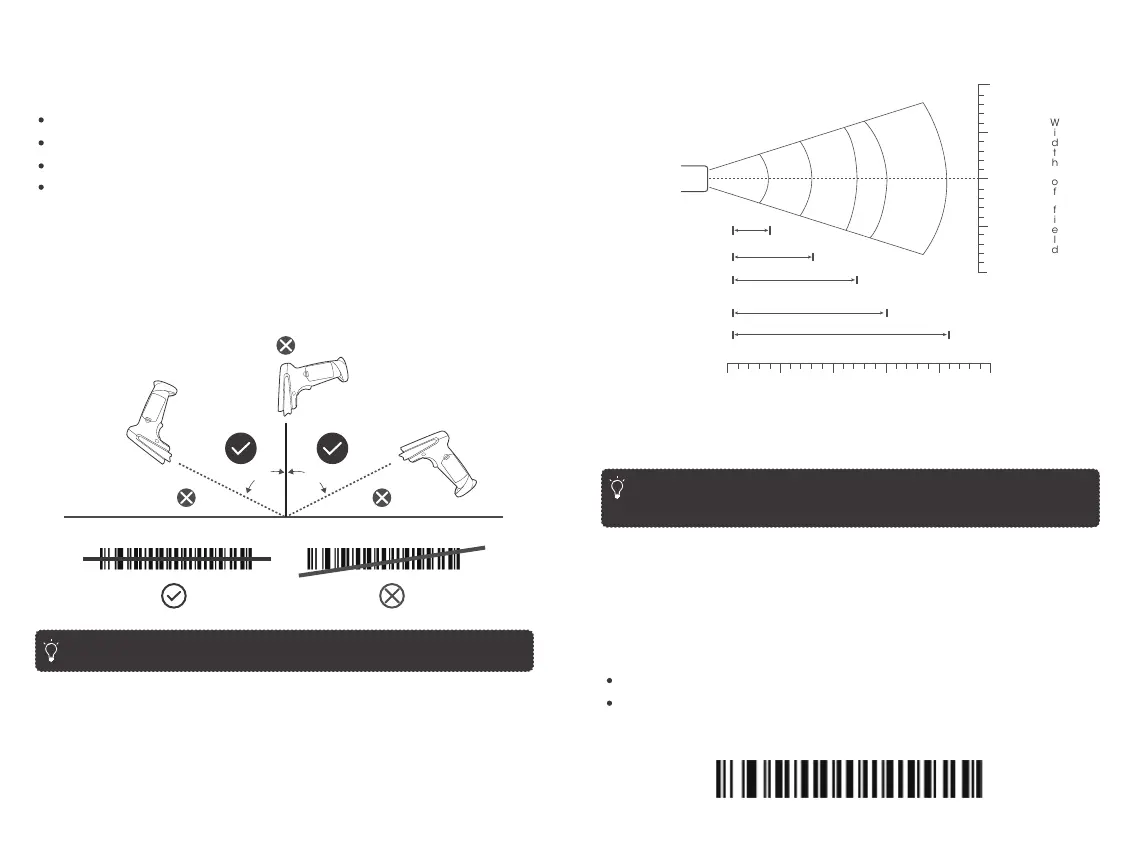

Scan Aiming
Decode Zone
Important Tips Before Use
Regularly clean the scanning window for better scanning accuracy
Keep the window away from any abrasive material
Remove any dirt particles with a damp cloth
Wipe the window using a tissue moistened with ammonia / water
Do not spray water or other cleaning liquids directly into the window
03/04
Note: Do not hold the scanner directly over the barcode.
TT Scanner
Shut Down
65°
65°
in.
10 25.4
12.7
0
12.7
25.4
5
0
5
10
cm
Width
of
field
5 mil
2.5”
1.5”
1.0” 14.5”
10.0”
6”
7.5 mil
10 mil
0 17.0”
100% UPC
* 23.0”
20 miL
0in.
cm 0
5
12.7
10
25.4
15
38.1
20
50.8
25
63.5
Depth of Field
*Minimum distance determined by symbol length and scan angle
Pressing the Trigger will turn on the scanner and make the laser appear.
The scanner will automatically shut off if detecting no operation in 30 seconds. You
can also scan the following barcode to manually shut it off.
How to Use Barcode Scanner
Note: Typical performance at 73° (23℃) on high quality symbols in normal
room light.
Using Your Barcode Scanner
Powering On / Off
To Next Page
