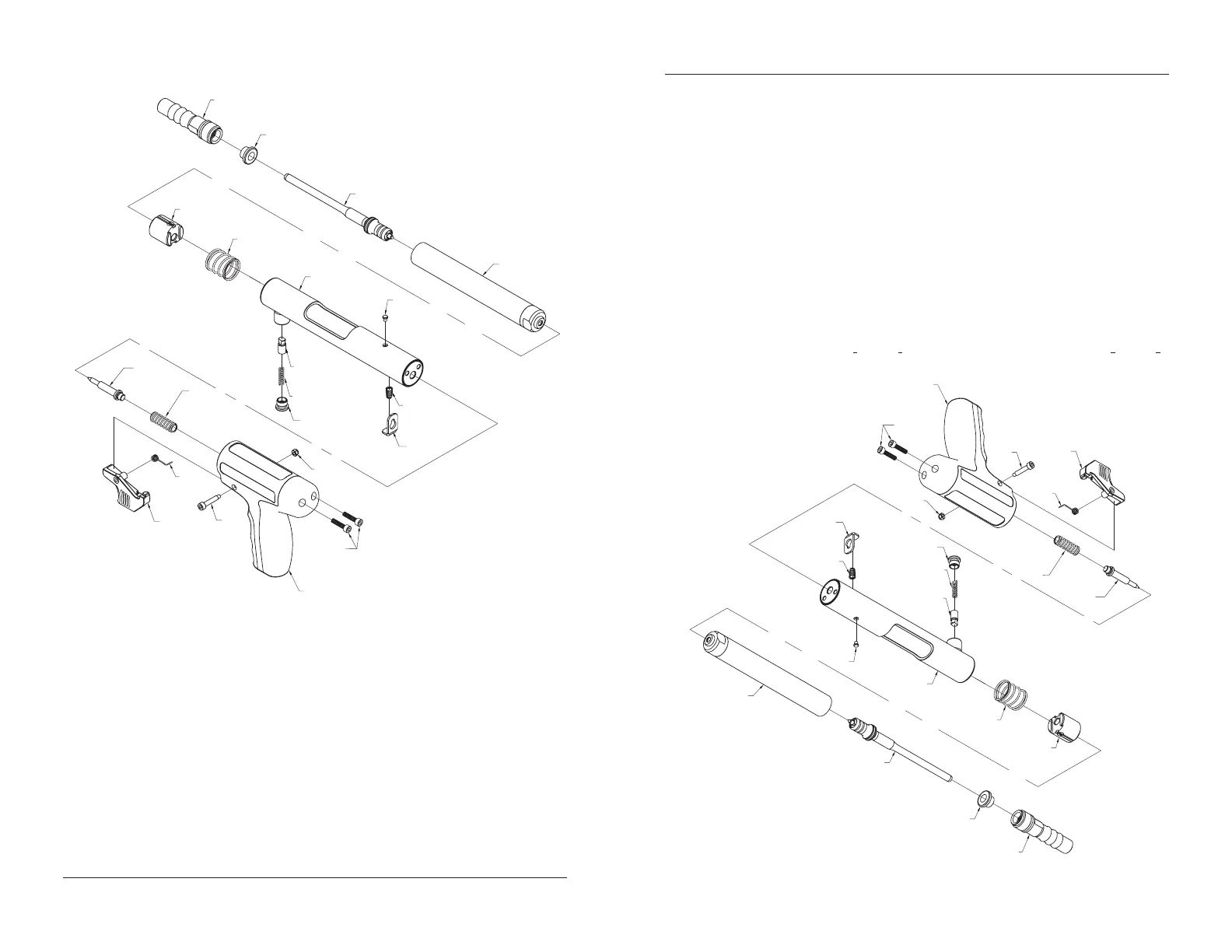

LISTA DE PARTES 12
PARTS LIST
PARTS LIST 12
LISTA DE PARTES
Key Part Description Qty.
No. No.
1 311331 Muzzle Bushing 1
2 311332 Buffer 1
3 311320 Piston Assembly 1
4 311310 Barrel Assembly 1
5 311221 Breech 1
6 311222 Breech Spring 1
7 311210 Receiver 1
8 250701 Pawl 1
9 311233 Pawl Spring 1
10 311232 Pawl Screw 1
11 250607 Pin Strip 1
Key Part Description Qty.
No. No.
12 250604 Sear Spring 1
13 250603 Sear 1
14 250605 Firing Pin 1
15 311414 Firing Pin Spring 1
16 311102 Trigger Spring 1
17 311101 Trigger 1
18 300108 Trigger Screw 1
19 300107 Trigger Lock Nut 1
20 235001 Handle Screw 2
21 311110 Handle 1
N
O
N
O
de Descripción Cant.
clave parte
1 311331 Casquillo de la boca 1
de la herramienta
2 311332 Amortiguador 1
3 311320
Ensamble del Pistón
1
4 311310 Conjunto cañón 1
5 311221 Recámara 1
6 311222 Tornillo de
la recámara 1
7 311210 Recibidor 1
8 250701 Linguete 1
9 311233 Resorte del
linguete 1
10 311232
Tornillo del linguete
1
N
O
N
O
de Descripción Cant.
clave parte
11 250607 Tope de la espiga 1
12 250604 Tornillo del fiador 1
13 250603 Fiador 1
14 250605 Espiga de disparo 1
15 311414 Tornillo de la
espiga de disparo 1
16 311102 Resorte del gatillo 1
17 311101 Gatillo 1
18 300108 Tornillo del gatillo 1
19 300107 Contratuerca
del gatillo 1
20 235001 Tornillo del mango 2
21 311110 Mango 1
1
2
3
18
20
21
14
15
16
17
4
13
12
7
11
6
5
8
9
10
19
1
2
3
18
20
21
14
15
16
17
4
13
12
7
11
6
5
8
9
10
19
