DRL-048, DRL-072 Crop Seeder
Assembly

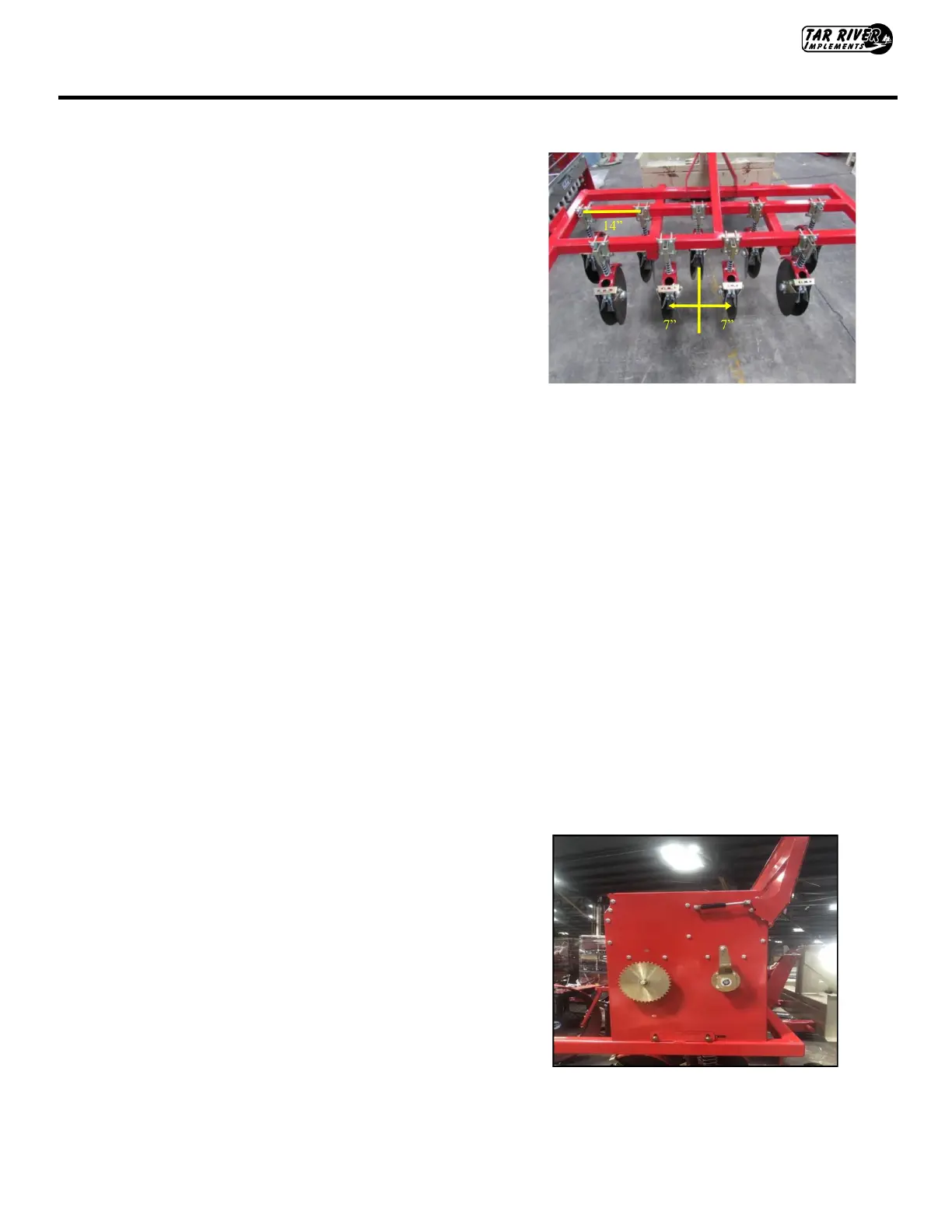

Step 1: Support the frame a few feet above the floor
with blocks or a Tar River Implement handler.
DRL-072
Align the double disc openers to the proper 7.00” spac-
ing. It is easier to begin mounting the “U” bolts that
hold that hold the Double Disc Assembly on one end
and aligh the nest one on the same bar 14.00” beside it.
The Double Disc Assemblies mounted on teh back bar
should beign between the front. There will be 5 on
each bar.
DRL-048
Align the center rear Double Disc opener of
the machine using the 3 pt. support as a guide.
Then slide the two front middle ones as far left
and right as possible as in the picture. Then use
these to adjust the remaining 14.00” on center.
There will be 4 on the front bar and 3 on the
rear.
Step 2:
Mount hopper box with the lid opening facing the
front of the implement. DO NOT TIGHTEN THE
BOLTS AT THIS TIME!
