DRL-048, DRL-072 Crop Seeder

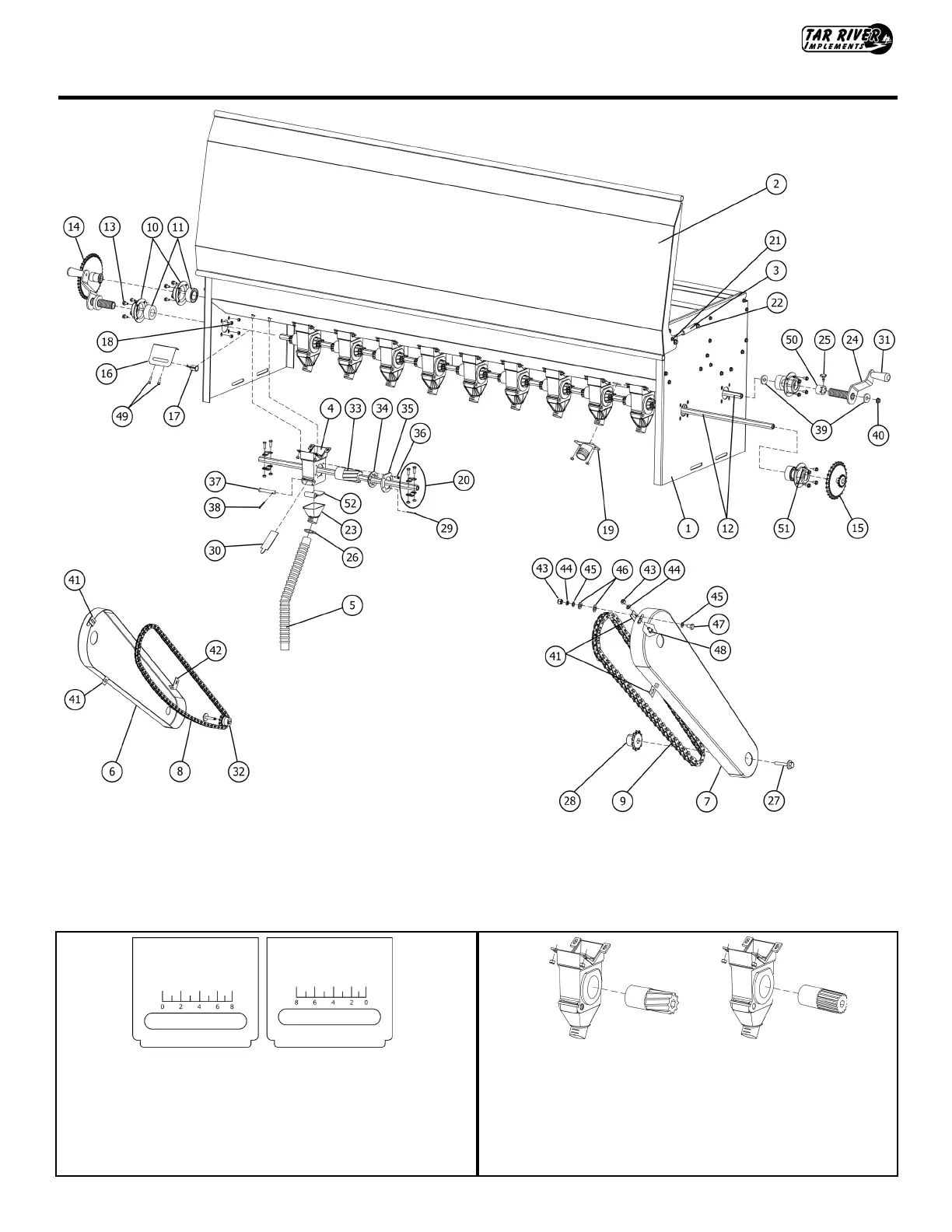

Hopper Assembly
Note: The Rate adjustment plates are not the same. LH
plate faces the rear of the machine. The RH plate faces
the front of the machine.
LH (rear) RH (front)
Note: Front and rear seed cup boxes can be identified
by examining the shafts. The front seed cup box has
spiral splines while the rear has straight splines.
Front cup box Rear cup box
