DRL-048, DRL-072 Crop Seeder
Assembly

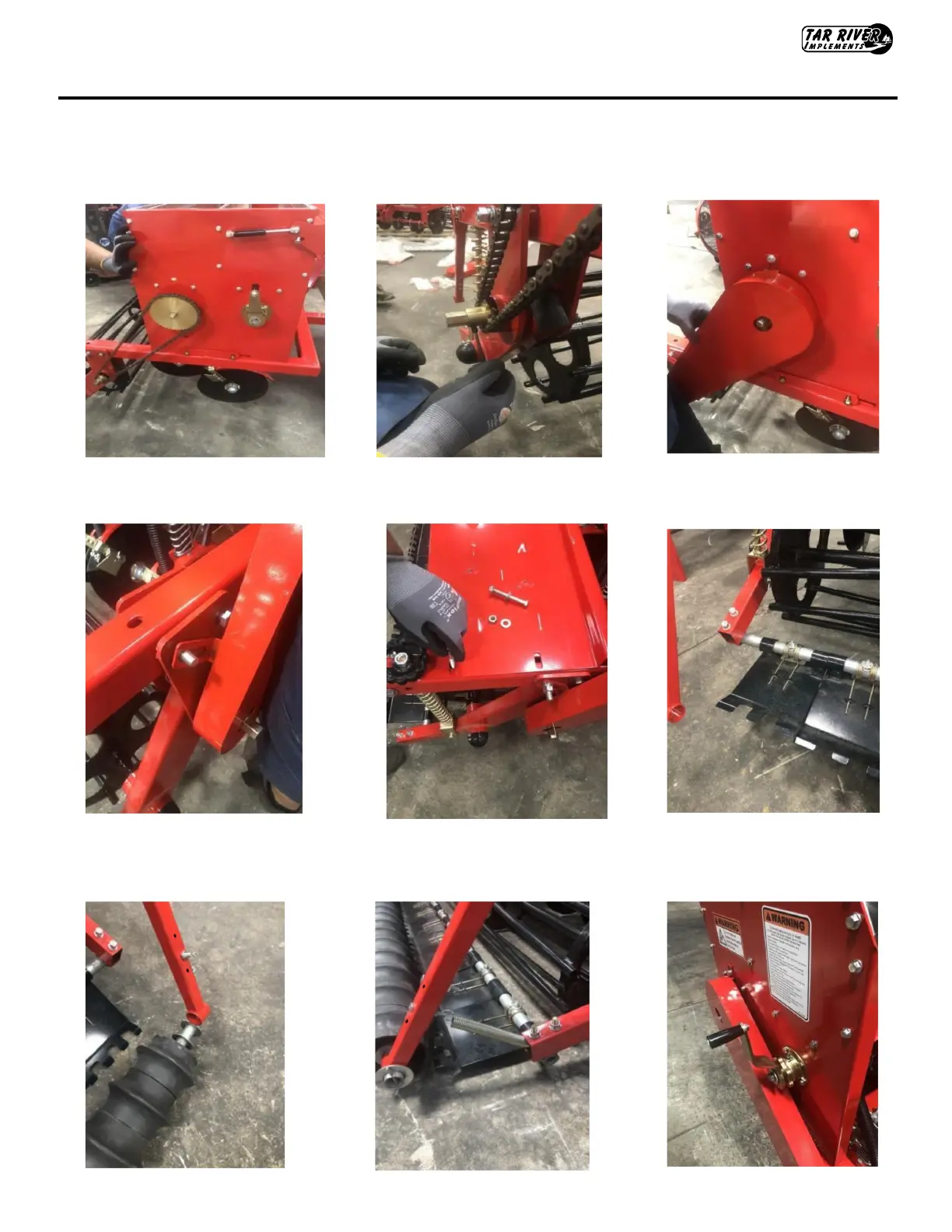

Step 11: Lightly push seed box forward to ghten the chain. Use an Allen wrench to ghten the drive sprocket aer ensuring the
chain is straight. Install chain shield.
Step 12: Install back bracket bolt
out during roller assembly.
Step 12b: Install step board. Step 13: Aach spring-loaded
scraperboard.
Step 14: Install the packer wheel
assembly.
Step 15: Install the tension
spring.
Step 16: Turn the handle to the
outside.
