DRL-048, DRL-072 Crop Seeder
Assembly

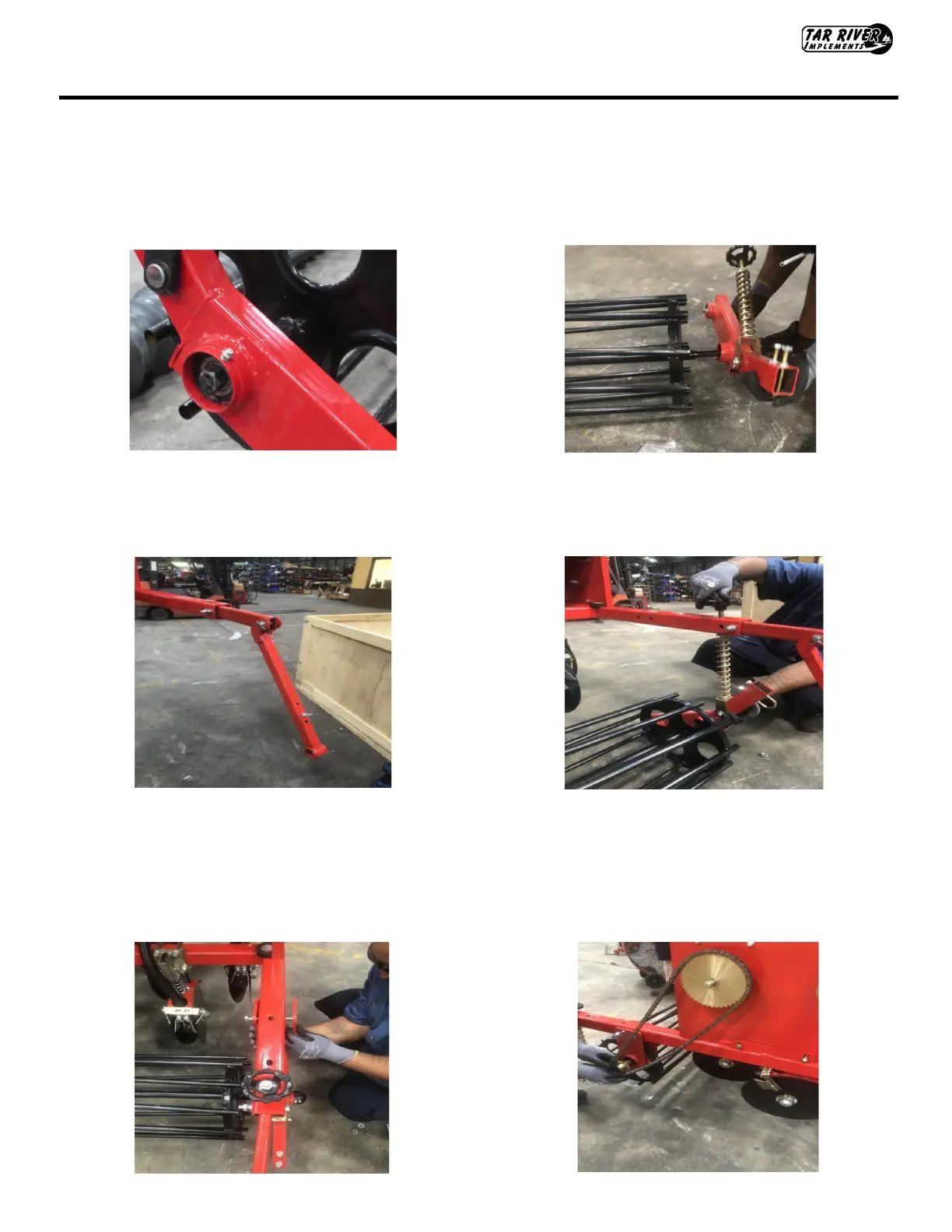

Step 6: Install the cage roller on both arms. Ensure grease fitting is to the outside. Secure in place with nuts
and cotter pins.
Step 7: Attach the packer wheel arm. Step 8: Attach and install the roller adjust-
ment rod.
Step 9: Install Roller Support Plates WITH FRONT
BOLTS ONLY! THE BACK BOLTS ARE IN-
STALLED AFTER THE CHAIN GUARDS ARE IN-
STALLED.
Step 10: Install chains.
