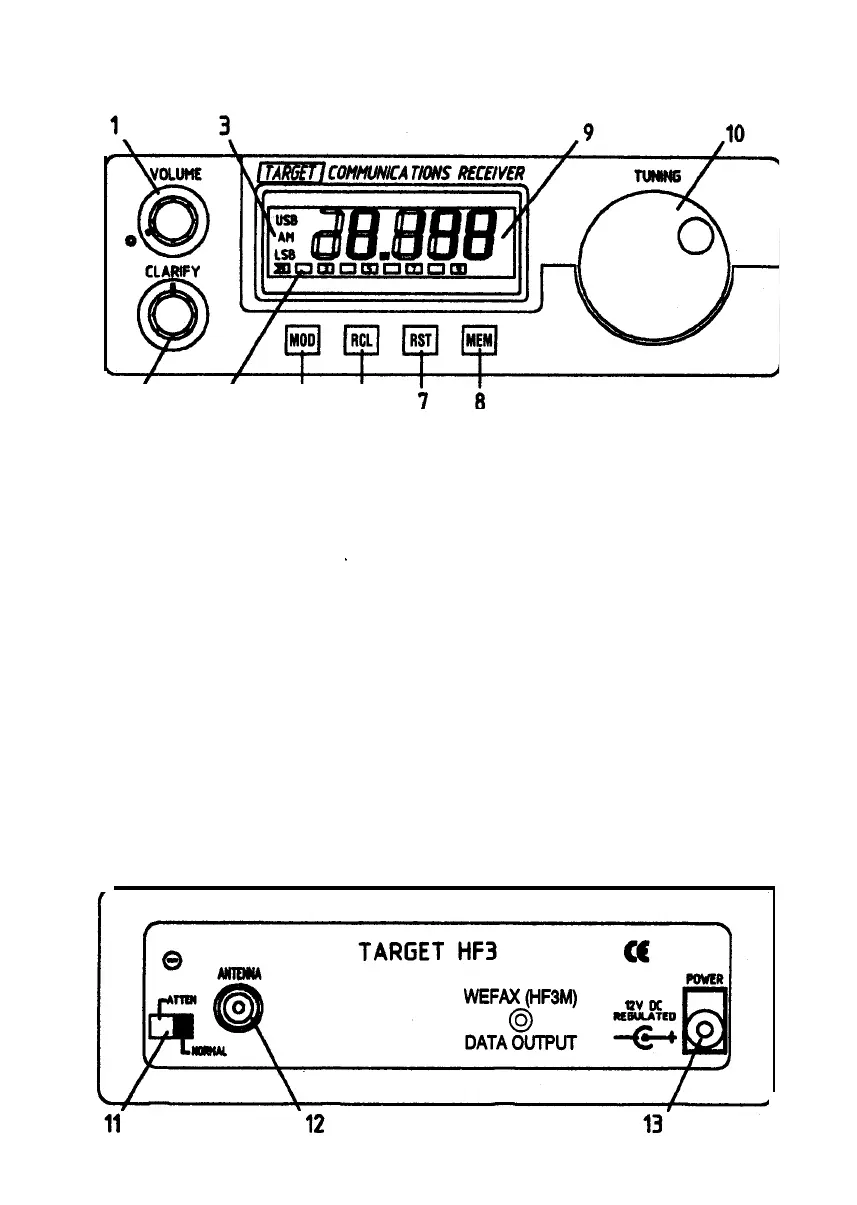

Target HF3 - Receiver Functions and Controls; Front Panel Controls; Receiver Indicators; Rear Panel Connections

FUNCTIONS
2
1
2
3
4
5
6
7
8
9
10
11
12
13
4- 58
On/Off & Volume Control
Clarify Control
Mode Display USB AM LSB
Signal Strength Meter
'
Rosters through Modes
Recall from Memory
Reset
Install into Memory
Frequency Display
Tuning Knob
Attenuator Switch
Antenna Socket
Power Socket
Clockwise on. Continue for volume
increase.
Set at centre (blue mark up) tune
either side
of centre.
Displays selected Mode only.
Bar Graph increases with received
Signal Strength.
Rosters LSB AM USB.
Recalls Freq. in Memory.
Reset and return
to Memory Position 1
Installs Freq. displayed into Memory.
MHz
to left of Point.
kHz
To right of Point.
Turn
to alter Frequency.
Set
to Normal or Attenuate.
Plug Aerial in here.
Plug
12v
Dc Supply here.
