Target Made By Design Horizontal Bookcase - Cam Lock System Operation

7

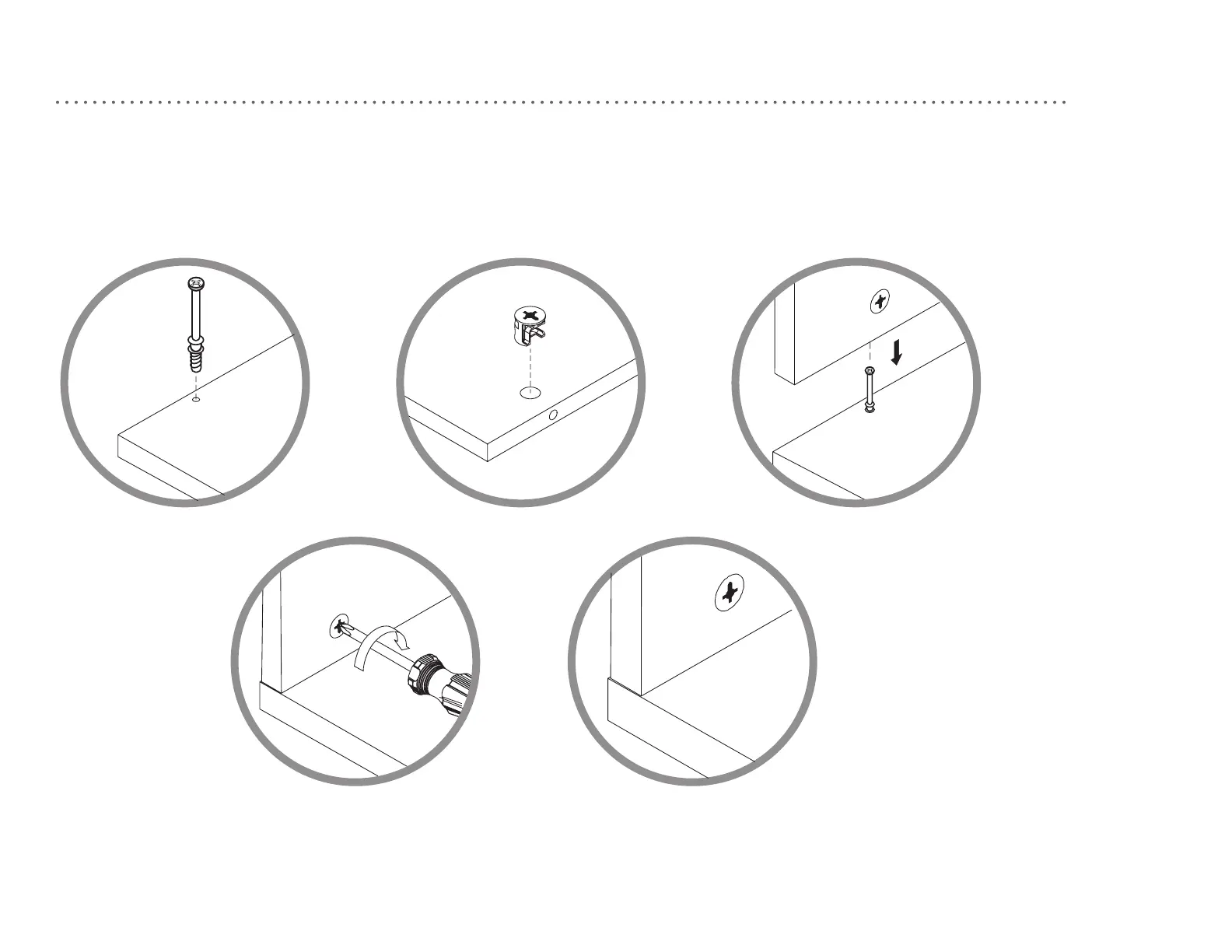

how to use the cam lock system
x 2
(H1) x 4
large cam
(H2) x 2
small cam
(H3) x 8
cam cover cap
(H5) x 2
short cam bolt
(H4) x 4
long cam bolt
(H6) x 2
knob
(H7) x 4
large wooden dowel
(H8) x 2
small wooden dowel
(H10) x 1
allen wrench
(H9) x 1
glue
(H11) x 4
L-bracket
(H12) x 2
hinge
(H13) x 16
1/2” pan-head screw
(H15) x 2
7/8” pan-head machine screw
(H14) x 8
Glue
(H16) x 4
2” hex-head screw
(H17) x 4 (H18) x 12
1-1/8” washer-head screw
(H20) x 1
touch-up stick
(H19) x 35
nail
(H21) x 2 sets
drawer glides
(H22) x 1
magnetic catch
(H23) x 1
strike plate
(H25) x 1
strike plate screw
(H24) x 2
magnetic catch screw
3.
1. 2. 3.
4. 5.
180°
1. 2. 3.
4.
5.
180°
