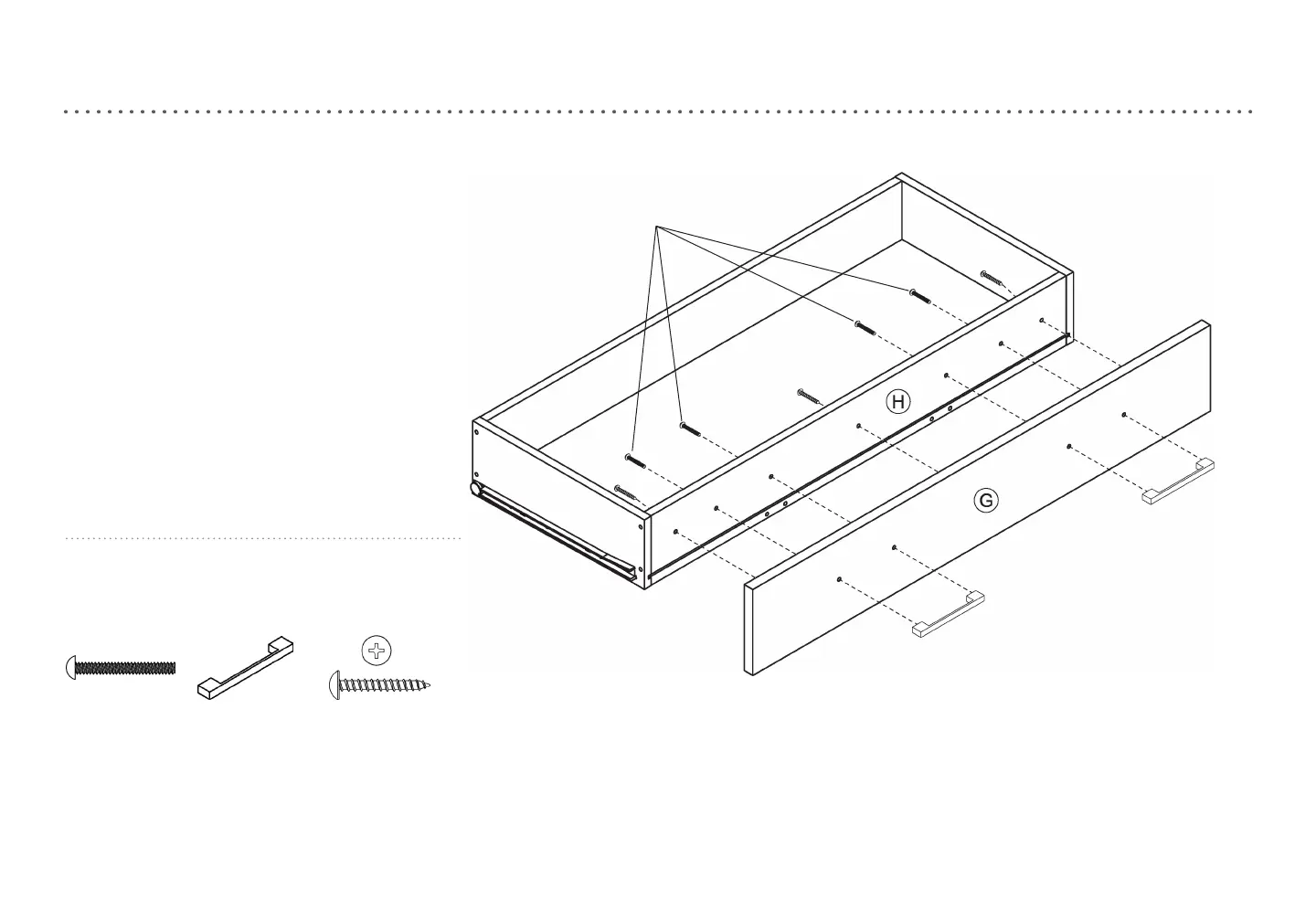

step 9: attach drawer face and handles
(H8) x 4
long round
head bolt
(H9)
x 2
handle
(H11) x 3
long round
head screw
9.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
9.2. Screw-In cam bolts must be screwed down ush.
9.3. Refer to page 6 for instructions on how to use the cam lock system.
9.4. Do not over tighten screws.
15
(H8)
