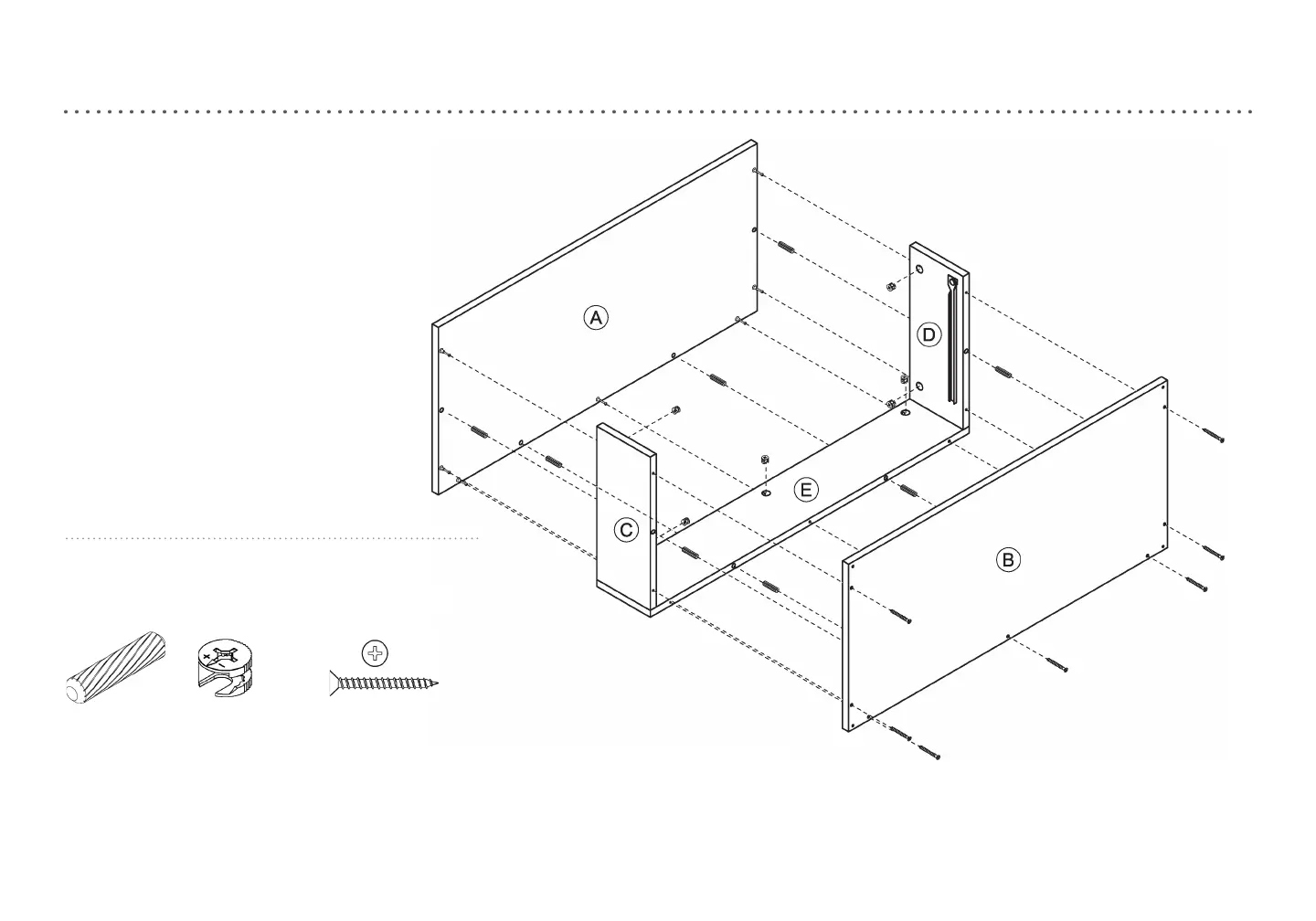

step 3: attach top and middle panels
(H1) x 8
wooden dowel
(H3) x 7
cam
(H4) x 7
at head screw
3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
3.2. Screw-In cam bolts must be screwed down ush.
3.3. Refer to page 6 for instructions on how to use the cam lock system.
3.4. Do not over tighten bolts.
9
at head screw
Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
