Tarter RC104BL - Assembly; Tools Required for Assembly; Assembly Steps Overview

To Next Page

To Previous Page

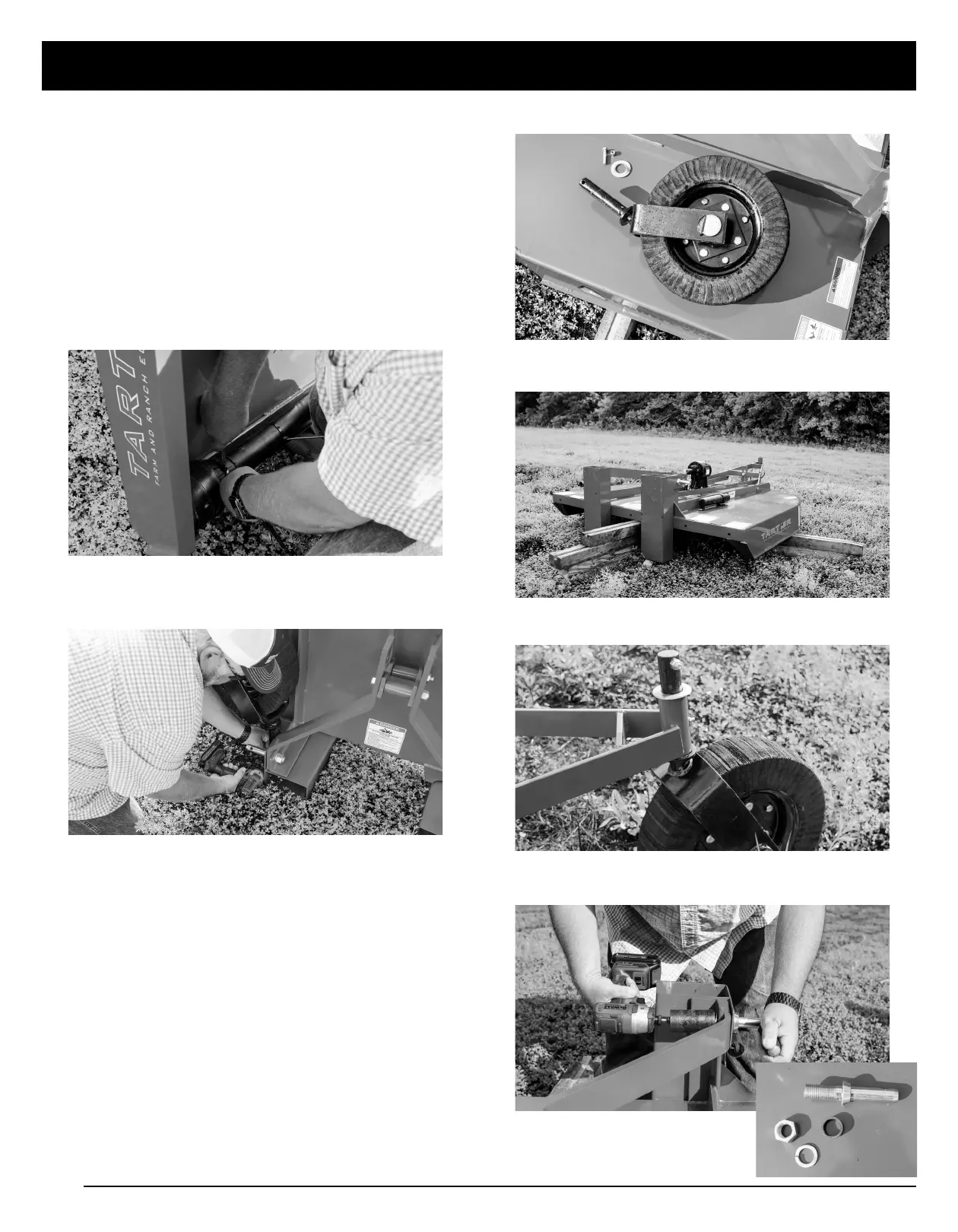

3. Remove the tailwheel and 3” washer.

4. Place the rotary cutter on a level spot. Block up

the front and back of the rotary cutter.

5. Install the tailwheel with 3” washer on top. Secure

with 3/8” – 16 × 2” bolt and nut. Tighten.

6. Using 1-5/16” wrench/socket, remove the CAT I

pins from the shipping boots.

ASSEMBLY

TOOLS REQUIRED

• TIN SNIPS

• SCREWDRIVER

• VICE GRIPS

• RATCHET

• PLIERS

• SOCKETS AND WRENCHES: 9/16”, 3/4”, 15/16”,

7/8”AND 1-5/16”. (Impact wrench is preferred)

1. Cut the zip ties and remove the PTO Shaft from

the backside of the rotary cutter.

2. Remove 3/8” – 16 × 2” bolt and nut from the

tailwheel holder on the shipping boot, using a

9/16” wrench.

DO NOT DISCARD HARDWARE!
