13

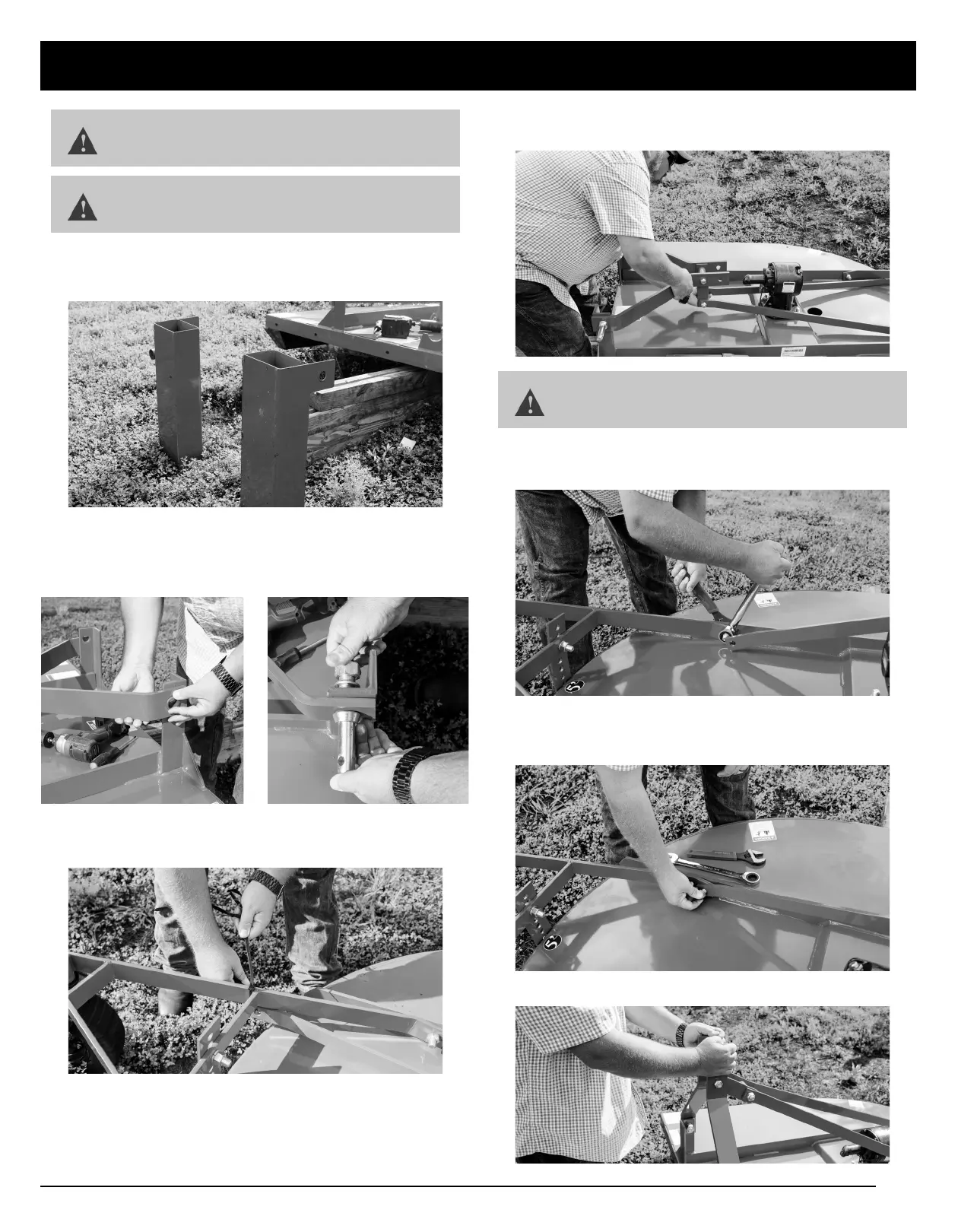

10. Raise the lift arms in the upright position, using
the bottom pivot point.
11. Remove nut on one side of the A-frame using
15/16” wrench.
12. Place the backstrap brace on the bolt, as
pictured, using the locknut. Hand tighten. Repeat
for other side.
13. Pull lift arms until they are into place.
7. Once the CAT I pins are removed, lift up on the
cutter to remove from the shipping boots.
8. Line up the holes on the A-frame and re-insert
CAT I pins, bushing, washer and nut. Hand tighten
only.
9. Remove the two zip ties from the tailwheel
assembly and back braces.
ASSEMBLY
CAUTION: Possible pinch point.
NOTE: Set aside the CAT 1 pins, bolts,
washers and bushings.
CAUTION: Shipping boots may fall off.
