16
4. Grease the two fittings in the rear tailwheel assembly.
5. Using a 7/8” wrench, remove the fill plug and using a
7mm wrench, remove the drain plug. Both are located
on the backside of the gearbox.
6. Fill the gearbox with 80W/90 or 85W/140 gear oil until
level with the drain plug. (Holds approx. 1 quart)
7. Replace and tighten both plugs on the gearbox.

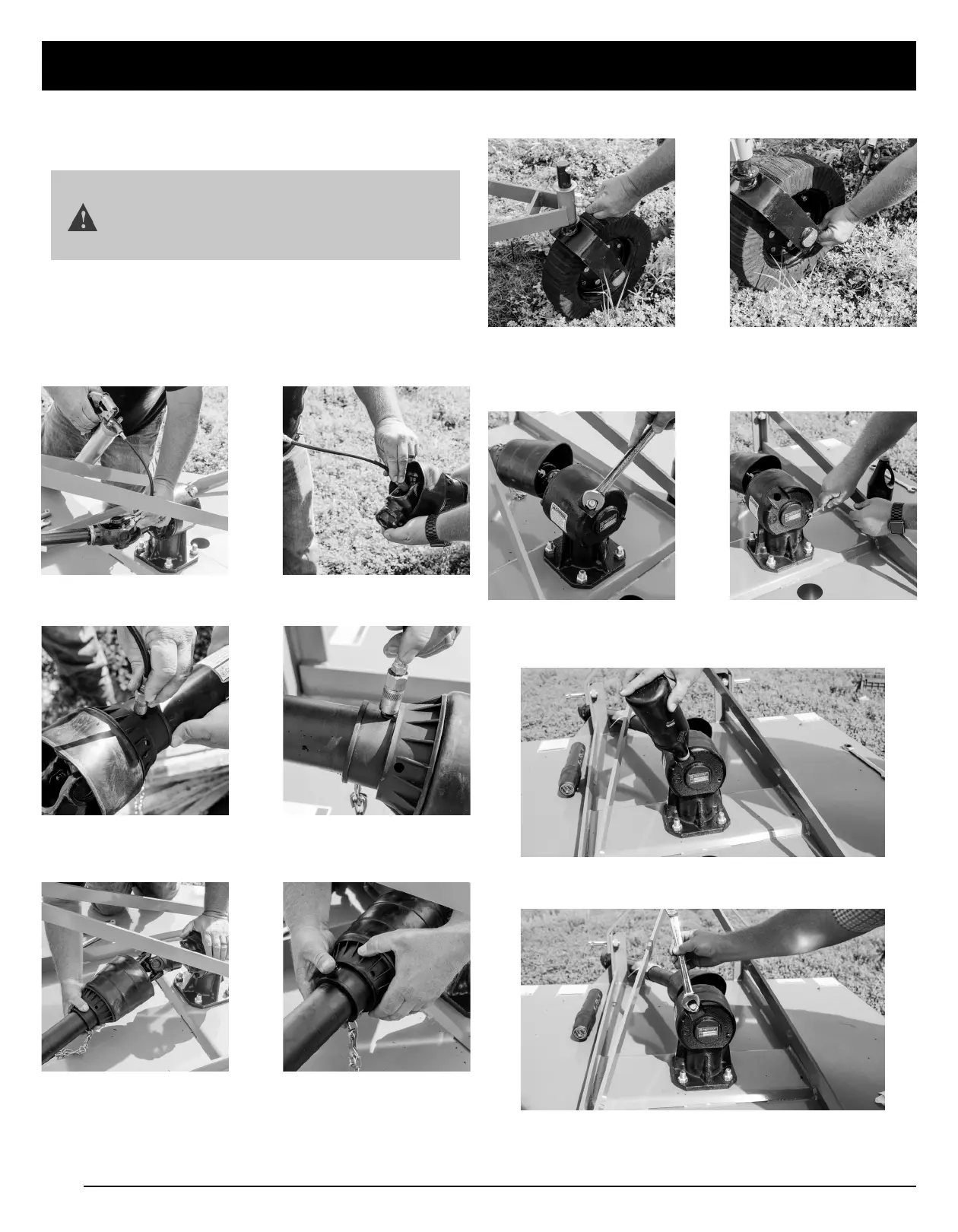

ASSEMBLY
BEFORE PUTTING YOUR ROTARY
CUTTER INTO SERVICE
NOTE: Fill the gearbox using EP 85-90W gear oil. For all
grease fittings use TYPE/Grade II tube grease.
1. Grease the two fittings on the PTO shaft. There is one
on each end of the shaft in the universal joint.
2. Grease the two fittings on each end of the PTO Shield.
3. Re-install the PTO shield by sliding the shield over the
universal joint making sure the shield locks in place.
IMPORTANT: This Rotary Cutter was shipped
without oil in the gearbox and without
grease in the grease fittings. UNIT MUST BE
SERVICED BEFORE USE.
