6 – Specications/rated values
o Using NiMH battery (eneloop)
Use conditions Operation time
Condenser mic connected to INPUT 1
jack
Phantom power used (2 mA)
About 5 hours
Condenser mic connected to INPUT 1
jack
Phantom power used (5mA)
About 4 hours
Dynamic mics connected to INPUT 1 and
INPUT 2 jacks
Phantom power unused
About 7 hours
TASCAM TM-200SG connected to INPUT
1 jack
Phantom power used
About 5 hours
Other unit settings: input volume centered, ATT switch at
“0dB”, LEVEL switch at “MAN”, LIMITER
switch at “OFF”
o Using lithium-ion batteries (Energizer Ultimate Lithium)
Use conditions Operation time
Condenser mic connected to INPUT 1
jack
Phantom power used (2 mA)
About 10 hours
Condenser mic connected to INPUT 1
jack
Phantom power used (5mA)
About 8 hours
Dynamic mics connected to INPUT 1 and
INPUT 2 jacks
Phantom power unused
About 14.5 hours
TASCAM TM-200SG connected to INPUT
1 jack
Phantom power used
About 10 hours
Other unit settings: input volume centered, ATT switch at
“0dB”, LEVEL switch at “MAN”, LIMITER
switch at “OFF”
ATTENTION
When using phantom power, the operation time might be
reduced depending on the mics being used.
Dimensions / Weight
CA-XLR2d-C:
88.2mm (W) x 119.1mm (H) x 110.0 mm (D) / 341 g
(not including protrusions, mic holder attached,
battery holder not attached)
CA-XLR2d-F:
88.2mm (W) x 119.1mm (H) x 110.0 mm (D) / 331 g
(not including protrusions, mic holder attached,
battery holder not attached)
CA-XLR2d-AN:
88.2mm (W) x 119.1mm (H) x 110.0 mm (D) / 357 g
(not including protrusions or batteries, mic holder
attached, battery holder attached)
Operating temperature range
0 - 40°C (32 - 104°F)

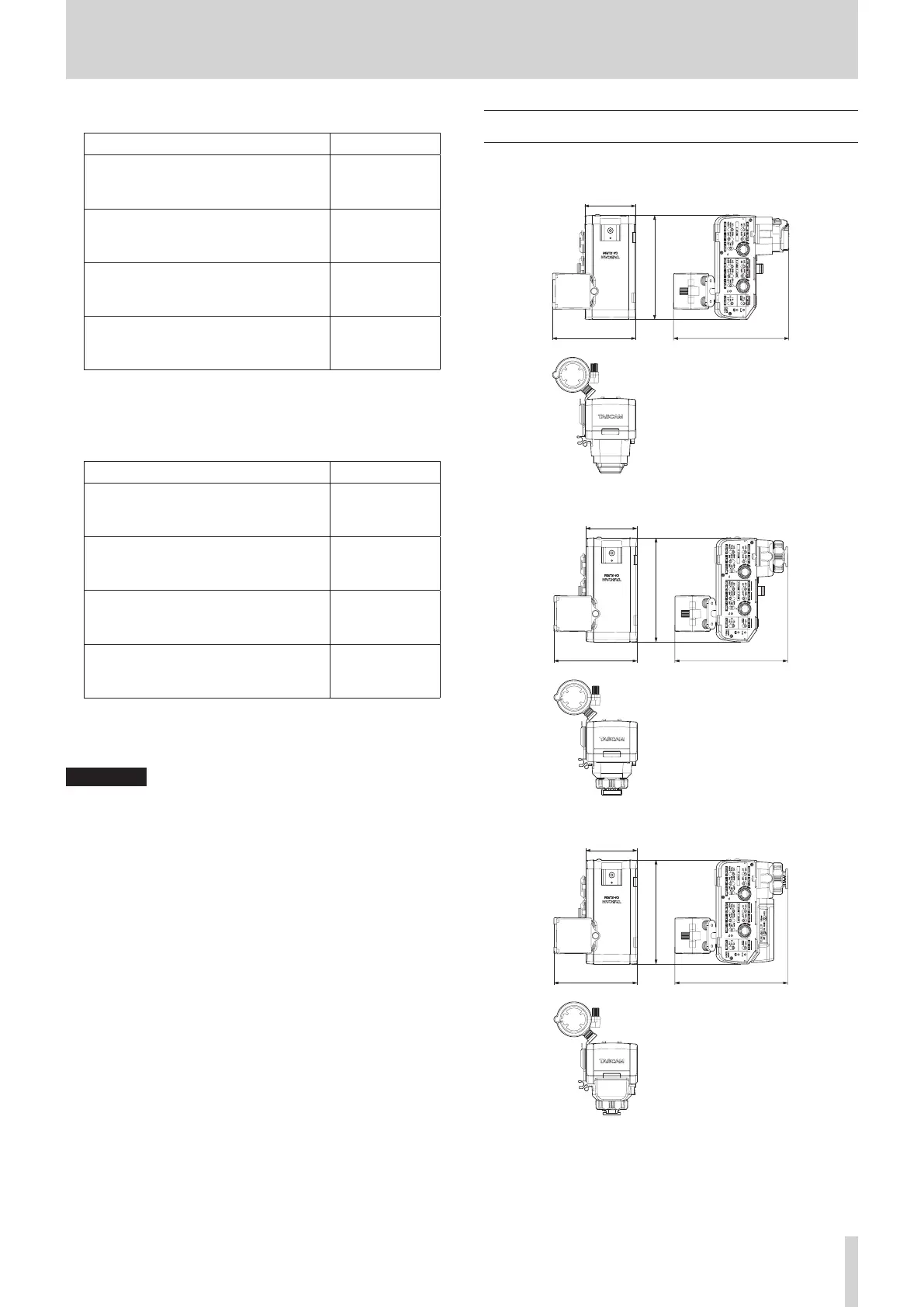

Dimensional drawings
CA-XLR2d-C
119.1mm88.2mm
54.0mm
110.0mm
CA-XLR2d-F
119.1mm88.2mm
110.0mm
54.0mm
CA-XLR2d-AN
119.1mm88.2mm
110.0mm
54.0mm
o Illustrations in this reference manual might dier in part from
the actual product.
o Specications and external appearance might be changed
without notication to improve the product.
