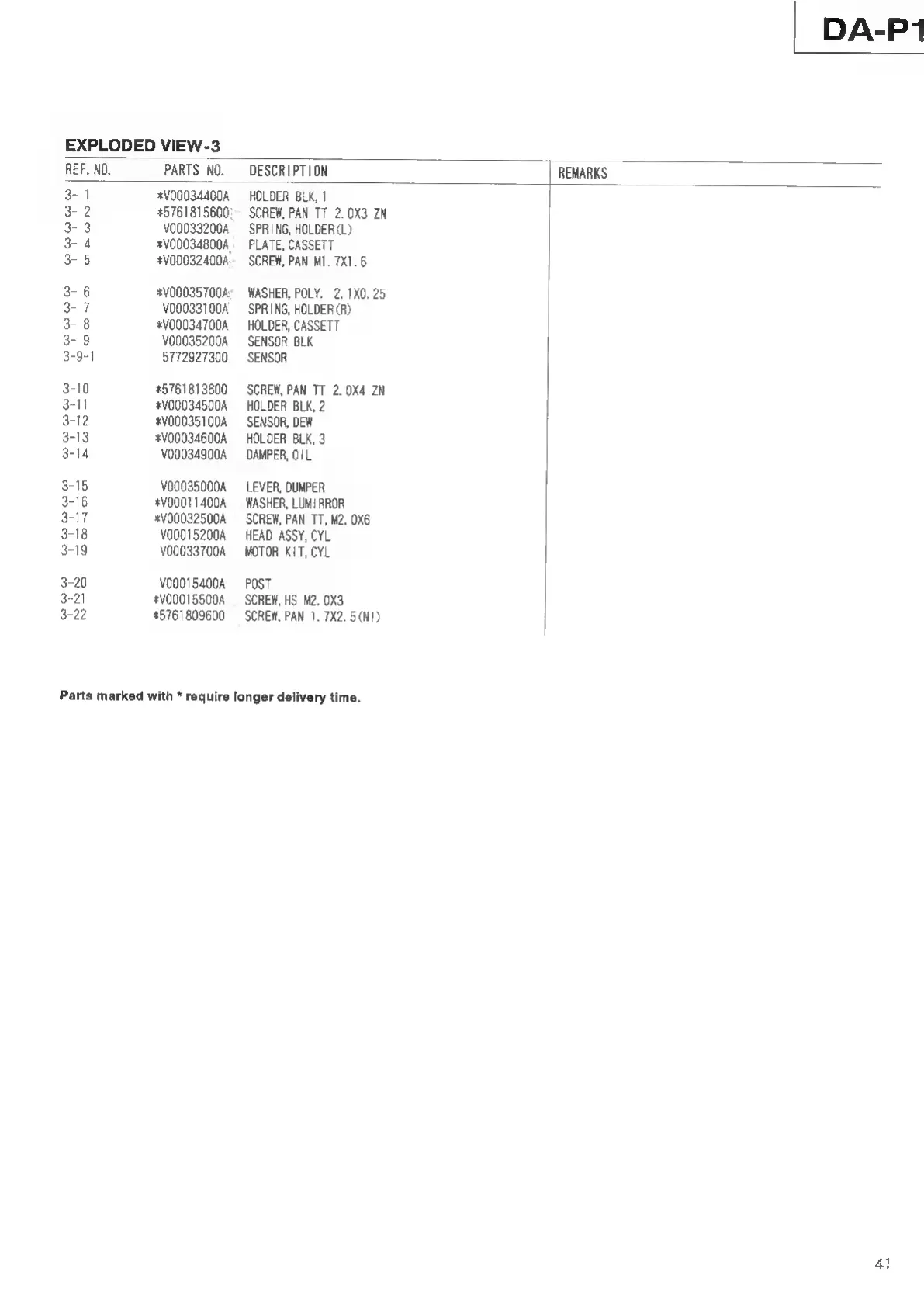

Tascam DA-P1 - Exploded Views and Parts List; Exploded View-3 Parts List

EXPLODED VIEW-3
REF. NO. PARTS NO. DESCRIPTION
3-1 *V00034400A НОГОЕВ ВІК, 1
32 #5761815600 _ SCREW, PAN TT 2. 0Х3 ZN
3-3 V00033200A SPRING, HOLDER(L)
3-4 *V00034800A — PLATE, CASSETT
3-5 #/000324004 _ SCREW, PAN MI. 7X1.6
3-6 #/000357004 _ WASHER, POLY. 2.1Х0.25
3-7 V00033100A SPRING, HOLDER (R)
3- 8 %/000347004 HOLDER, CASSETT
3-9 Ү00035200А SENSOR BLK
3-9-1 5772927300 SENSOR
3-10 15761813600 SCREW, PAN TT 2. 0X4 ZN
3-11 *V00034500A HOLDER BLK, 2
3-12 *V00035100A SENSOR, DEW
3-13 *V00034600A НОГОЕВ ВІК, 3
3-14 V00034900A DAMPER, OIL
3-15 V00035000A LEVER, DUMPER
3-16 *V00011400A — WASHER, LUMI RROR
3-17 *V00032500A SCREW, PAN TT, M2. 0X6
3-18 V00015200A HEAD ASSY, CYL
3-19 V00033700A MOTOR KIT, CYL
3-20 V00015400A POST
3-21 *V00015500A | SCREM,HS M2. 0X3.
3-22 #5761809600 | SCREM, PAN 1. 7X2. 5 (NI)
Parts marked with * require longer delivery time.
REMARKS
DA-P1
41
