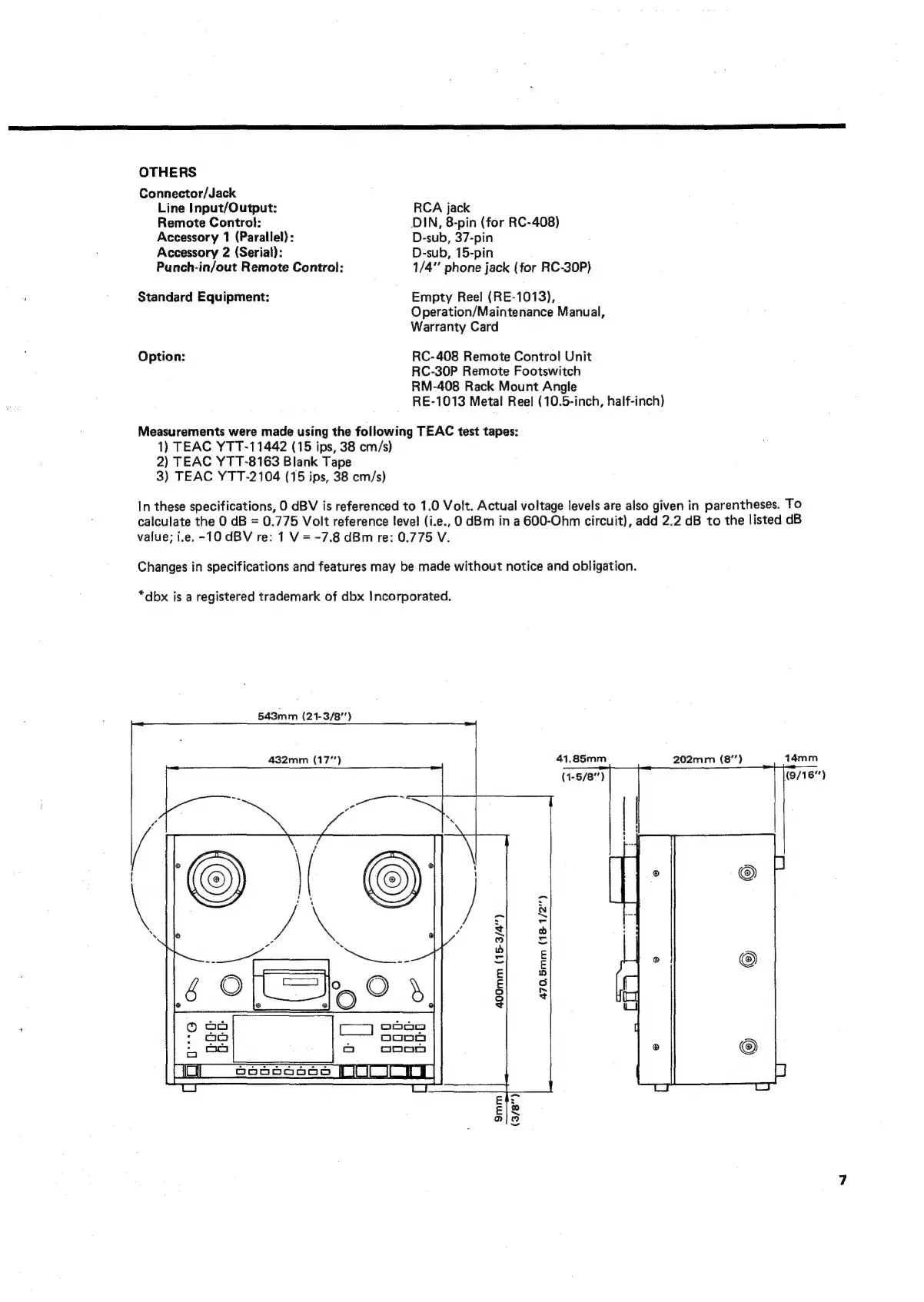

Tascam TSR-8 User Manual

OTHERS
Connector/Jack
Line Input/Output: RCA jack
Remote Control: DIN, 8-pin (for RC-408)
Accessory 1 (Parallel): D-sub, 37-pin
Accessory 2 (Serial): D-sub, 15-pin
Punch-in/out Remote Control: 1/4” phone jack (for RC-30P)
Standard Equipment: Empty Reel (RE-1013),
Operation/Maintenance Manual,
Warranty Card
Option: RC-408 Remote Control Unit
RC-30P Remote Footswitch
RM-408 Rack Mount Angle
RE-1013 Metal Reel (10.5-inch, half-inch)
Measurements were made using the following TEAC test tapes:
1) TEAC YTT-11442 (15 ips, 38 cm/s)
2) TEAC YTT-8163 Blank Tape
3) TEAC YTT-2104 (15 ips, 38 cm/s)
In
these
specifications,
0
dBV
is
referenced
to
1.0
Volt.
Actual
voltage
levels
are
also
given
in
parentheses.
To
calculate the 0 dB = 0.775 Volt reference level (i.e., 0 dBm in a 600-Ohm circuit), add 2.2 dB to the listed dB
value; i.e. -10 dBV re: 1 V =-7.8 dBm re: 0.775 V.
Changes in specifications and features may be made without notice and obligation.
*dbx is a registered trademark of dbx Incorporated.
543mm (21-3/8")
41.85mm 202mm (8) 14mm
(1-5/8) (9/16)
432mm (17")
470.5mm (18 1/2’)
400mm (15-3/4’’)
=~
2
2
~
