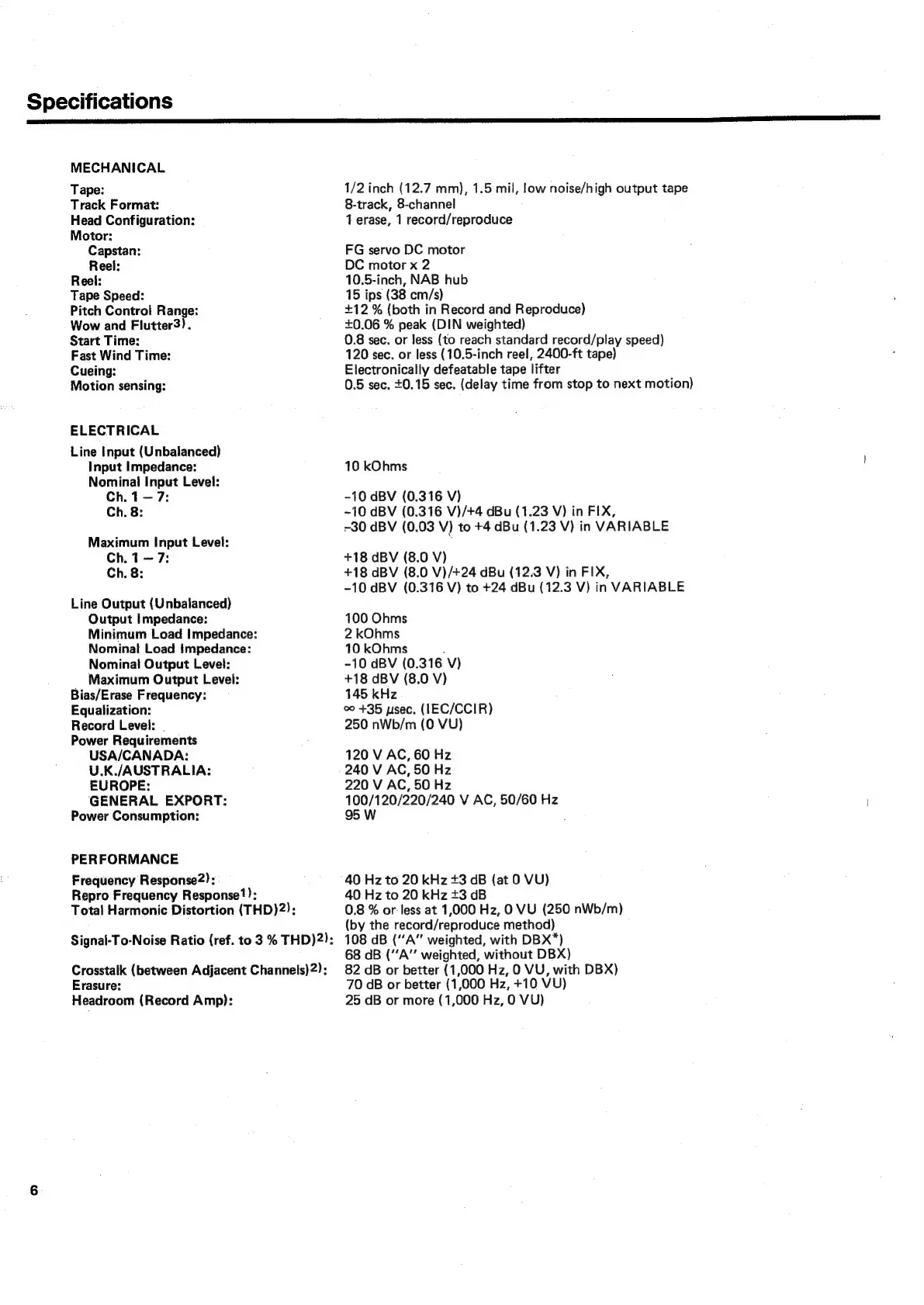

Specifications
A 0 2 a PT TUT SE I ES SE 2 ETE OD
MECHANICAL
Tape:
Track Format:
Head Configuration:
Motor:
Capstan:
Reel:
Reel:
Tape Speed:
Pitch Control Range:
Wow and Flutter3).
Start Time:
Fast Wind Time:
Cueing:
Motion sensing:
ELECTRICAL
Line Input (Unbalanced)
Input Impedance:
Nominal Input Level:
Ch. 1—7:
Ch. 8:
Maximum Input Level:
Ch. 1 — 7:
Ch. 8:
Line Output (Unbalanced)
Output Impedance:
Minimum Load Impedance:
Nominal Load Impedance:
Nominat Output Level:
Maximum Output Level:
Bias/Erase Frequency:
Equalization:
Record Level: .
Power Requirements
USA/CANADA:
U.K./AUSTRALIA:
EUROPE:
GENERAL EXPORT:
Power Consumption:
PERFORMANCE
Frequency Response2):
Repro Frequency Response’):
Total Harmonic Distortion (THD)2):
Signal-To-Noise Ratio (ref. to 3 % THD)2):
Crosstalk (between Adjacent Channels)2):
Erasure:
Headroom (Record Amp):
1/2 inch (12.7 mm), 1.5 mil, low noise/high output tape
8-track, 8-channel
1 erase, 1 record/reproduce
FG servo DC motor
DC motor x 2
10.5-inch, NAB hub
15 ips (38 cm/s)
+12 % (both in Record and Reproduce)
+0.06 % peak (DIN weighted)
0.8 sec. or jess (to reach standard record/play speed)
120 sec. or less (10.5-inch reel, 2400-ft tape)
Electronically defeatable tape lifter
0.5 sec. +0.15 sec. (delay time from stop to next motion)
10 kOhms
-10 dBV (0.316 V)
~10 dBV (0.316 V)/+4 dBu (1.23 V) in FIX,
~30 dBV (0.03 V) to +4 dBu (1.23 V) in VARIABLE
+18 dBV (8.0 V)
+18 dBV (8.0 V)/+24 dBu (12.3 V) in FIX,
-10 dBV (0.316 V) to +24 dBu (12.3 V) in VARIABLE
100 Ohms
2 kOhms
10 kOhms .
-10 dBV (0.316 V)
+18 dBV (8.0 V)
145 kHz
co +35 psec. (IEC/CCIR)
250 nWb/m (0 VU)
120 V AC, 60 Hz
240 V AC, 50 Hz
220 V AC, 50 Hz
100/120/220/240 V AC, 50/60 Hz
95 W
40 Hz to 20 kHz +3 dB (at 0 VU)
40 Hz to 20 kHz +3 dB
0.8 % or less at 1,000 Hz, 0 VU (250 nWb/m)
(by the record/reproduce method)
108 dB (““A” weighted, with DBX*)
68 dB (“A” weighted, without DBX)
82 dB or better (1,000 Hz, 0 VU, with DBX)
70 dB or better (1,000 Hz, +10 VU)
25 dB or more (1,000 Hz, 0 VU)
