3.1 VARIOUS MODELS AND TERMS
The Blitzfi re Portable Monitor is an effi cient, compact and easy to maneuver portable monitor. This monitor can be mounted in a pre-
connected state on the truck-mounting storage bracket for achieving quick and eff ective initial attack.
The Blitzfi re monitor is available in standard and high elevation models. Figure 3.1 identifi es the various parts and controls on a
standard Blitzfi re portable monitor. Parts and controls for a high elevation model are similar.
Elevation Holding
Mechanism
Valve Handle
Serial Number
Carbide Tipped Spike
Folding Leg
Handle
Locking
Knob
Tie Off Point
Pivoting Outlet
Pivoting Inlet
See Section 6
for Blitzfire Oscillators

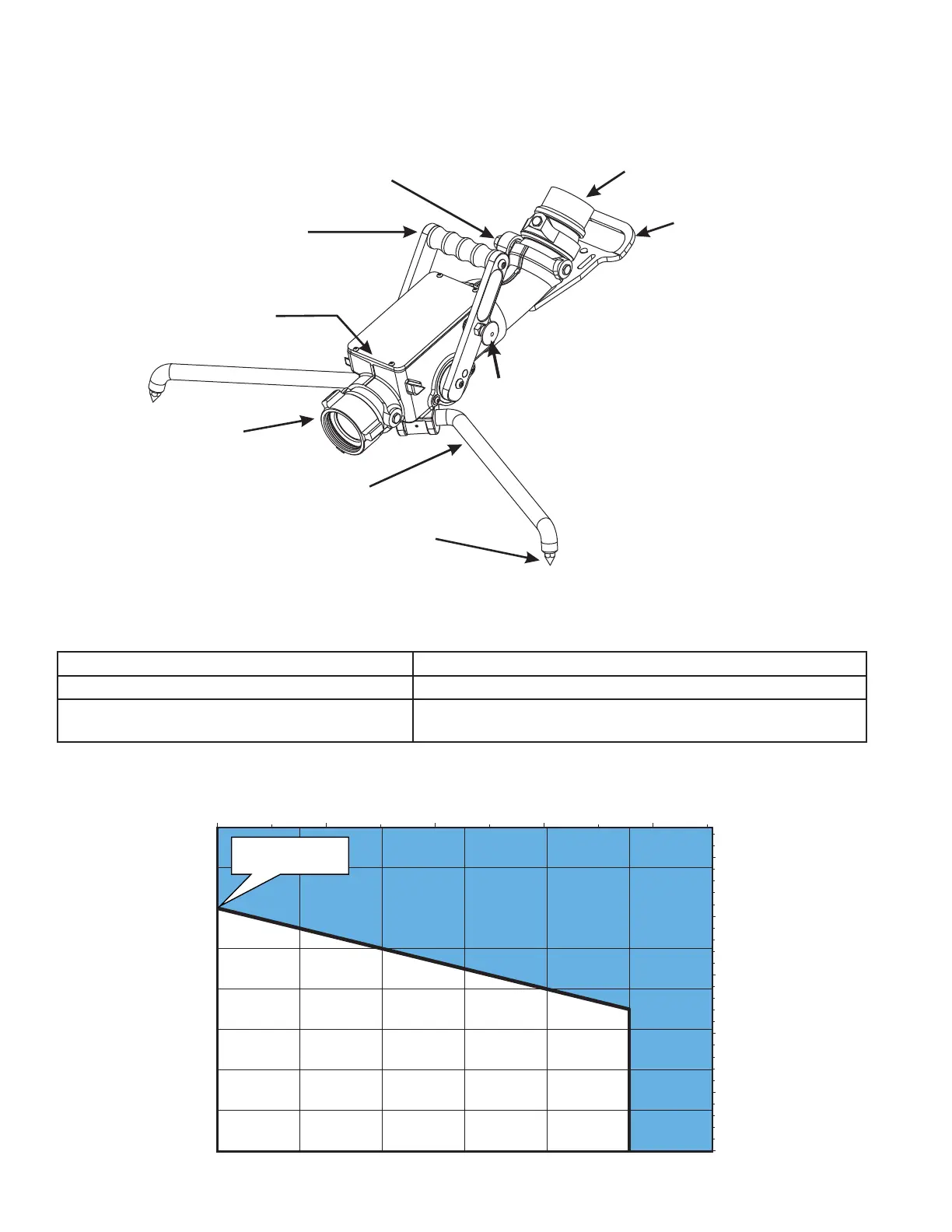

Figure 3.1 Parts and Controls
3.2 SPECIFICATIONS
3.2.1 MECHANICAL
Maximum inlet pressure with valve shut off 300 PSI (20 bar)
Operating temperature range of dampening fl uid 33°F - 120°F (1°C - 50°C)
Materials used Aluminum 6000 series hard anodized MIL8625 class 3 type 2,
stainless steel 300 series, nylon 6-6, nitrile rubber
3.2.2 OPERATING ENVELOPE
0
5
10
15
20
25
600
Pressure (BAR)
0
0
1
00
2
00 300
4
00 500
50
100
150
200
250
300
350
400
Pressure (PSI)
0 500 1000 1500 2000
Maximum Monitor
Inlet Pressure
Flow (L/MIN)
