©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08
5
3.0 GENERAL INFORMATION
UE-060-NF
UE-095-NF
UE-125-NF
UEM-225-BFBF
UEM-450-BFBF
UEP-225-BHBH
UEP-450-BHBH
UEP-450-BJBJ
INLINE EDUCTOR 60 GPM 1.5”NH
INLINE EDUCTOR 95 GPM 1.5”NH
INLINE EDUCTOR 125 GPM 1.5”NH
INLINE EDUCTOR 225 l/min at 11 bar 1.5” BSP
INLINE EDUCTOR 450 l/min @ 11 bar 1.5” BSP
INLINE EDUCTOR 225 l/min @ 10 bar 2.0” BSP
INLINE EDUCTOR 450 l/min at 10 bar 2.0” BSP
INLINE EDUCTOR 450 l/min at 10 bar 2.5” BSP
The eductor proportioning rate ranges from 1/4%,1/2%, 1%, 3%, to 6%.
TFT’s 125 Series eductors can be used with 1/4% or 1/2% class A foam concentrates for wildland, rural and urban fi re suppression on
Class A fuels (wood, paper, combustible materials). On Class A materials, the eductors are intended to be used for direct extinguishment,
overhaul, and wetting of fuels. Some foam concentrates are corrosive, we recommend using only Class A concentrates that have
received USDA and USFS approval.
On class B materials, the eductors are primarily intended for vapor suppression or extinguishment. They can be used with high
viscosity 1%, 3%, 6%, 3x3% and 3x6% Alcohol Resistant Class B concentrates on fl ammable liquids containing polar solvents.
The eductor can also be used with plain AFFF concentrates rated at 1%, 3%, or 6%, with various freeze protected foams, and with
FFFP foam types. These foams generally have a lower viscosity than the calibration viscosity of the TFT eductor and will be inducted
faster than expected resulting in stronger concentrations. While this does not degrade foam quality, it does reduce the operating time
for a given foam supply.
Standard inlet operating pressure is 200 psi (13.8 bar) on 125 Series eductors. Custom designs are also available with inlet operating
pressures of 160 psi (11 bar) and 145 psi (10 bar).

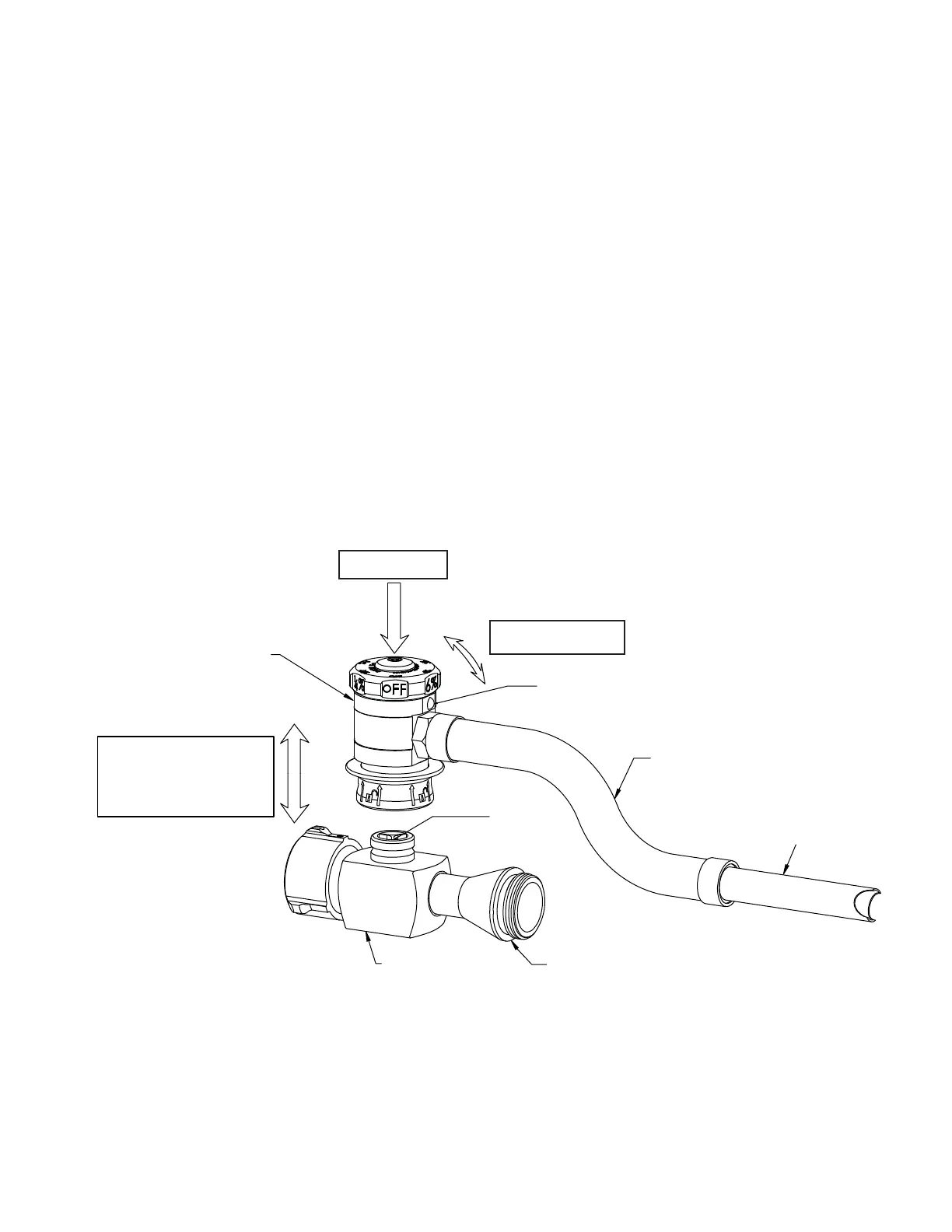

3.1 PART IDENTIFICATION
PROPORTIONING INDICATOR
36" LONG 1" ID CLEAR HOSE
(Not to Scale)
20" LONG 1" OD WAND
(Not to Scale)
EDUCTOR BODY
EXIT
METERING HEAD
RETRACT THE LOCKER RING
TO UNLOCK.
RELEASE THE LOCKER RING
TO ENGAGE.
TURN KNOB TO SET
PROPORTIONING RATE.
PUSH BUTTON TO
BACK FLUSH.
CHECK DISK
Fig 3.1
