CUTTING HEIGHT ADJUSTMENT: (Fig. 3)
OPERATION
6

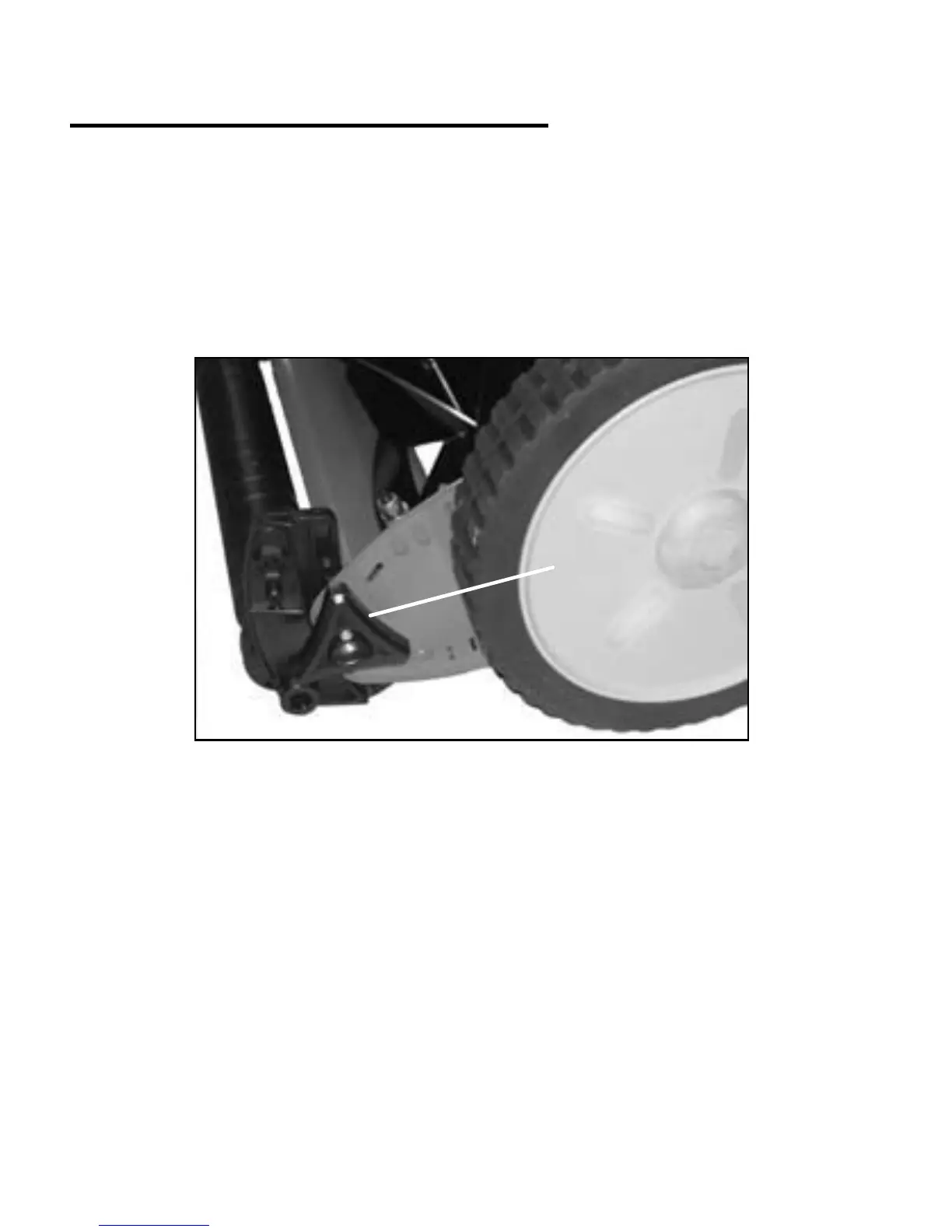

Fig. 3
Height
adjustment nut
1. The cutting height of the 16 in. reel mower can be adjusted from 5/8 – 1-7/8 in. using the roller assembly.
2. For the lowest cutting position, loosen and remove the adjus
t ment nuts on both sides of roller assembly. Position
bolt through the bottom hole of the plastic roller bracket and top hole of the mower side plate.
3. For highest cutting position, loosen and remove the adjustment nuts on both sides of roller assembly. Position bolt
through the top hole of the plastic roller bracket and the bottom hole of the mower side plate.
4. For other cutting heights, position bolts through the preset
height locations.
