2-50

Installing and Setting up the Machine > Installing Software

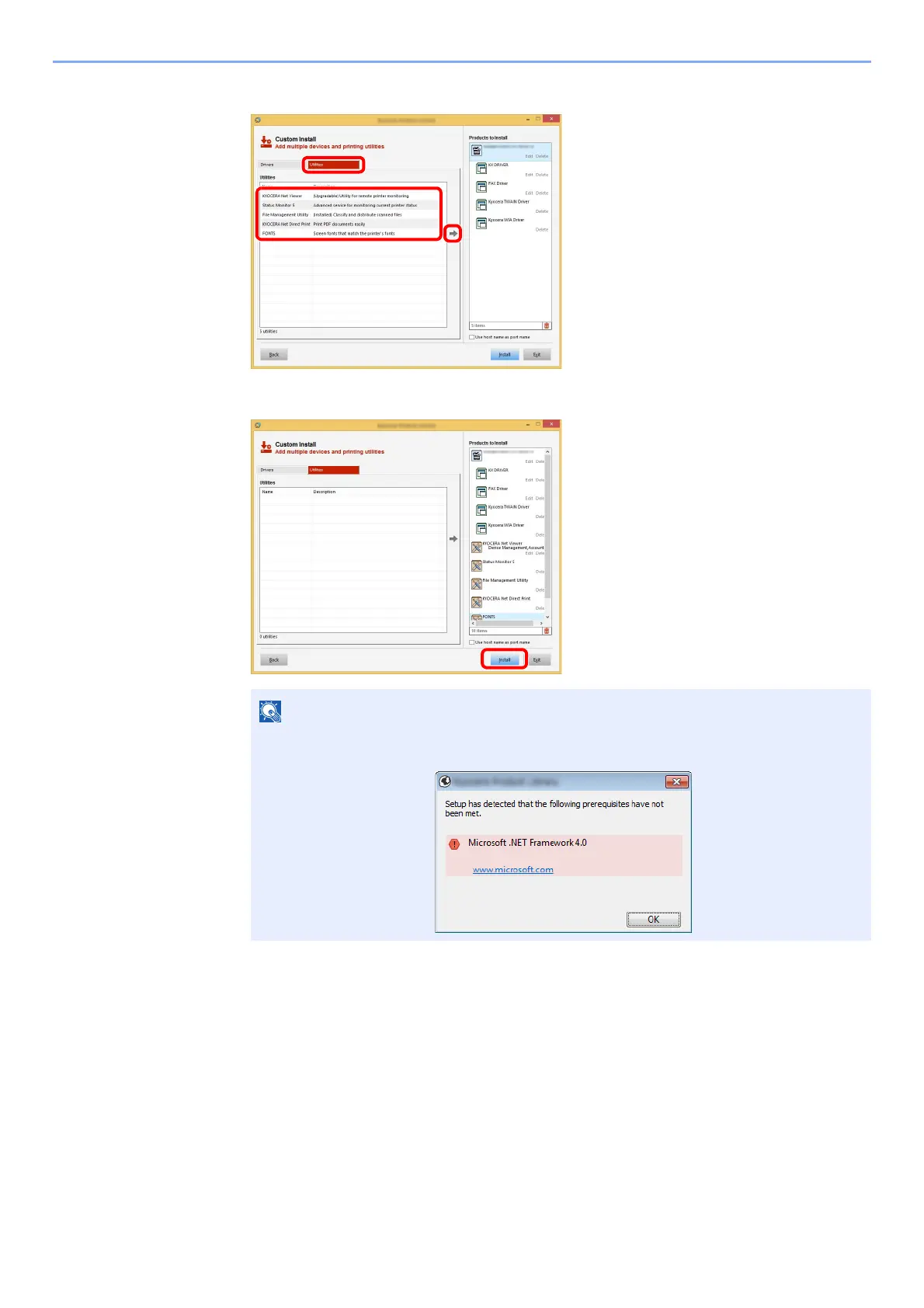

3 Click [Utility] tab and select the utility to be installed.

4 Click [Install].

NOTE

To install Status Monitor on Windows versions preceding Windows 8, it is necessary to

install Microsoft .NET Framework 4.0 beforehand.
