Preparation before Use > Loading Paper

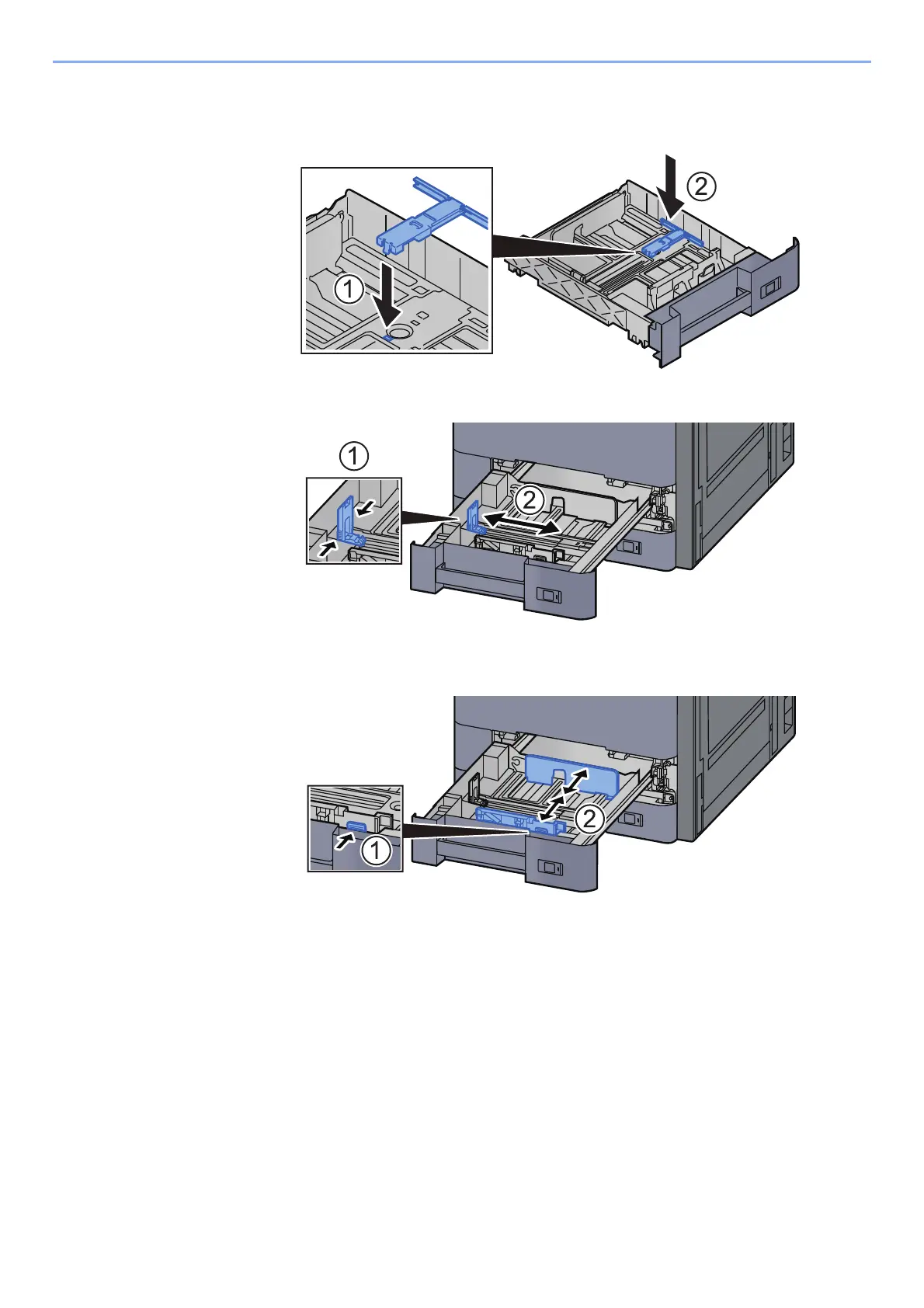

Attach the envelope feed guide as shown in the illustration.

The illustration below shows that the lever of the envelope feed guide is expanded.

Adjust the paper length guide to the paper size required.

Adjust the position of the paper width guides located on the left and right

sides of the cassette.
