TASKalfa 4002i - Page 517

To Next Page

To Previous Page

10-18

Troubleshooting > Regular Maintenance

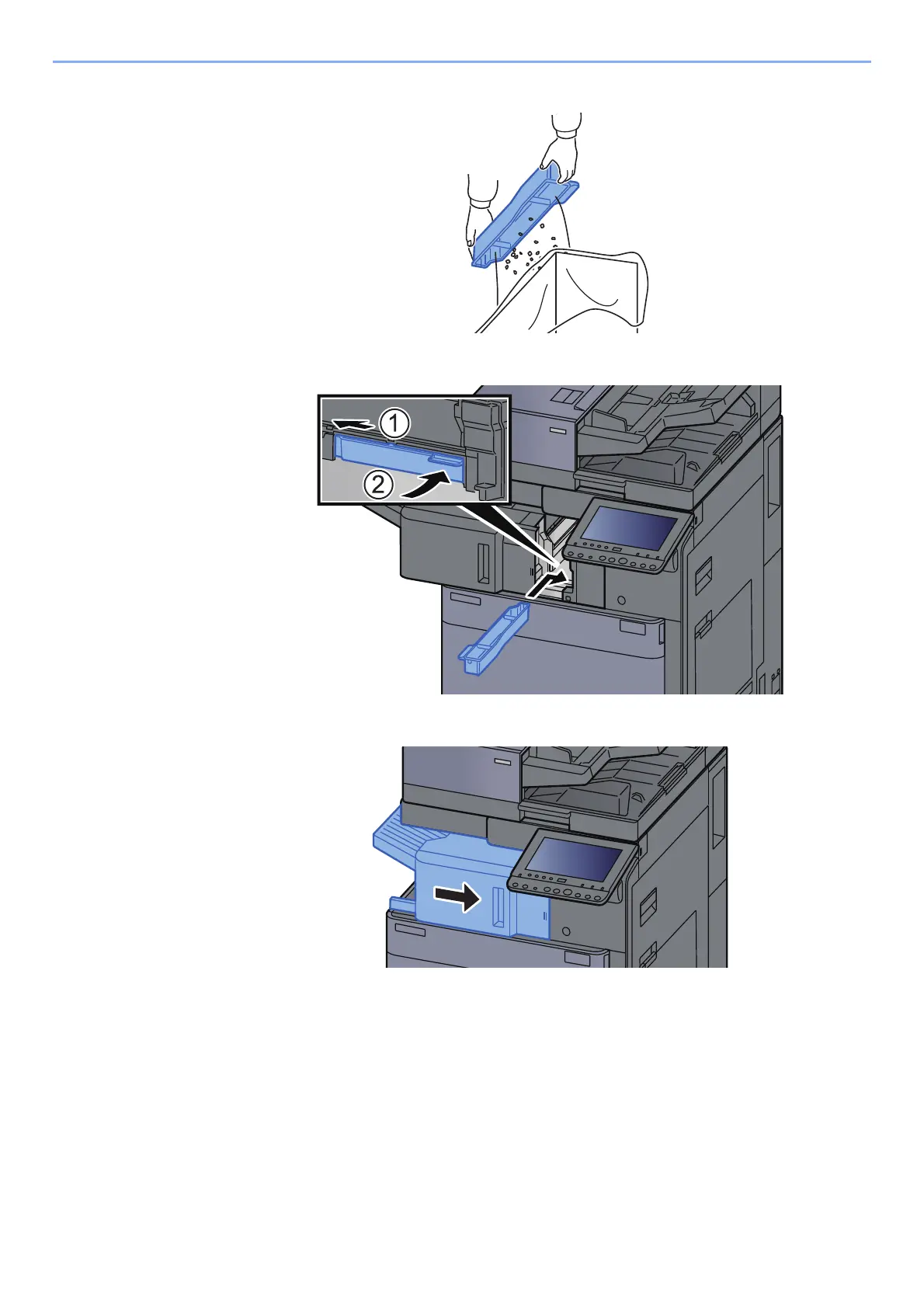

Empty the Punch Waste Box.

Install the Punch Waste Box.

Return the unit to the original position.
