Troubleshooting > Clearing Paper Jams

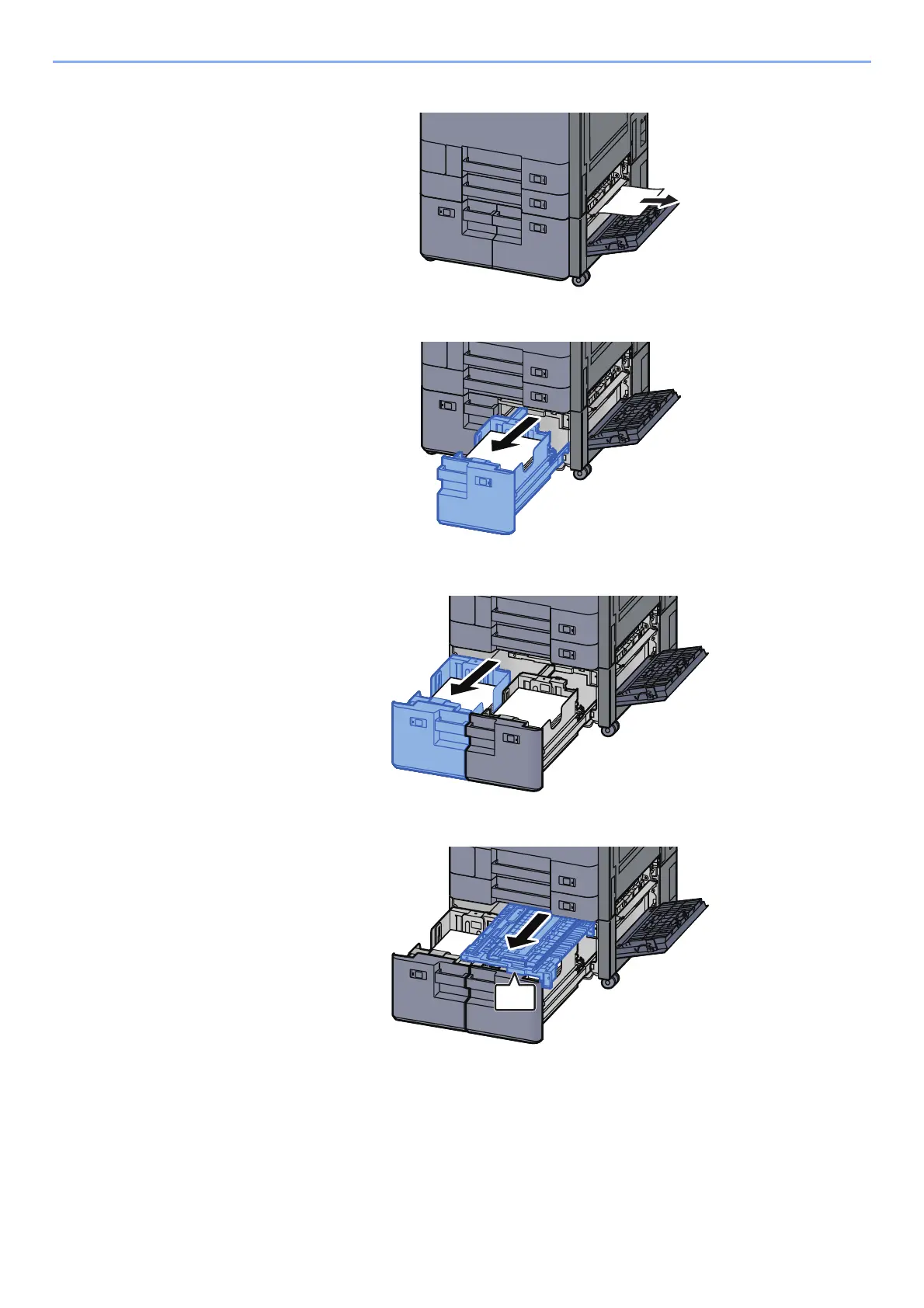

Remove any jammed paper.

Pull Cassette 3 out toward you until it stops.

Pull Cassette 4 out toward you until it stops.

Pull out paper feed unit (B1).
