10-96

Troubleshooting > Clearing Paper Jams

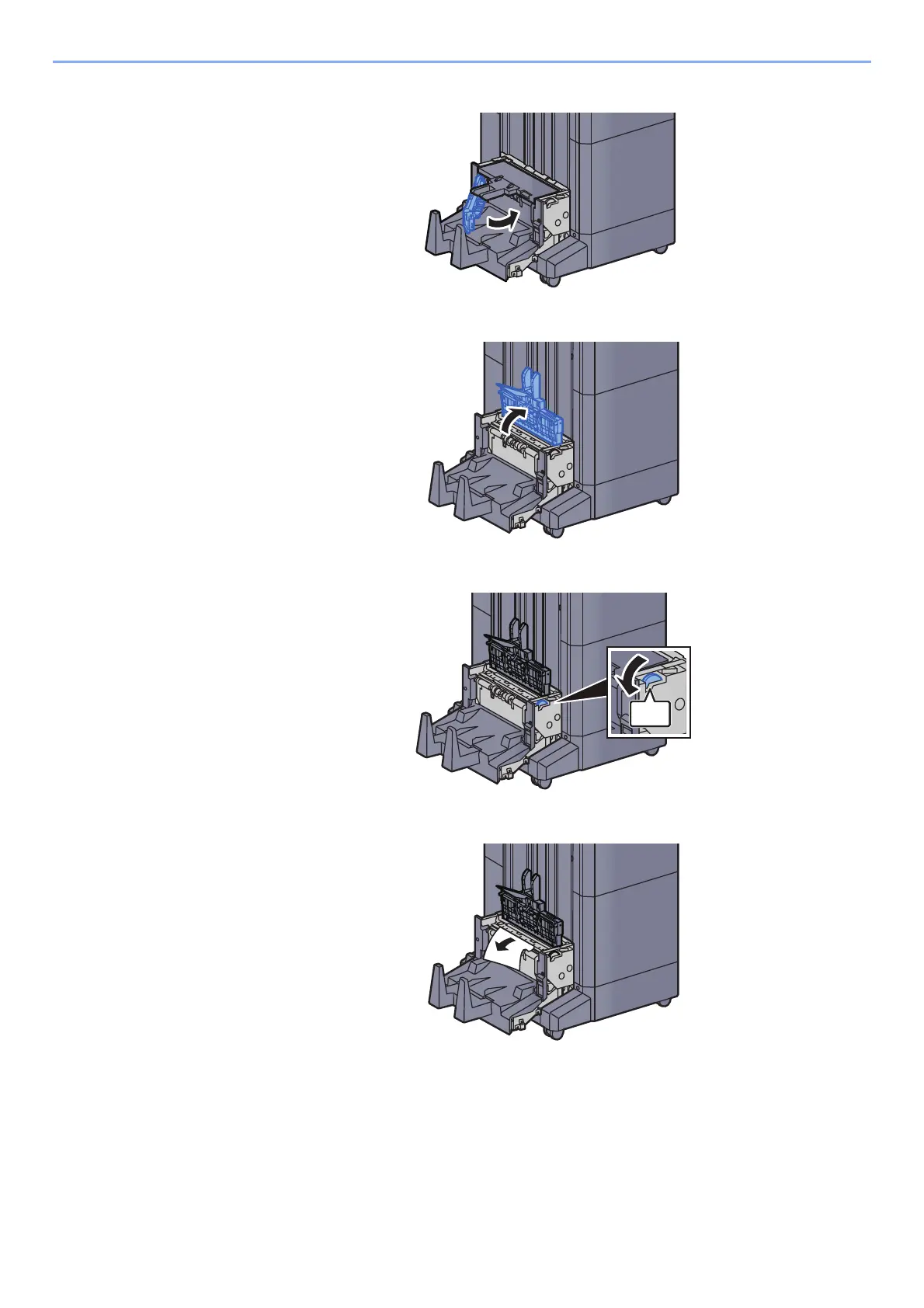

Return the folding unit left cover to the original position.

Open the folding unit top cover.

Turn dial (D9).

Remove any jammed paper.
