Troubleshooting > Clearing Paper Jams

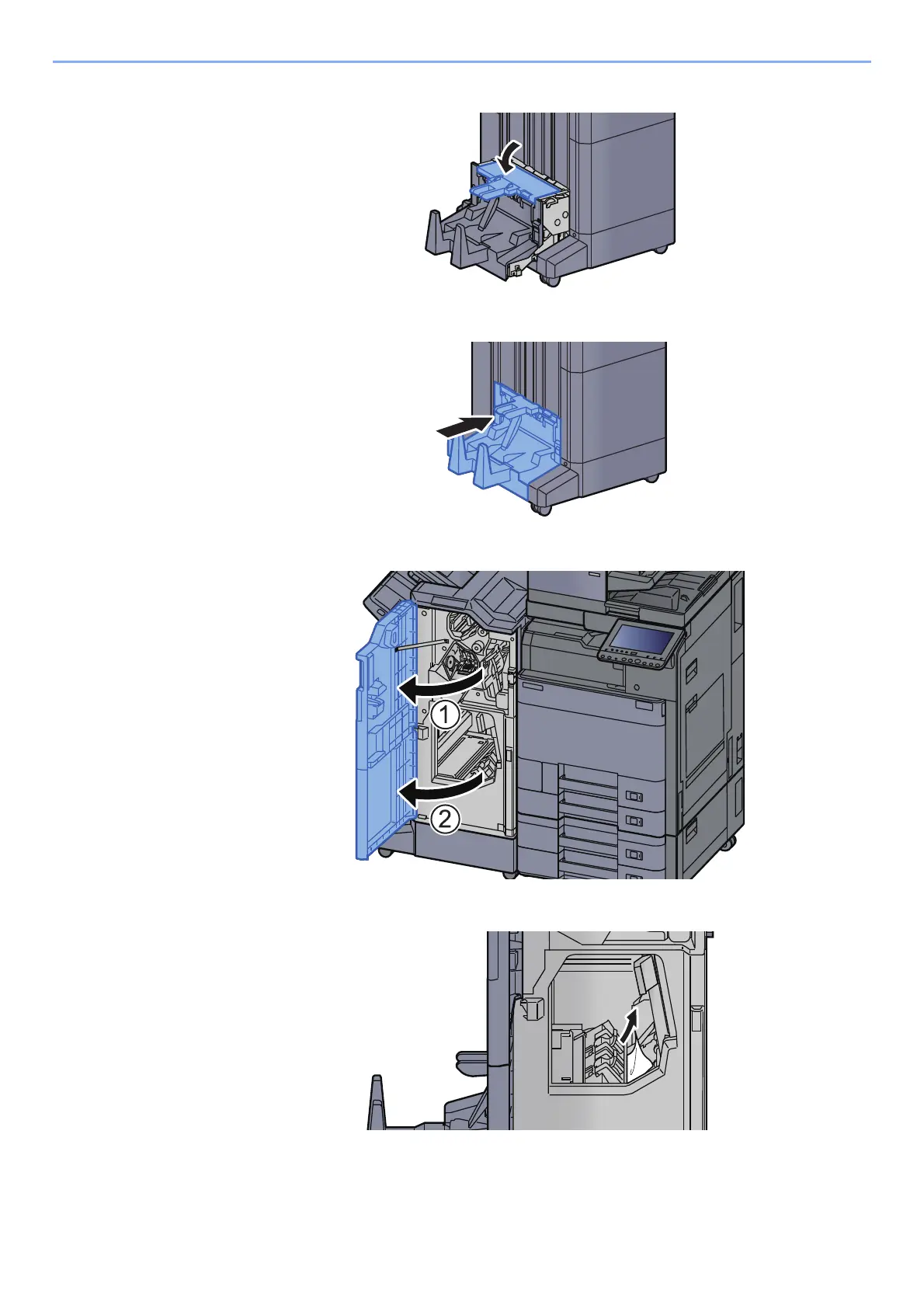

Return the folding unit top cover to the original position.

Return the folding unit to the original position.

Open the finisher front cover 1 and 2.

Remove paper from inside the finisher.
