TASKalfa 6002i - Page 211

To Next Page

To Previous Page

5-5

Operation on the Machine > Loading Originals

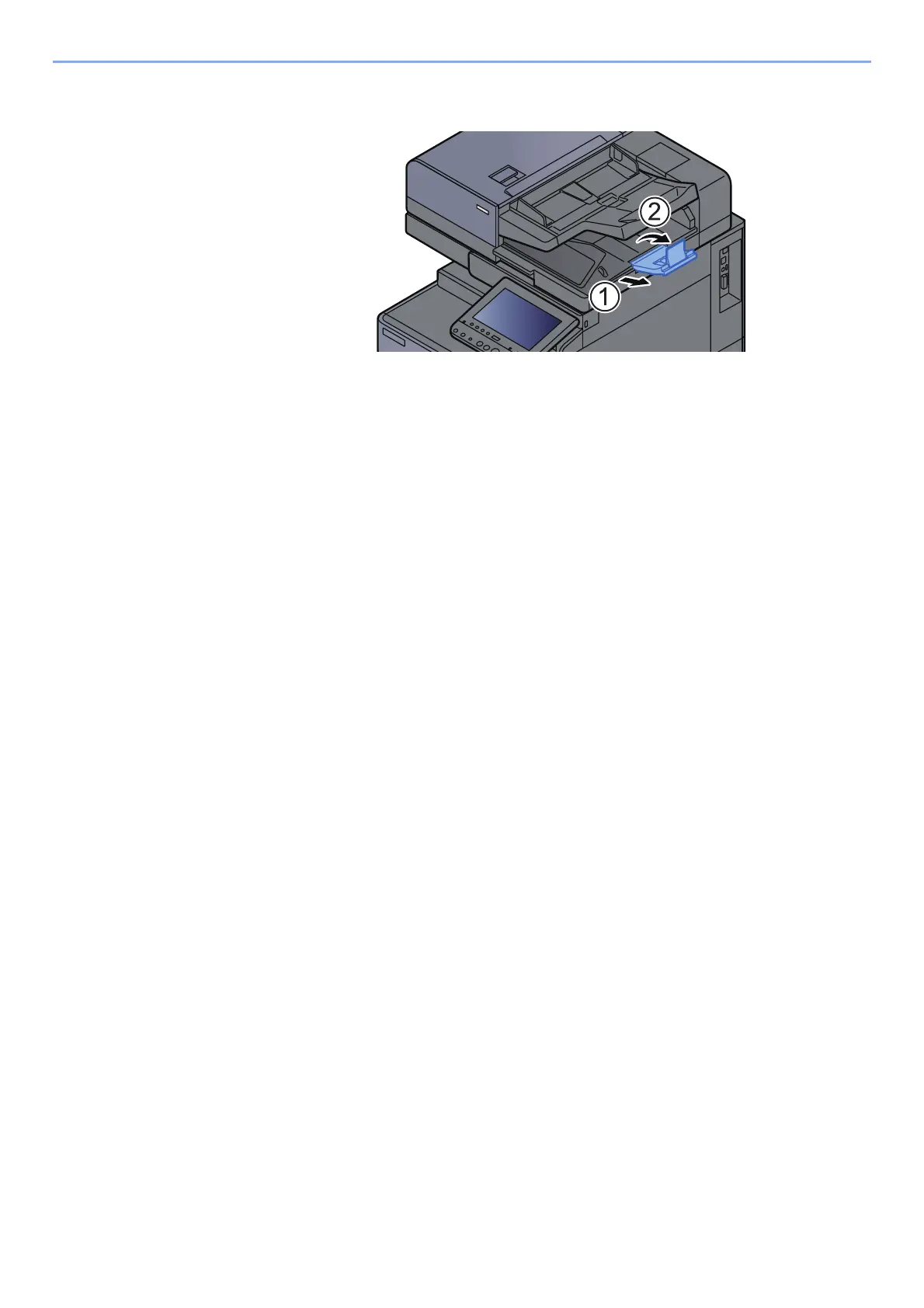

2 Open the original stopper to fit the size of the original set (Original size: B4/Legal or more).

DP-7100/DP-7110
