TASKalfa 6002i - Page 510

To Next Page

To Previous Page

10-11

Troubleshooting > Regular Maintenance

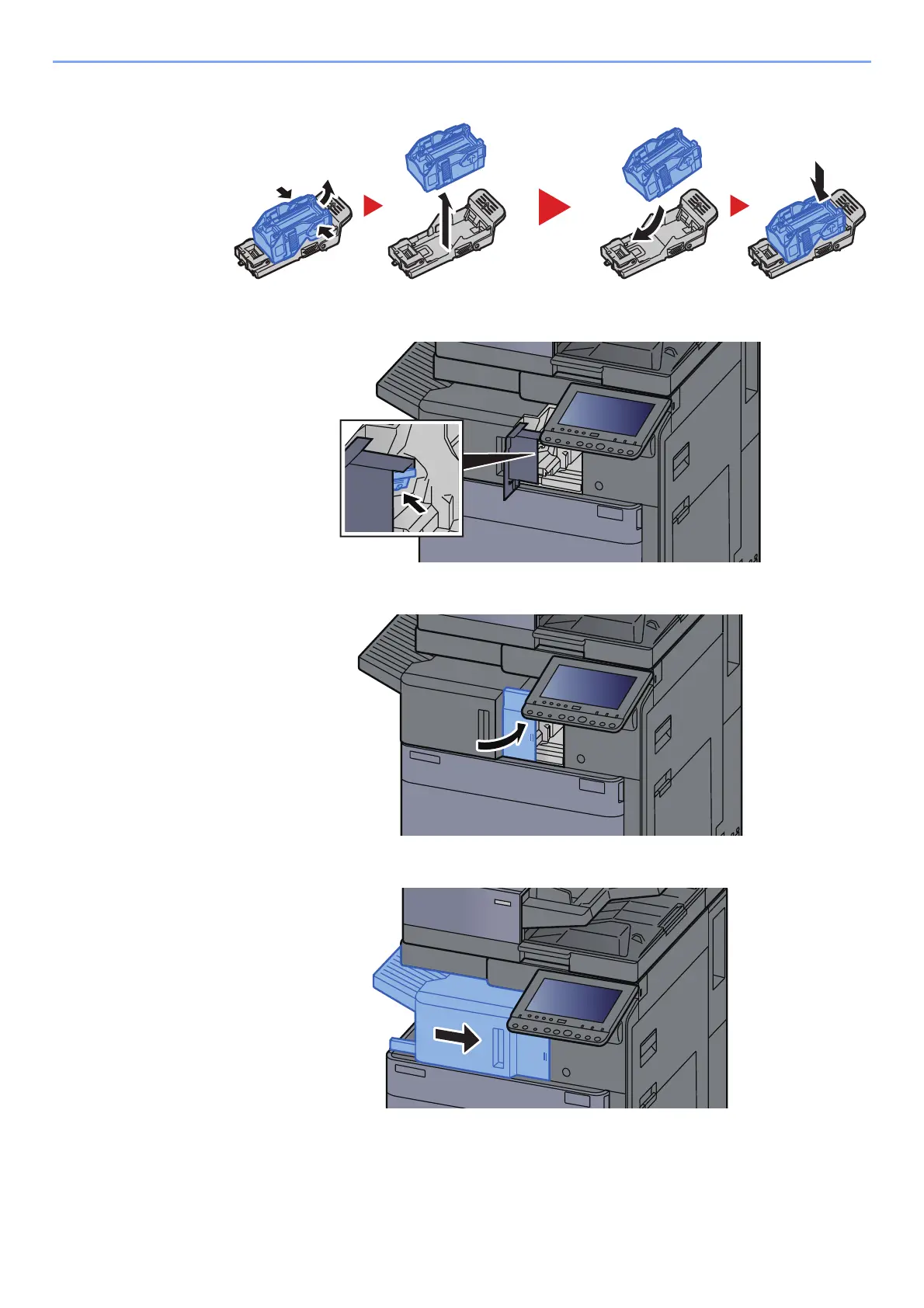

Replace the staples.

Install the Staple Cartridge Holder.

Return the staple cover to the original position.

Return the unit to the original position.
