TASKalfa 6002i - Page 518

To Next Page

To Previous Page

10-19

Troubleshooting > Regular Maintenance

1,000-Sheet Finisher

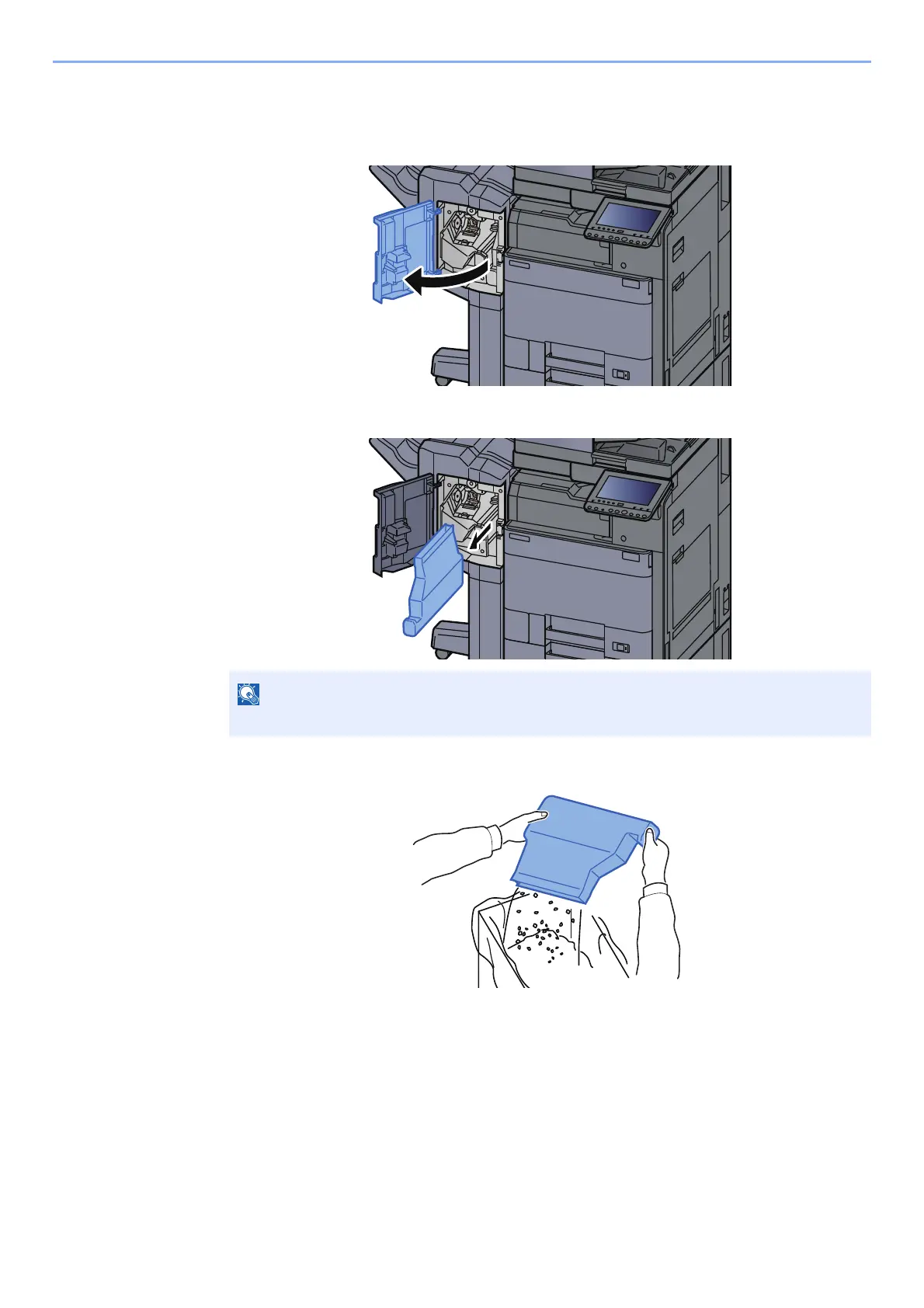

Open the finisher front cover.

Remove the Punch Waste Box.

Empty the Punch Waste Box.

NOTE

Take care not to spill the waste hole punch scraps when removing the box.
