TASKalfa 6002i - Page 520

To Next Page

To Previous Page

10-21

Troubleshooting > Regular Maintenance

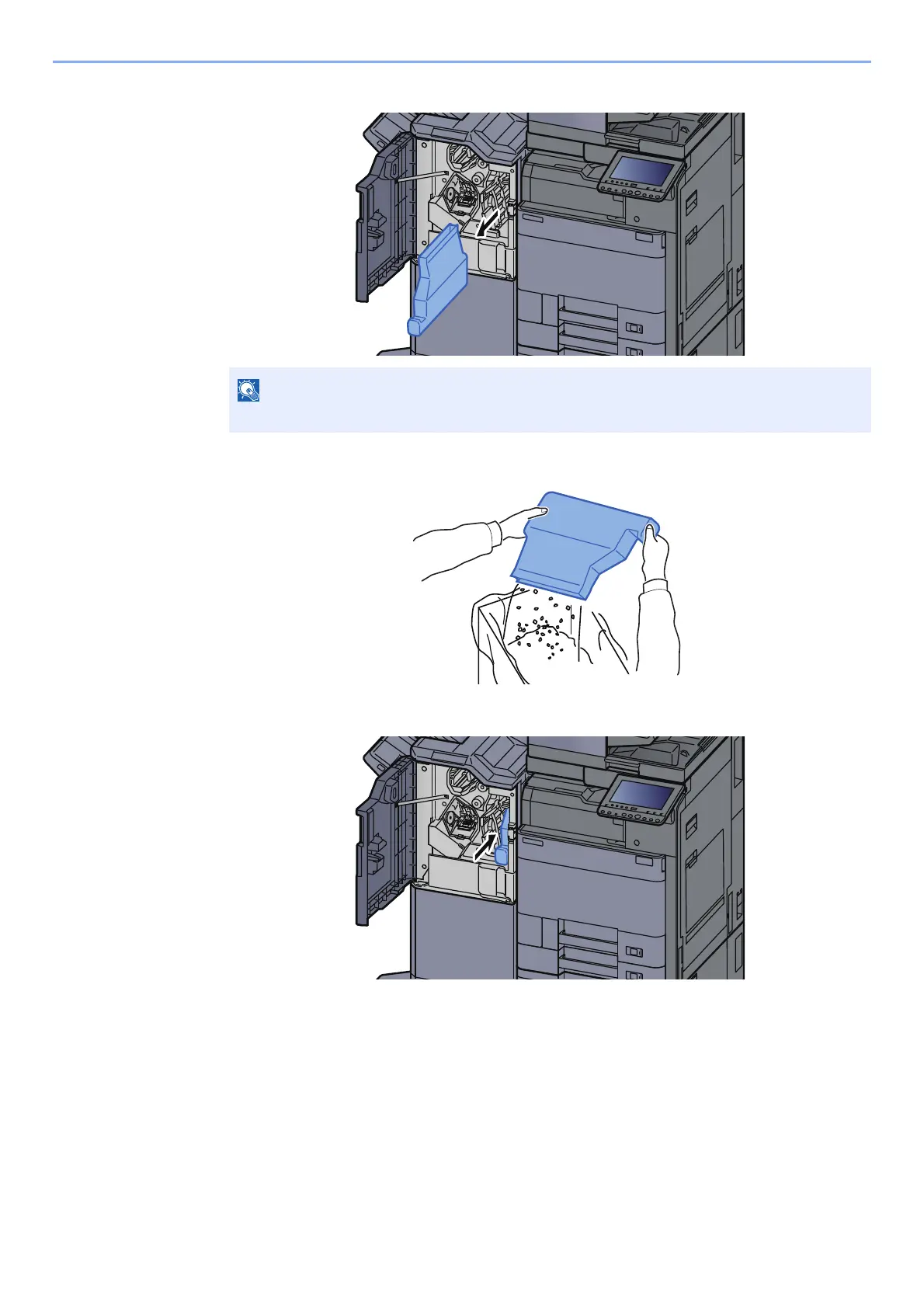

Remove the Punch Waste Box.

Empty the Punch Waste Box.

Install the Punch Waste Box.

NOTE

Take care not to spill the waste hole punch scraps when removing the box.
