TASKalfa 6002i - Page 560

To Next Page

To Previous Page

10-61

Troubleshooting > Clearing Paper Jams

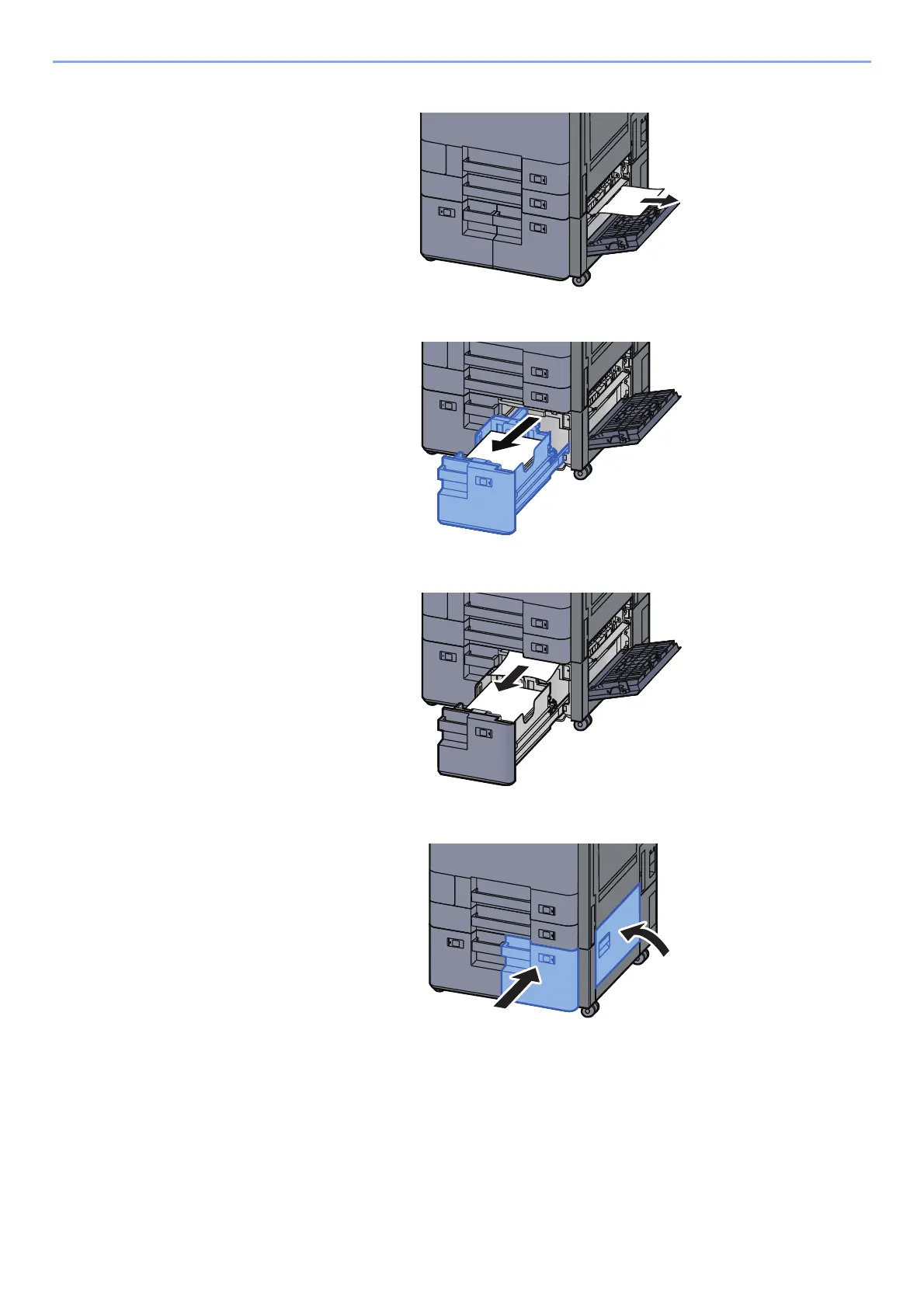

Remove any jammed paper.

Pull Cassette 3 out toward you until it stops.

Remove any jammed paper.

Push Right Cover 2 and Cassette 3 back in.
