TASKalfa 6002i - Page 578

To Next Page

To Previous Page

10-79

Troubleshooting > Clearing Paper Jams

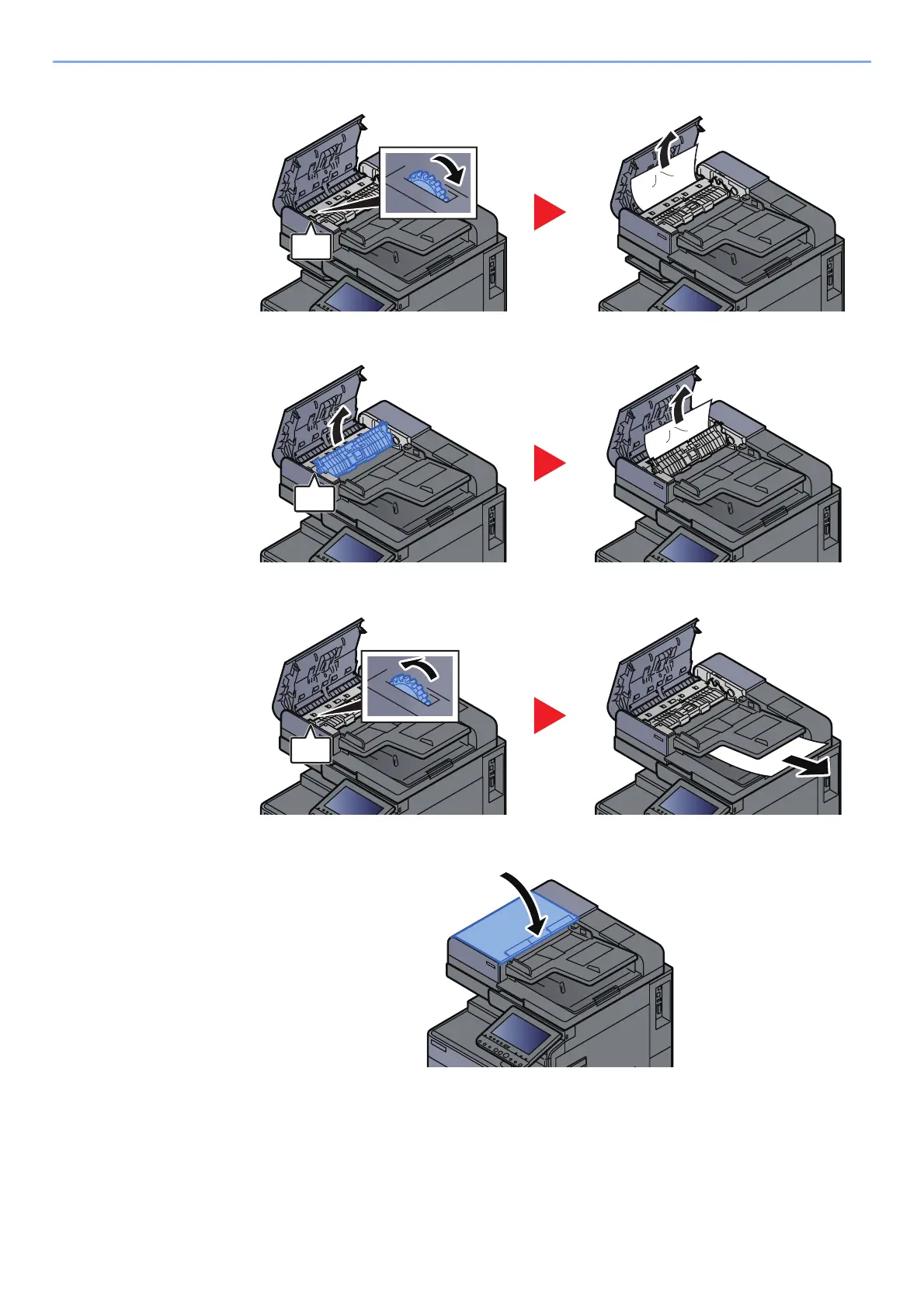

Turn dial (C1) to remove any jammed paper.

Open reverse unit (C2) and remove any jammed paper.

Turn dial (C1) to remove any jammed paper.

Return the cover to the original position.
