10-105

Troubleshooting > Clearing a Staple Jam

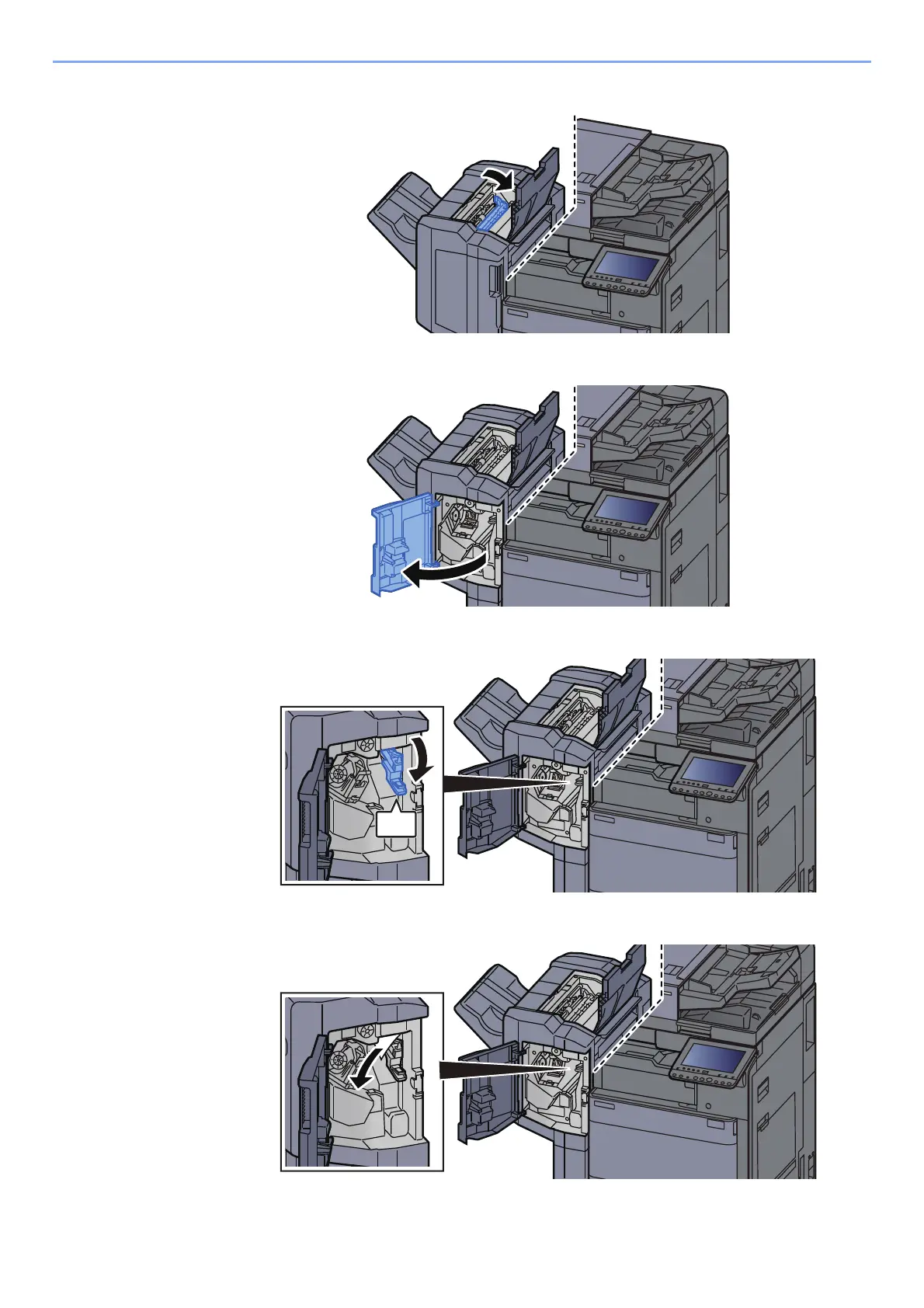

Return the conveyor guide (D2) to the original position.

Open the finisher front cover.

Open the conveyor guide (D1).

Remove any jammed paper.
