Troubleshooting > Clearing a Staple Jam

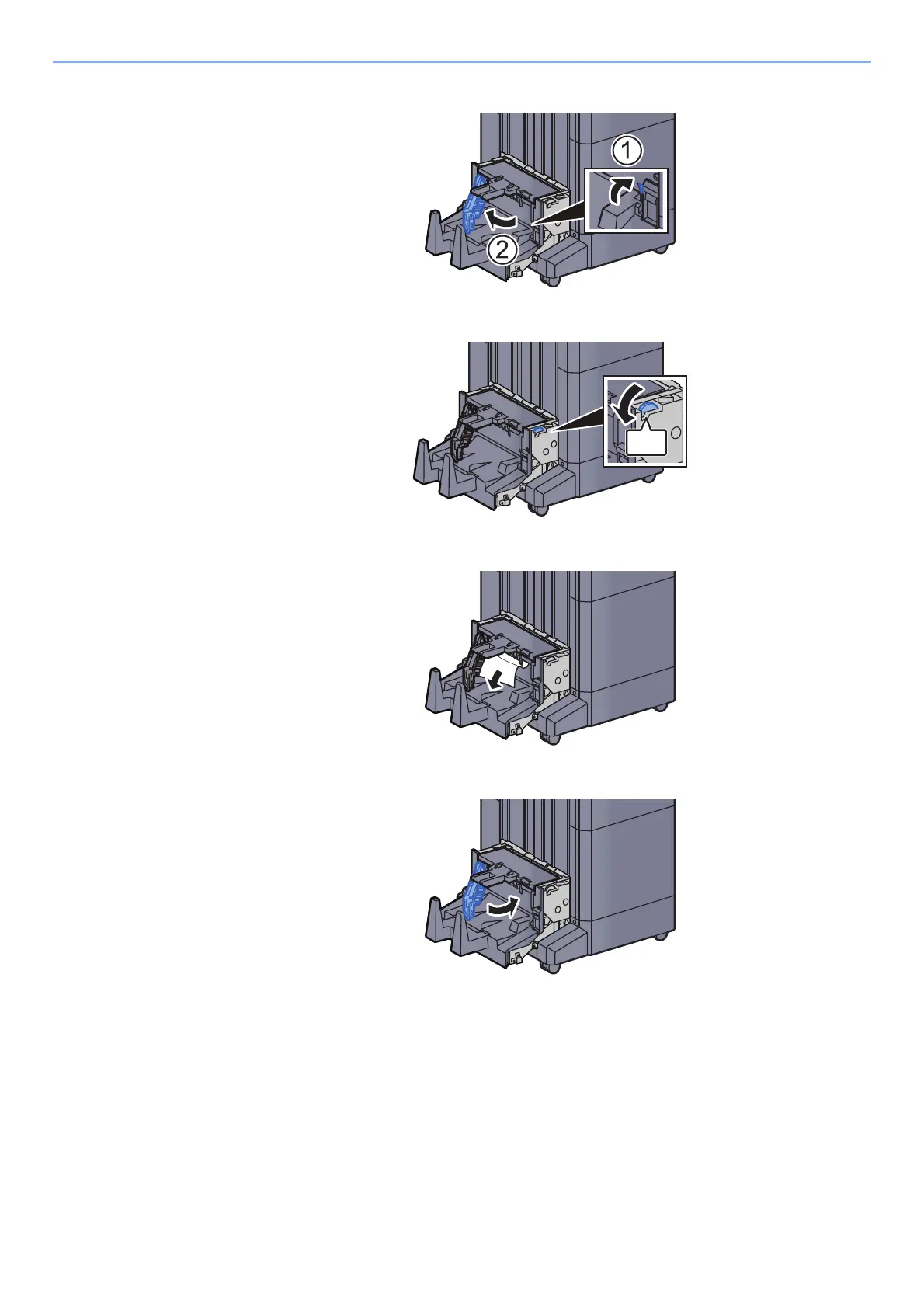

Open the folding unit left cover.

Turn dial (D9).

Remove any jammed paper.

Return the folding unit left cover to the original position.
