LindWash 30 -- 38

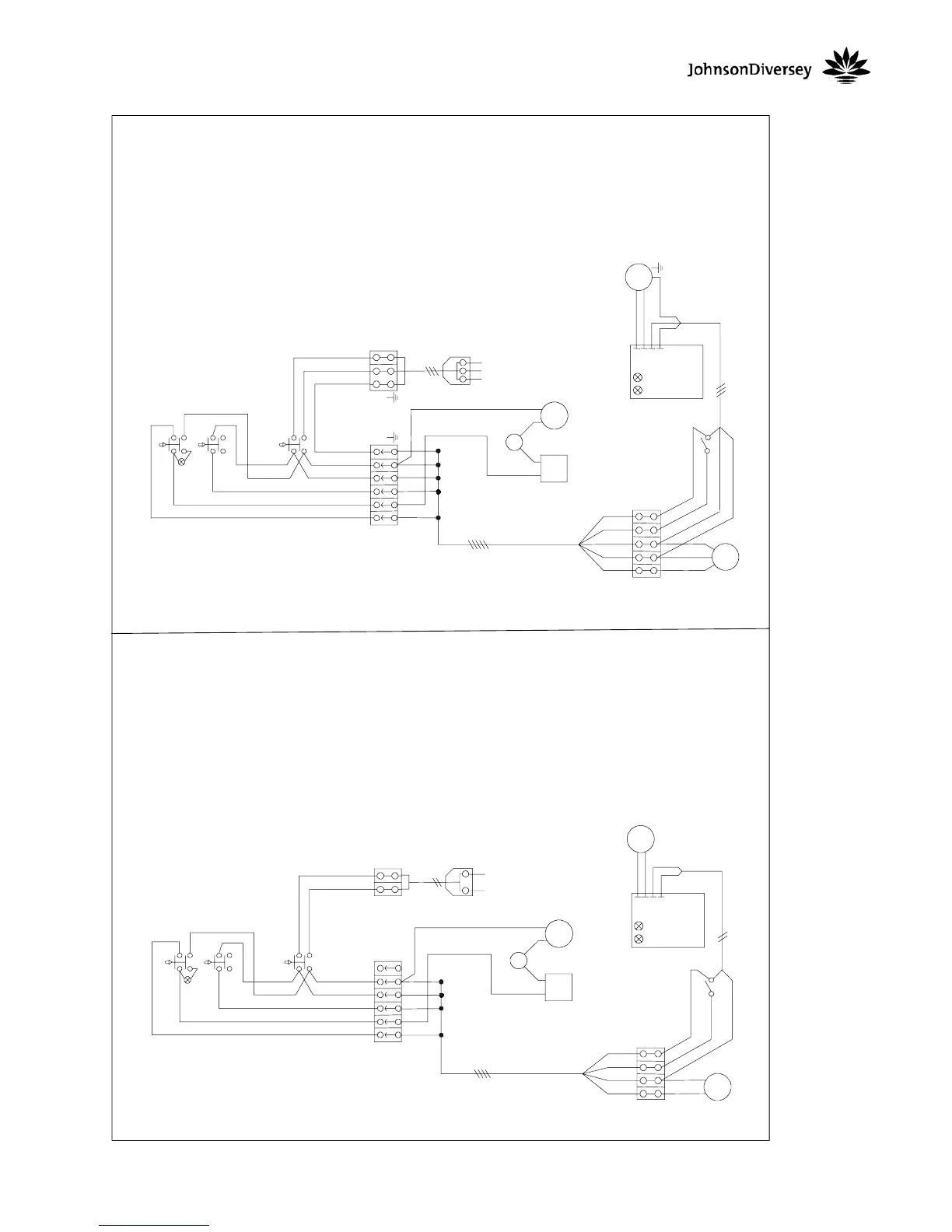

WIRING DIAGRAM V.230 -- 240/50 V.100/55 Class II
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
-- Terminal block -- Main switch -- Vacuum switch -- Pump switch -- Wires kit electric panel -- Wires kit upper housing -- Pressostat
(for pump version)
-- Pump or Electro valve -- Thermal protector pump -- Terminal block -- By --pass vacuum motor -- M i c r o s w i t c h -- Wires kit base -- Circuit board -- Brush motor
LindWash 30 -- 38
WIRING DIAGRAM V.120/60 Class I
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
-- Terminal block -- Main switch -- Vacuum switch -- Pump switch -- Wires kit electric panel -- Wires kit upper housing -- Pressostat
(for pump version)
-- Pump or Electro valve -- Thermal protector pump -- Terminal block -- By --pass vacuum motor -- M i c r o s w i t c h -- Wires kit base -- Circuit board -- Brush motor
WHITE
Y/G
BLACK
RED
BLUE
GREENBROWN
WHITE
Y/G
BLACK
RED
WHITE
WHITE
Y/G
WHITE
Y/G
BLACK
RED
BROWN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WHITE
WHITE
BLACK
RED
BLUE
GREEN
WHITE
BLACK
WHITE
RED
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
