5

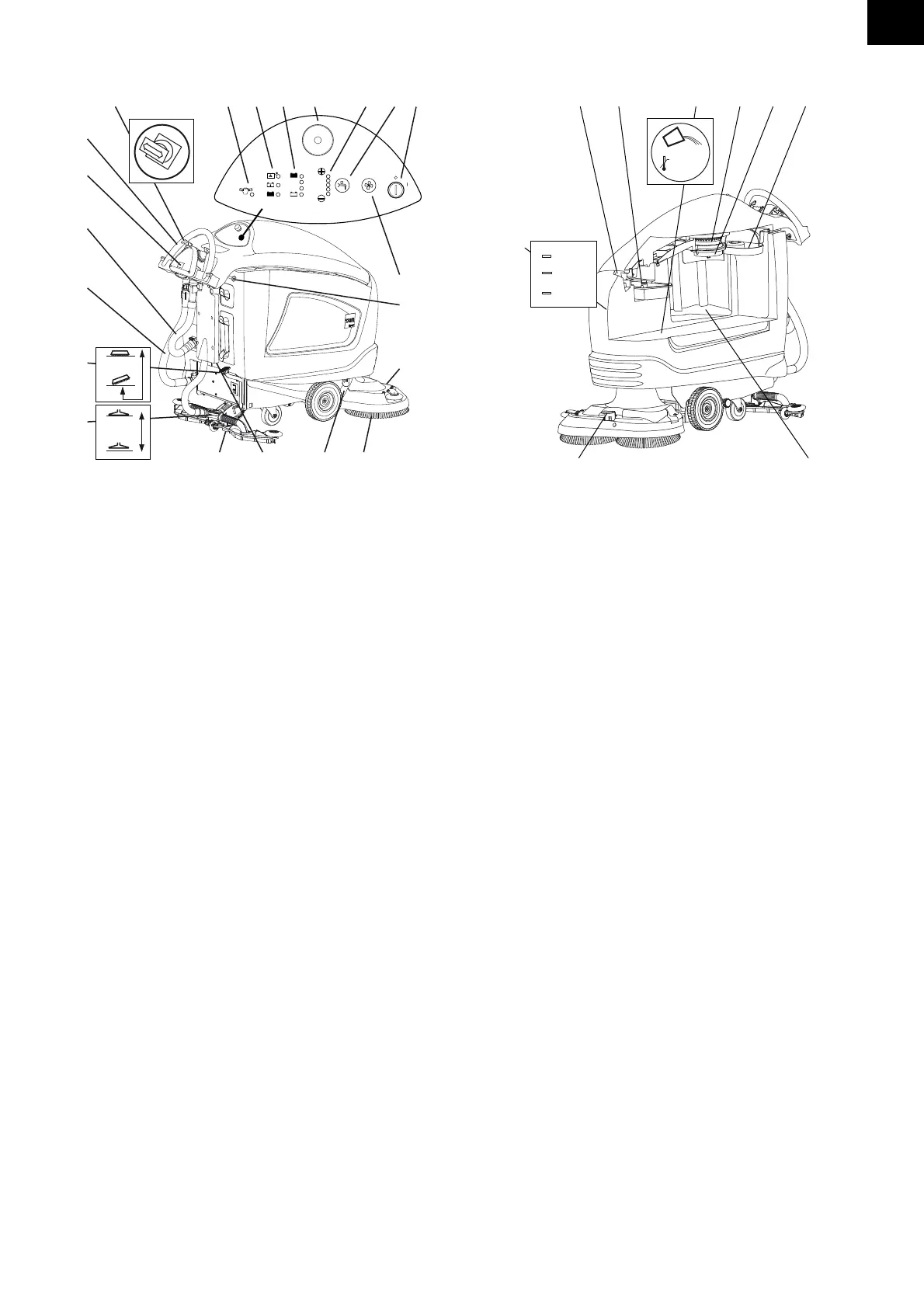

Structural layout
1 Driving switch
2 Driving handle
3 Operating hour counter (option)
4 Drain hose recovery tank (red)
5 Drain hose cleaning solution (blue)
6 Foot pedal tool
7 Foot pedal suction nozzle
8 Suction nozzle
9 Charging plug for external battery charger
10 Lock battery compartment (optional)
11 Tools (brushes, pads, etc.)
12 Brush unit
13 Nozzle holder
14 Suction unit button (ON/OFF)
15 Key switch
16 Cleaning solution supply button (ON/OFF)
17 Cleaning solution supply amount button (+/-)
18 Emergency stop
19 Battery indicator
20 Battery charging level indicator
21 Service display
22 Tool unlocking
23 Recovery tank
24 Dirt sieve
25 Float (Overfill protection recovery tank)
26 Suction filter
27 Fresh water tank
28 Dosage aid
29 Tank cover release
30 Filling level indicator
121201918171615
2
3
4
14
13
12
5
6
7
89 1011
Start
max.60°C
max.140°F
MAX
3/4
1/2
2829
30
22 23
27 26 25 24
EN
