2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
 NOTICE
+ First loosely screw all parts together and check that they  t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have di culty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the  le.

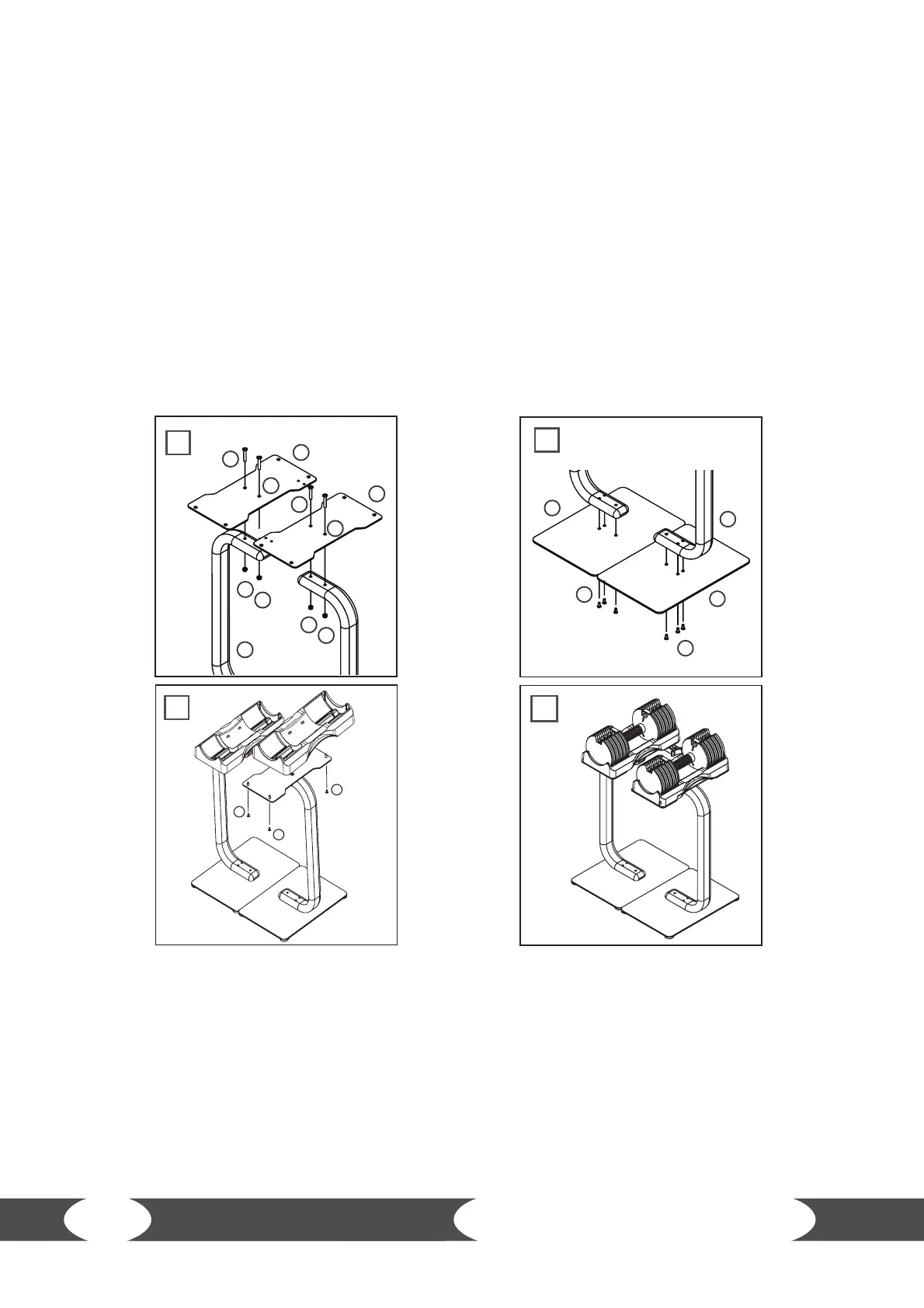

Step 1
Attach the dumbbell tray plates (2) to the leg stands (3) with four long screws (6) and four nuts (8).
Tighten with a screwdriver.
Step 2
Attach the bottom plates (1) to the leg stands (3) with six screws (9). Tighten with a screwdriver.
