Taurus TF-PS-90 - Page 24

24
Single Pulley
Step 8

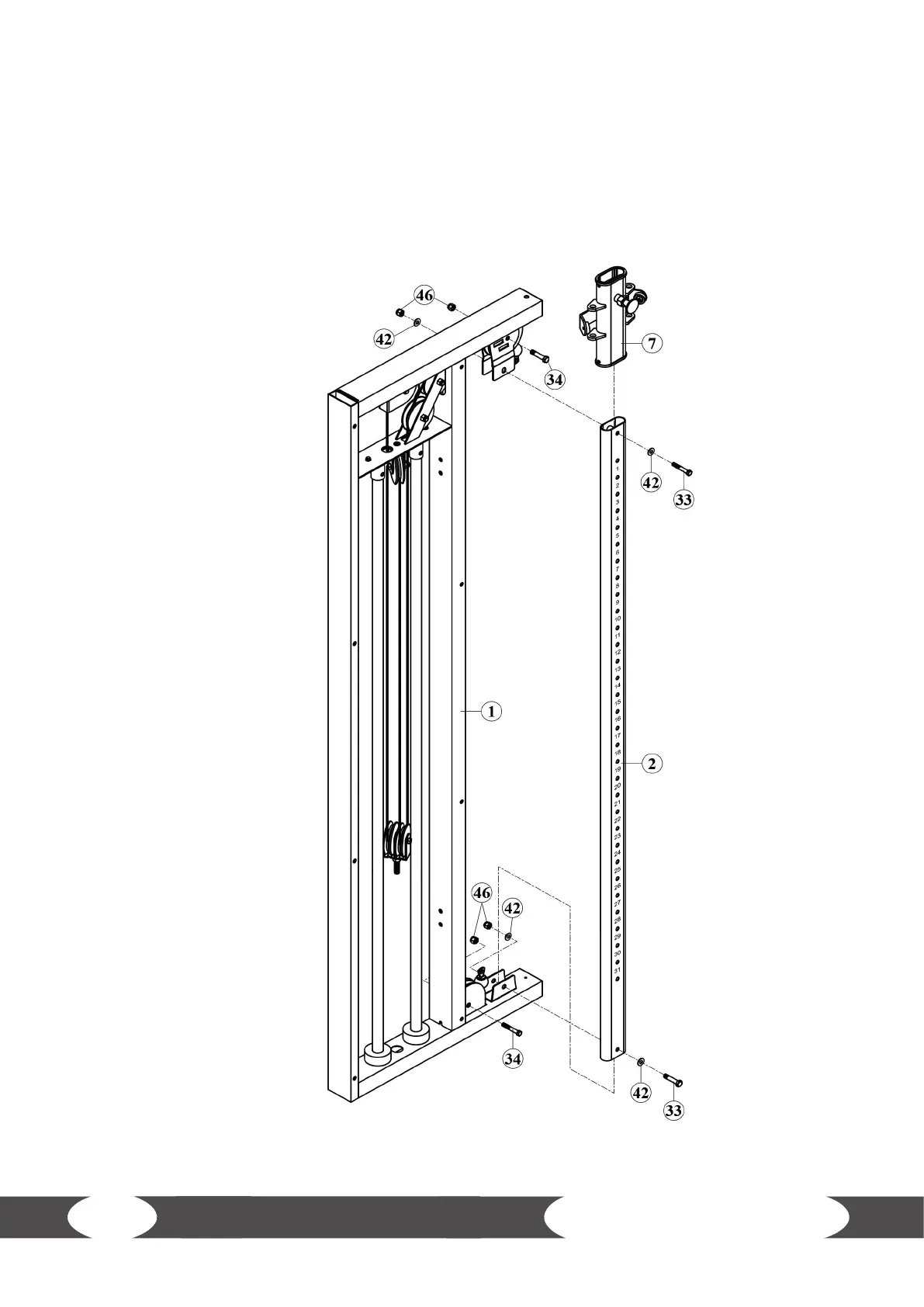

1. Turn the main frame (1) around.
2. Reattach the upright frame (2) along with the cable height adjuster (7) to the main frame (1)
using the bolts, washers and nuts previously removed in step 7.
3. Refasten the two bolts (34) and the two nuts (46) on the main frame (1).
