Taurus TF-PS-90 - Page 25

25

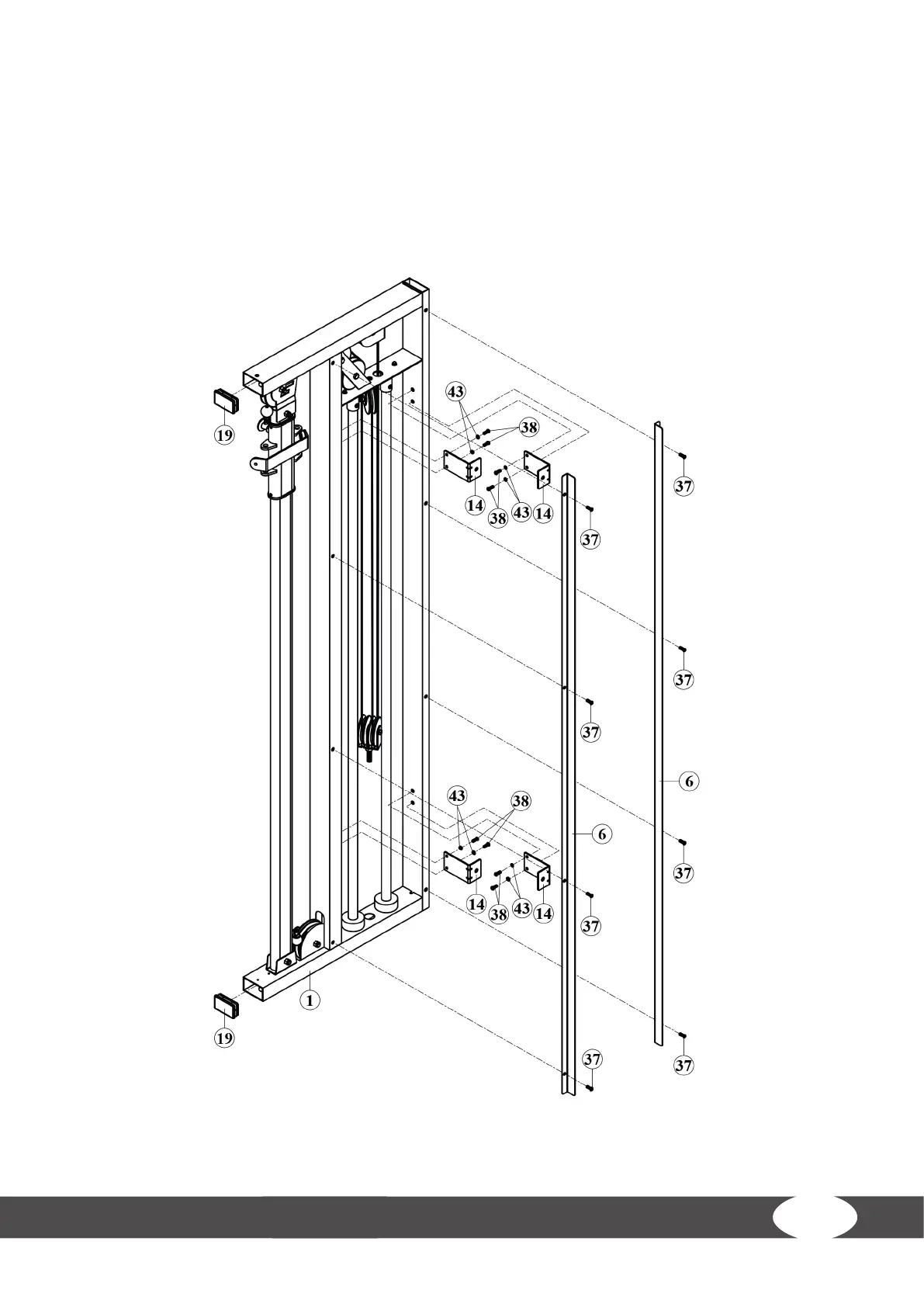

Step 9
1. Fasten the two rear covers (6) to the main frame (1) with eight screws (37).
2. Fasten the four L-shaped brackets (14) to the main frame (1) with eight screws (38) and eight
spring washers (43).
3. Place the two end caps (19) on the main frame (1).
