INTERFACOM, S.A.
Inst TX52_TX40_007_en.doc 4
TX40 can be fit directly on the panel, or on many types of bracket.
The connector cover is prepared to make holes for self threading screws, whether with two
screws onto the front of the dashboard, or to a specific bracket
Cables can go out to the back or to the bottom of the device. Leave no cables in sight

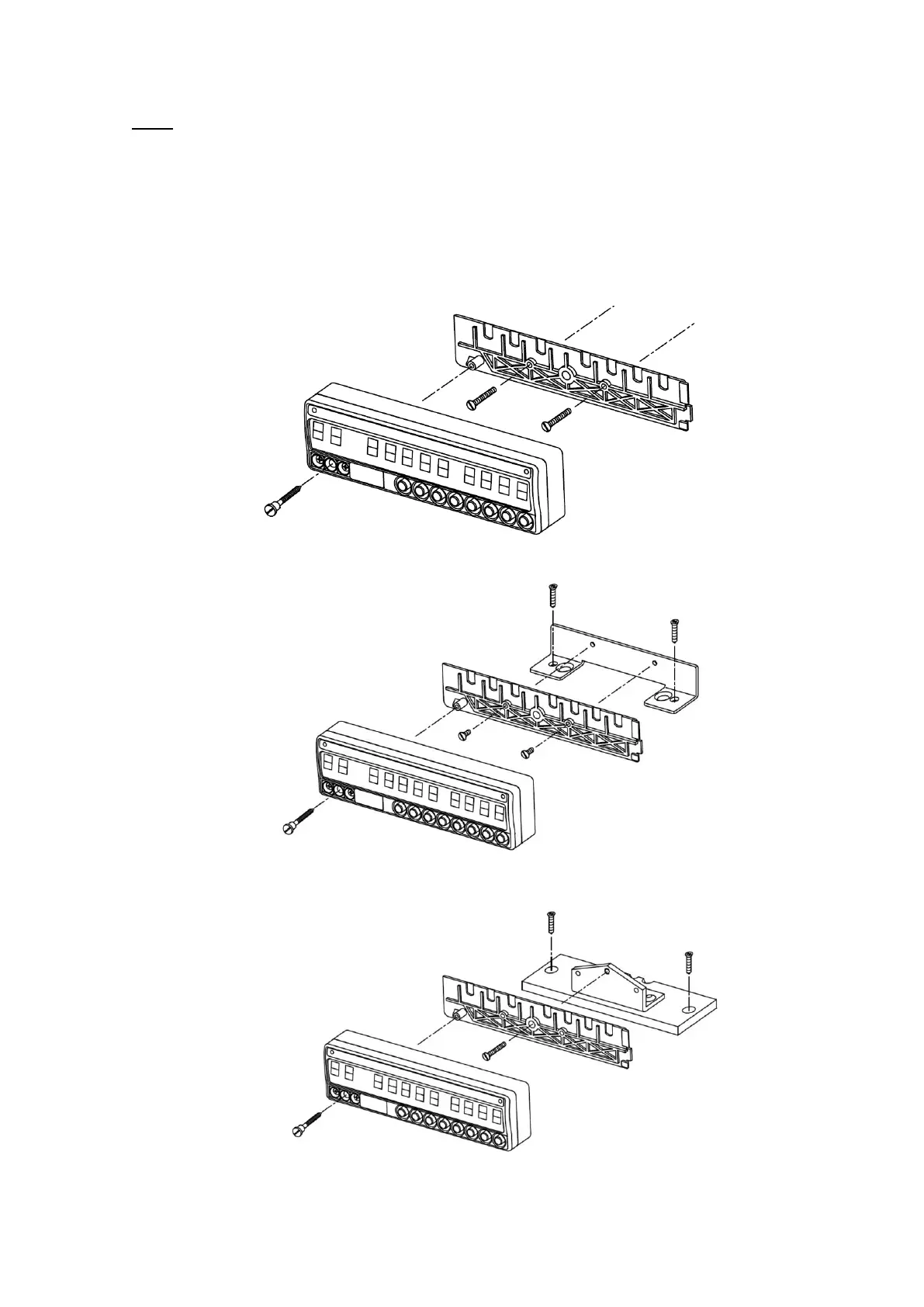

Fitting onto a vertical surface
Fitting on top of the dashboard with a bracket
Adjustable tilt bracket
