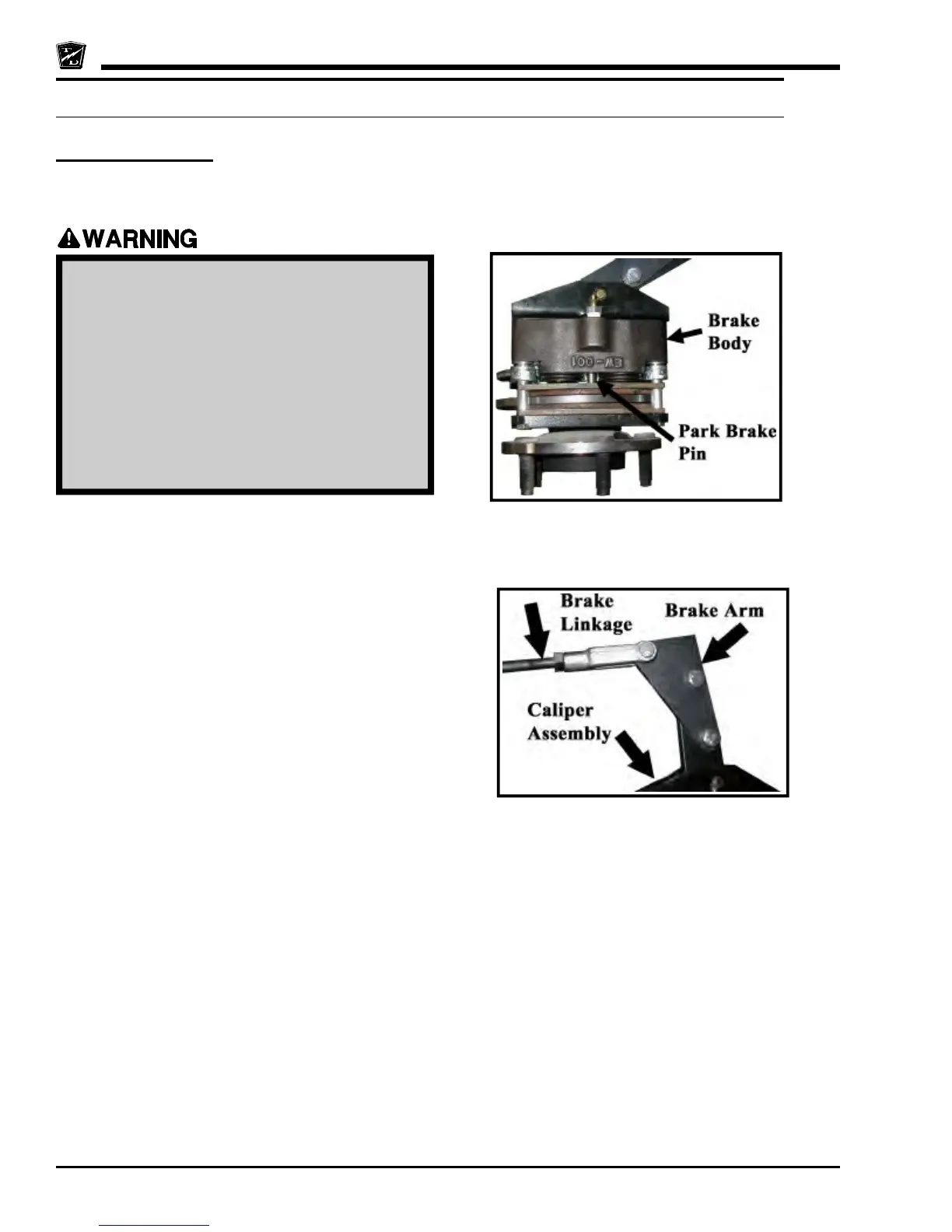

ADJUST THE PARKING BRAKE
Wheel Park Brake
The parking brake is actuated through a pin in the center of the rear left and right brake body on the rear
axles.
6. Release the park brake.
7. Loosen the jam nuts on the park brake linkage
that is connected to the brake arm on the caliper
assembly.
8. Tighten the brake linkage until it is difficult to rotate
the brake arm clevis pin and then loosen the
linkage 1-turn.
9. Tighten the jam nuts on the park brake linkage.
10. Repeat this procedure for both rear wheels.
11. Set the park brake.
12. Reconnect the main positive and negative cables
at the batteries.
13. Remove blocks from behind the wheels.
14. Release the park brake and test drive the vehicle.
1. Make sure the key-switch is in the “OFF”
position, then remove the key.
2. Place the forward-reverse switch in the
center “OFF” position.
3. Confirm the electric park brake is set.
4. Place blocks under the front wheels to
prevent vehicle movement.
5. Disconnect the main positive and
negative cables at the batteries.
