Tazz 18493 - ILLUSTRATED PARTS BREAKDOWN - ENGINE AND ROTOR GROUP (MODEL 18493)

Operator’s Manual
Chipper Shredders
23
Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5

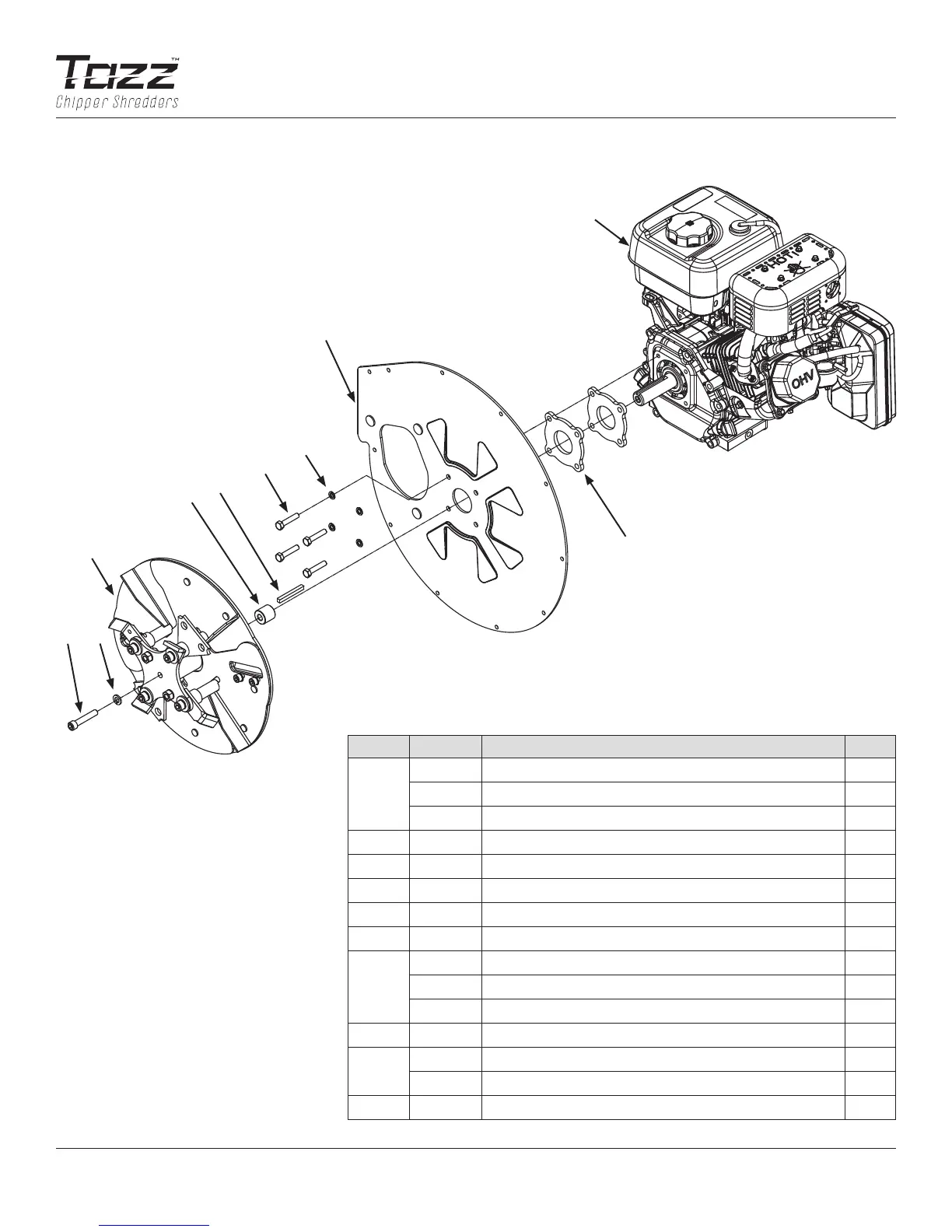

ILLUSTRATED PARTS BREAKDOWN  ENGINE AND ROTOR GROUP MODEL 18493
ITEM # PART # DESCRIPTION QT Y.
1
13434
ENGINE HRZ 1 IN SHAFT 212CC VPR R210 EPA3 (18493)
1
---
ENGINE 6 HP BRIGGS INTEK HORZ SHAFT (22753)
1
---
KOHLER 196CC RH265 (22754)
1
2 20828
WELDMENT PLATE ENGINE
1
3 21959
ASSEMBLY ROTOR HAMMERS AND KNIVES METRIC
1
4 905100
KEY 1/4 SQ X 2-1/4 PARALLEL PLN
1
5 6516100
BOLT 3/8-24 X 2 SHCS GR8 BLK ZN
1
6 1916965
WASHER LOCK SPRING 3/8
1
7
813
BOLT 5/16-24 X 1-1/4 HH GR8.8 ZN (18493)
4
1921515
BOLT 5/16-24 X 3/4 HHCS GR5 (22753)
4
12770
M8 X 1.25 X 40MM HH ZN (22754)
4
8 21640
WASHER M8 SPRLK ZN
4
9
1713200
SPACER .41 X 1.00 X .95 THK STEEL (18493, 22754)
1
3299100
SPACER 406 ID X 1.000 OD X .822 LG (22753)
1
10 22848
SPACER ENGINE R210 (18493, 22754)
2
5
6
3
9
4
7
8
2
10
1
